ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

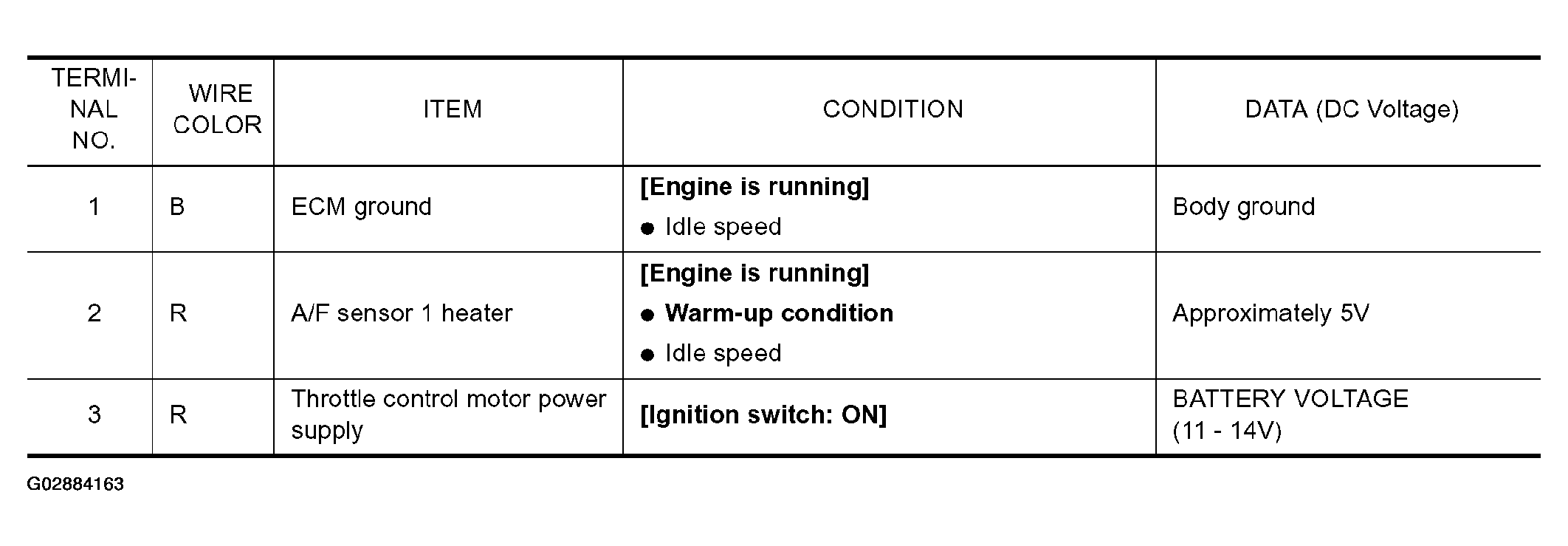

Fig 1: Identifying ECM Inspection Table (1 Of 7)

G02884163

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "ECM Inspection Table (7 Of 7)" for footnote references.

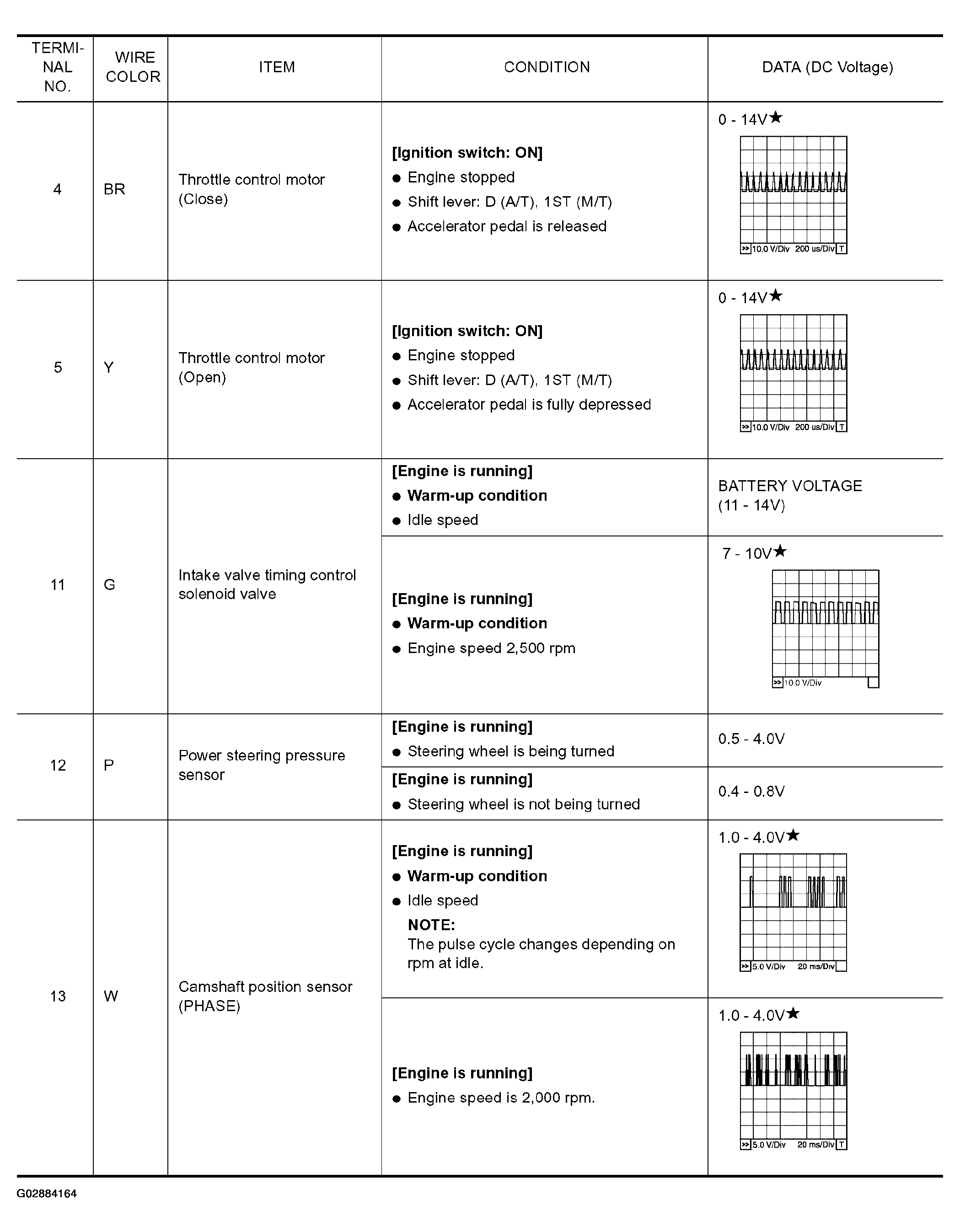

Fig 2: Identifying ECM Inspection Table (2 Of 7)

G02884164

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "ECM Inspection Table (7 Of 7)" for footnote references.

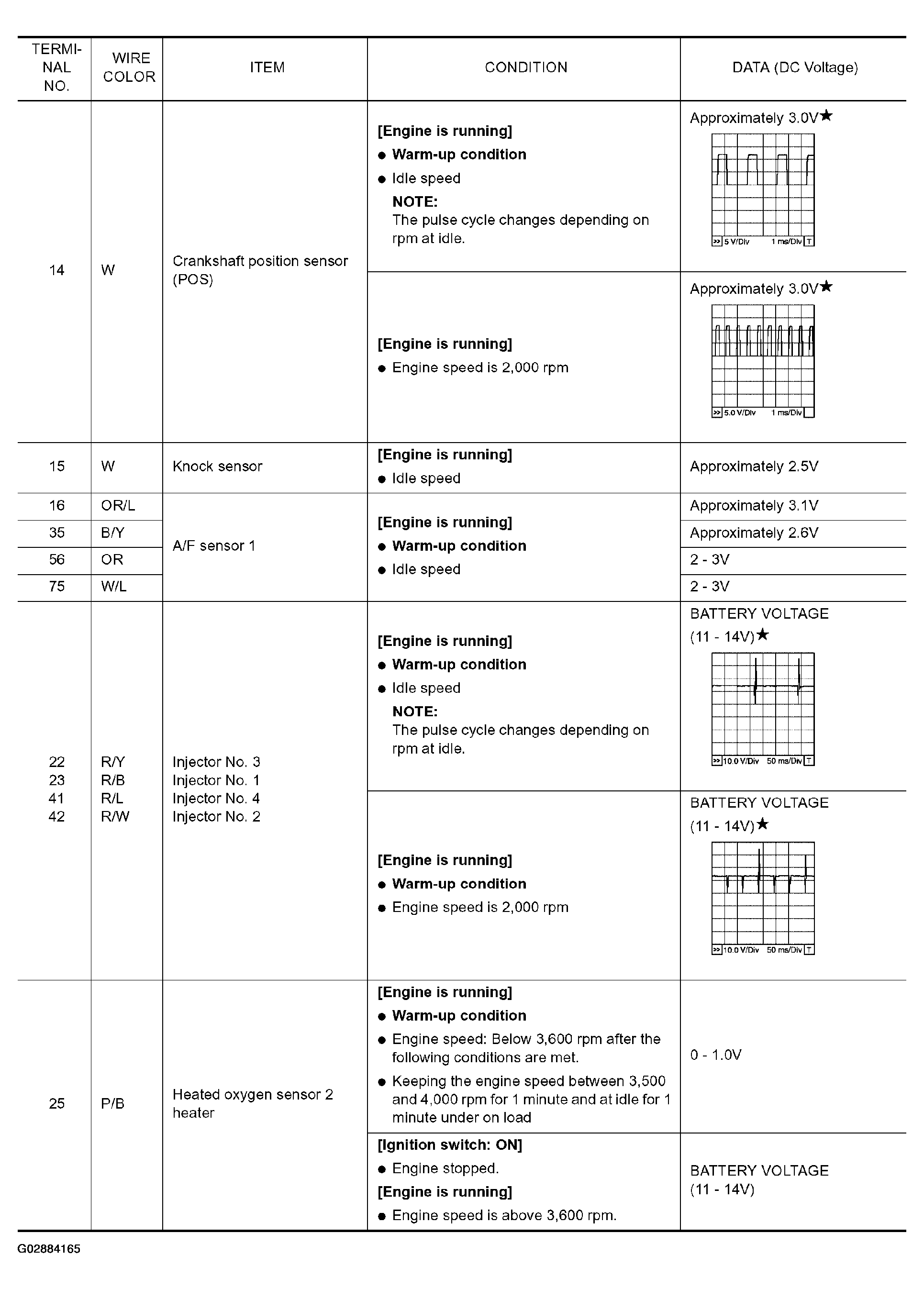

Fig 3: Identifying ECM Inspection Table (3 Of 7)

G02884165

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "ECM Inspection Table (7 Of 7)" for footnote references.

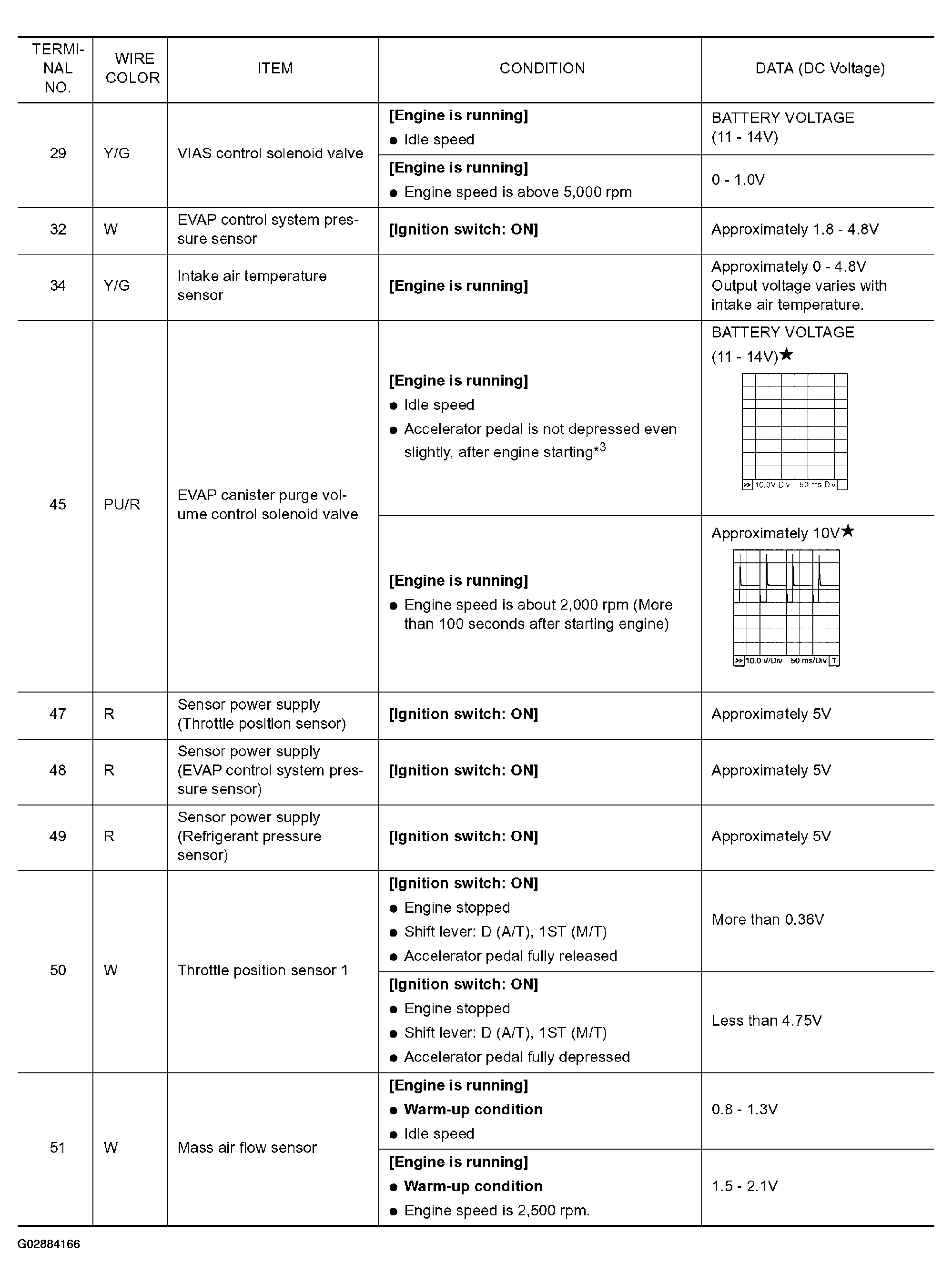

Fig 4: Identifying ECM Inspection Table (4 Of 7)

G02884166

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "ECM Inspection Table (7 Of 7)" for footnote references.

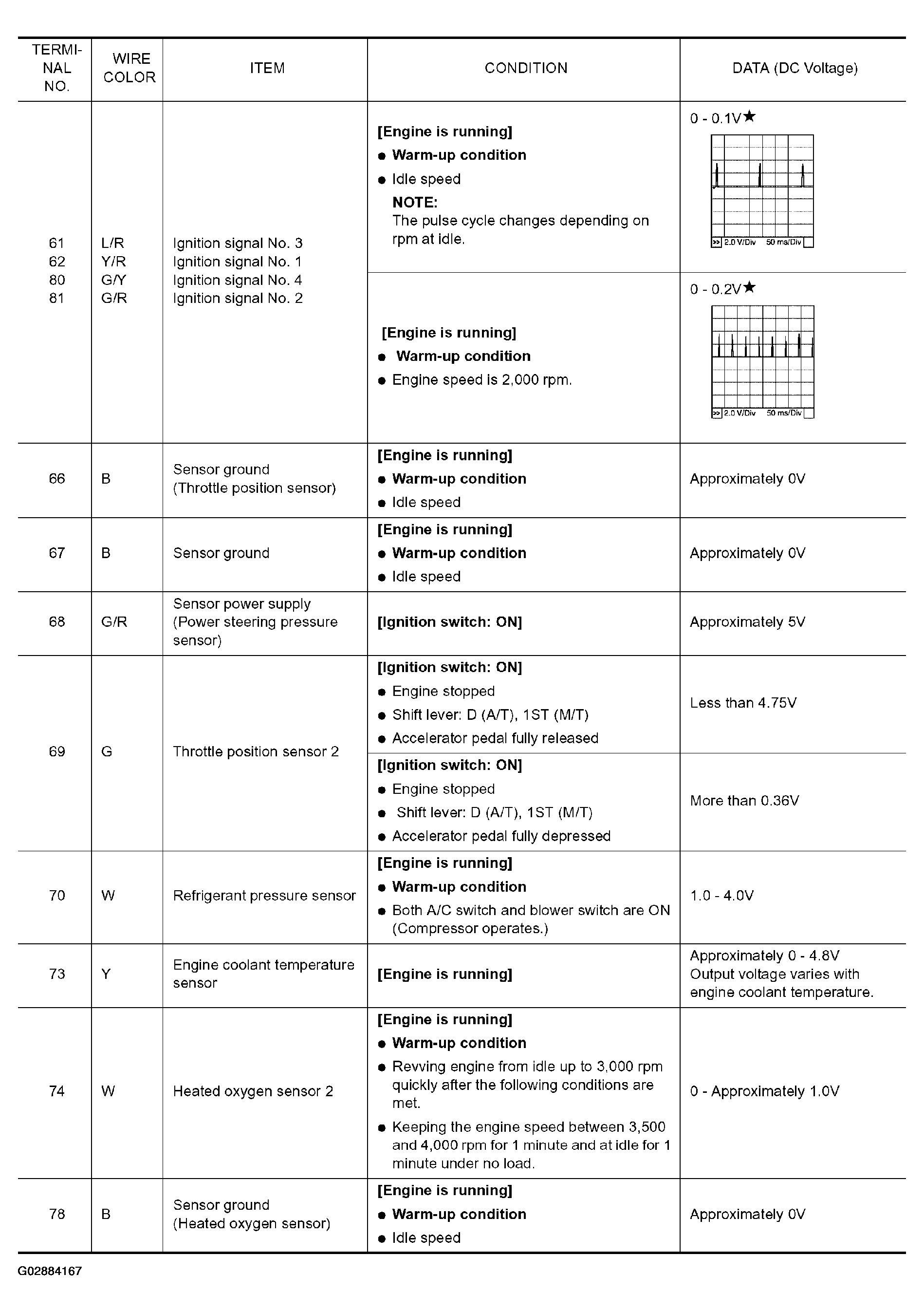

Fig 5: Identifying ECM Inspection Table (5 Of 7)

G02884167

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "ECM Inspection Table (7 Of 7)" for footnote references.

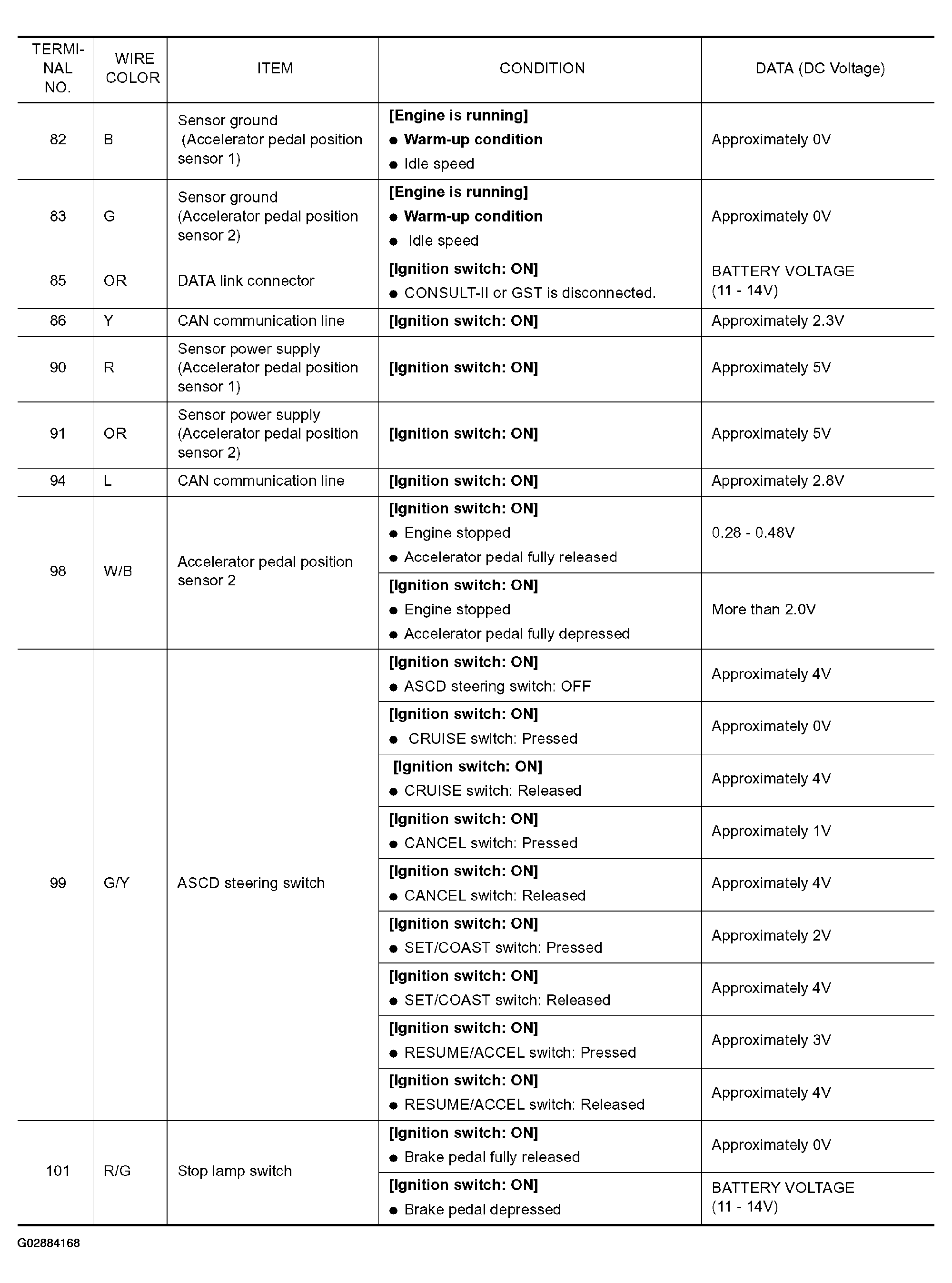

Fig 6: Identifying ECM Inspection Table (6 Of 7)

G02884168

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "ECM Inspection Table (7 Of 7)" for footnote references.

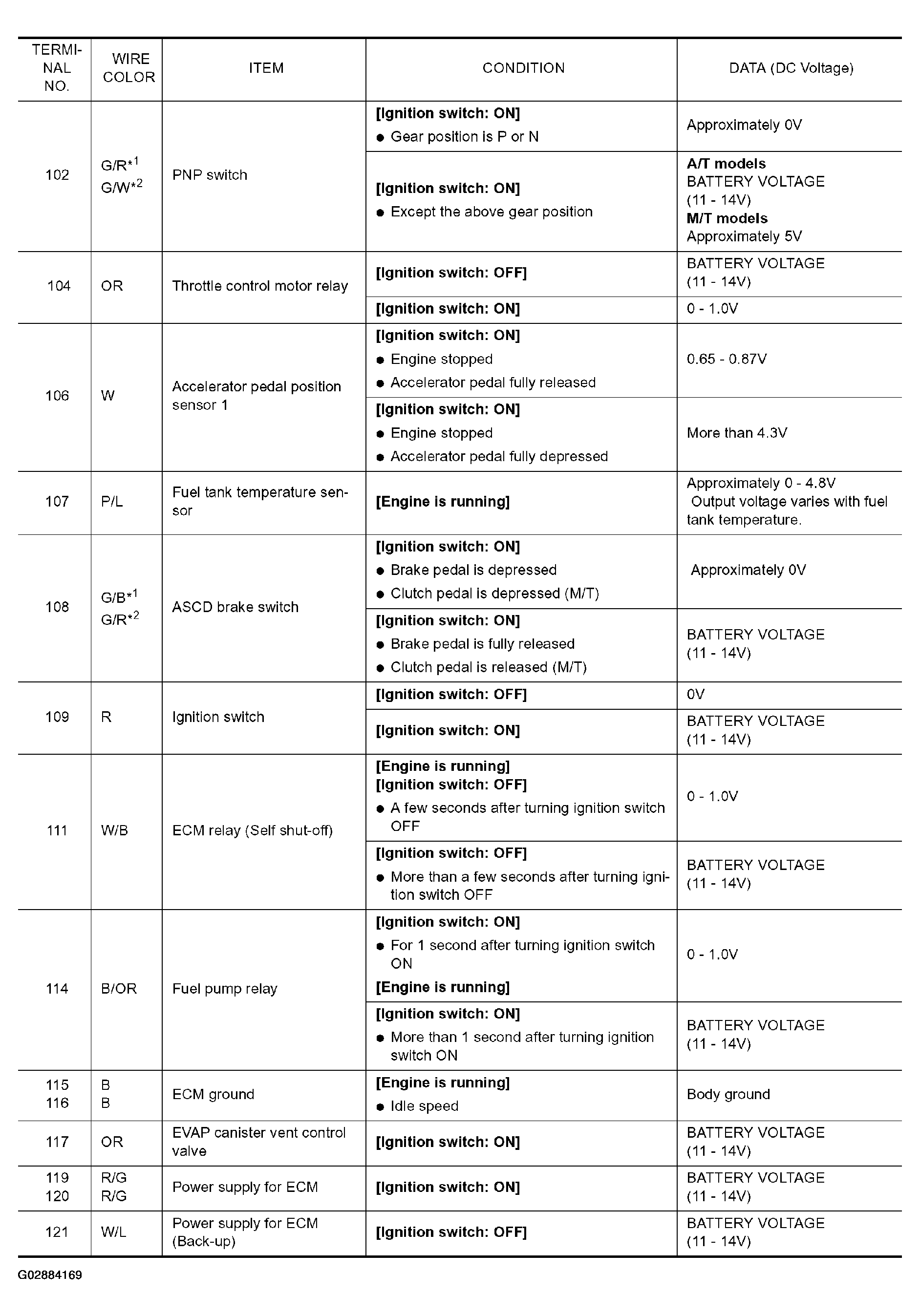

Fig 7: Identifying ECM Inspection Table (7 Of 7)

G02884169

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: ECM Inspection Table footnotes:

*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: A/T models
*2: M/T models
*3: PZEV models
