With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 5 seconds.
  4. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
  5. Turn ignition switch OFF.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

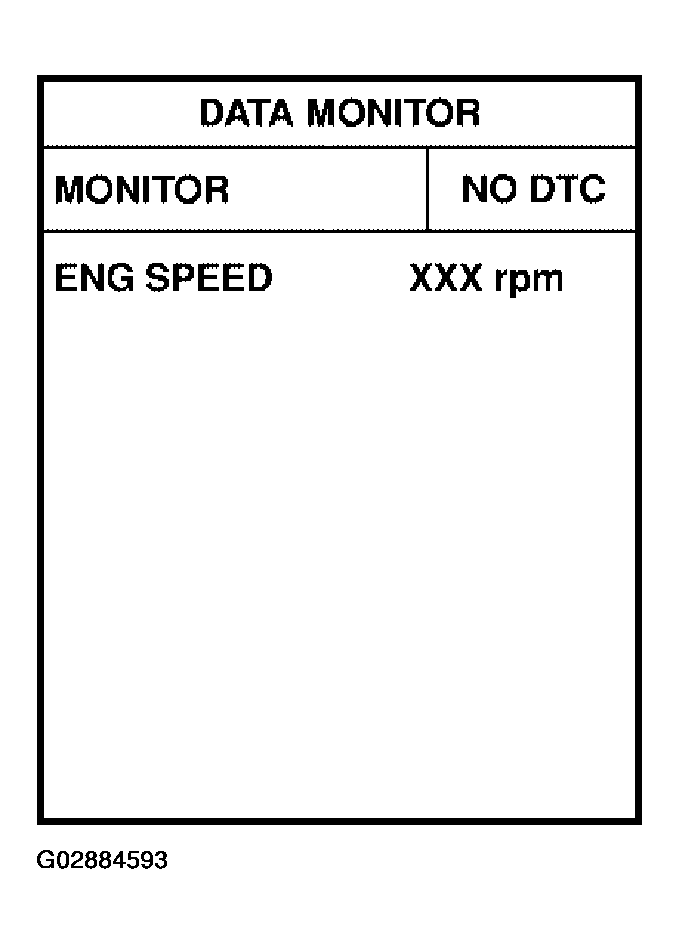

    Fig 1: Display CONSULT II (Data Monitor)
    G02884593Courtesy of NISSAN MOTOR CO., U.S.A.
