ASCD Brake Switch

Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

ASCD BRAKE SWITCH TERMINALS CONTINUITY CONDITIONS

Condition	Continuity
When brake pedal is fully released.	Should exist.
When brake pedal is depressed.	Should not exist.

If NG, adjust ASCD brake switch installation, refer to STOPLIGHT SWITCH & AUTOMATIC SPEED CONTROL DEVICE SWITCH and perform step 3 again (Check continuity...)

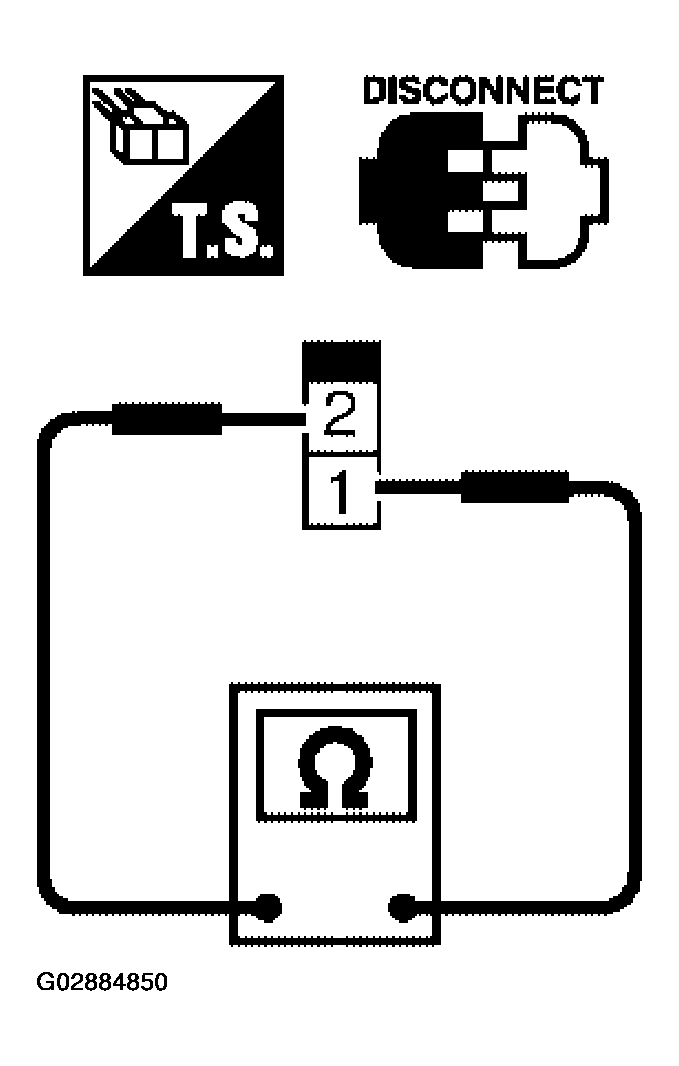

Fig 1: Checking Continuity Between ASCD Brake Switch Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.
