DTC P1706: PNP Switch
>>
Wiring Diagram
>>
At Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
At Models

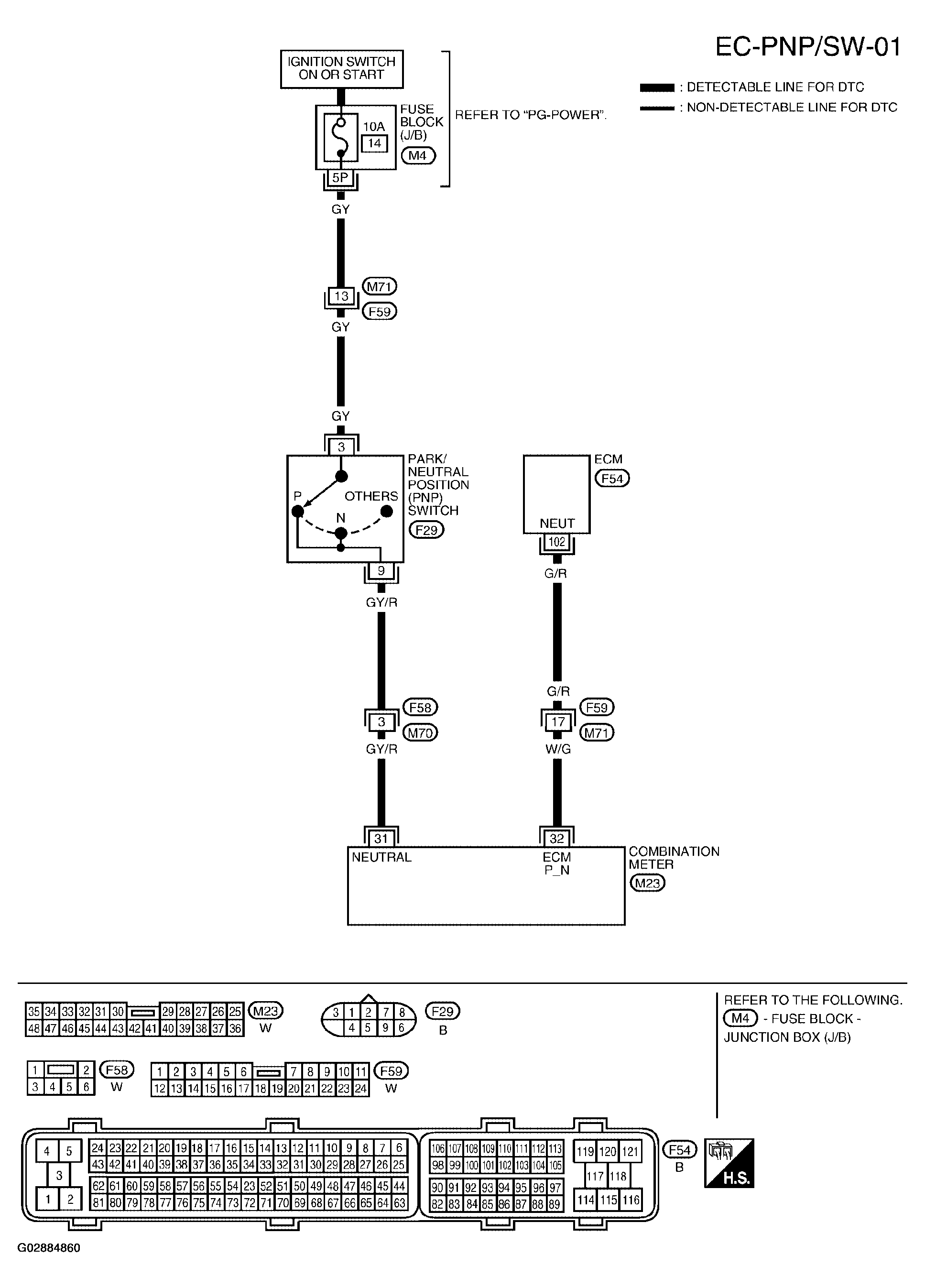

Fig 1: Wiring Diagram - EC-PNP/SW-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
