Input/Output Signal Chart

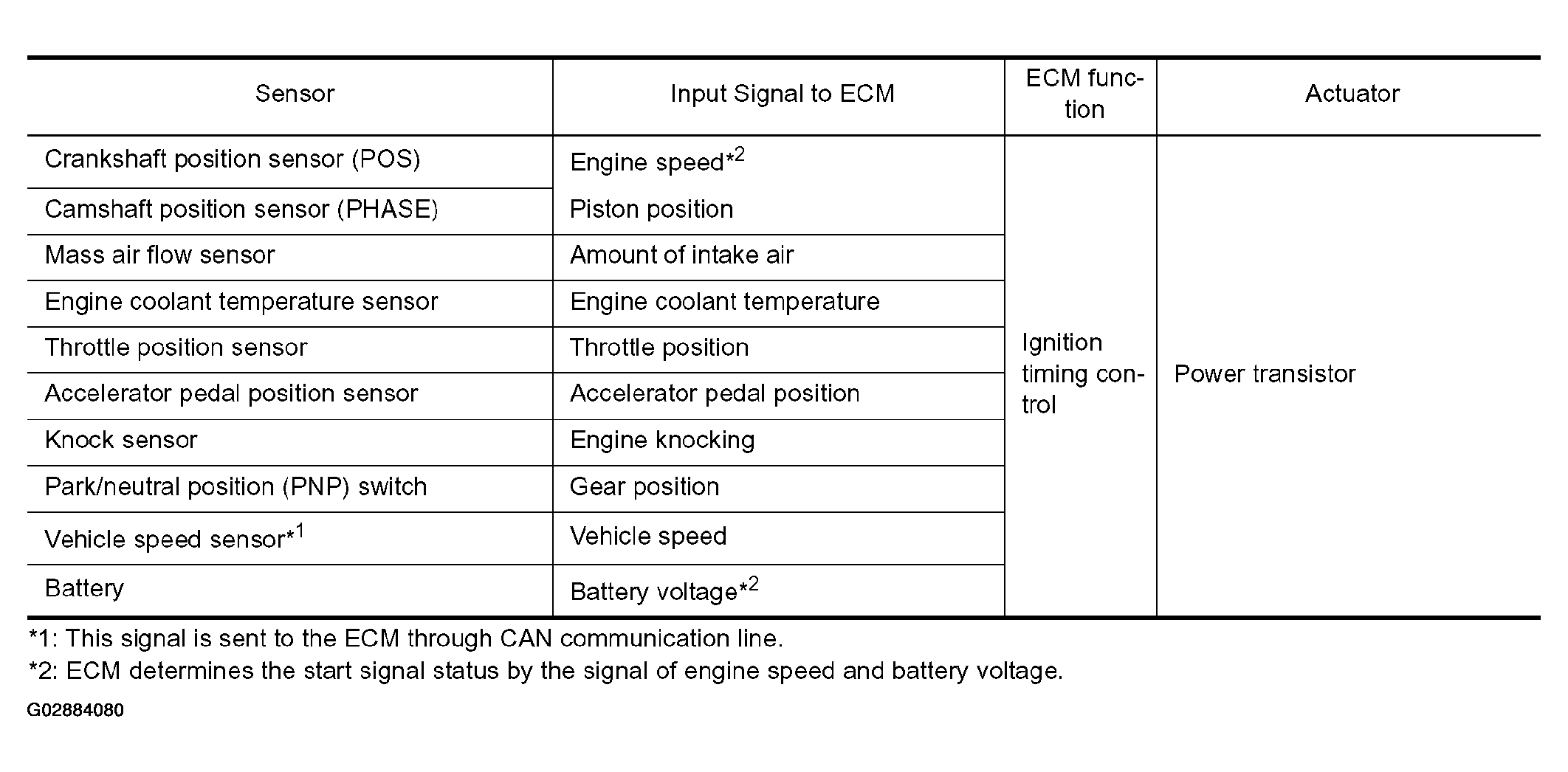

Fig 1: Electronic Ignition (El) System Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
