Engine Control System
>>
System Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Chart

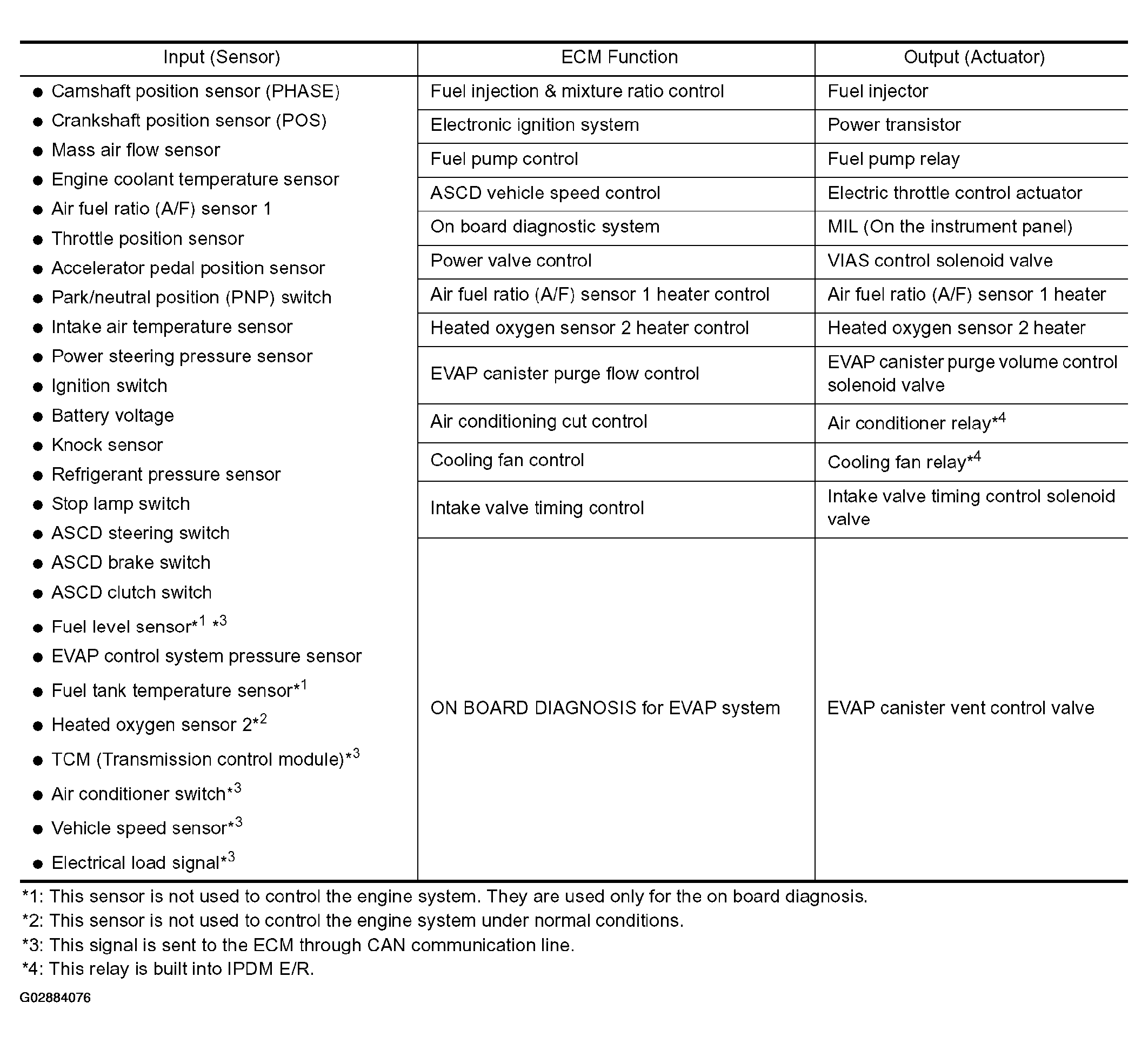

Fig 1: Input/Output System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
