Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.

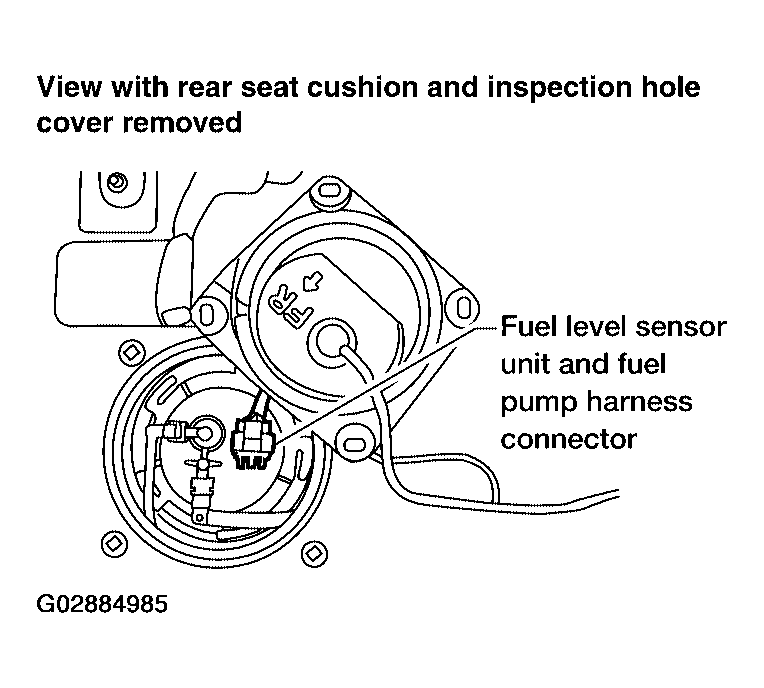

    Fig 1: Disconnecting Fuel Level Sensor Unit & Fuel Pump Harness Connector
    G02884985Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1  and 3  .

    Resistance: 0.2 - 5.0Ω [at 25°C (77°F)]

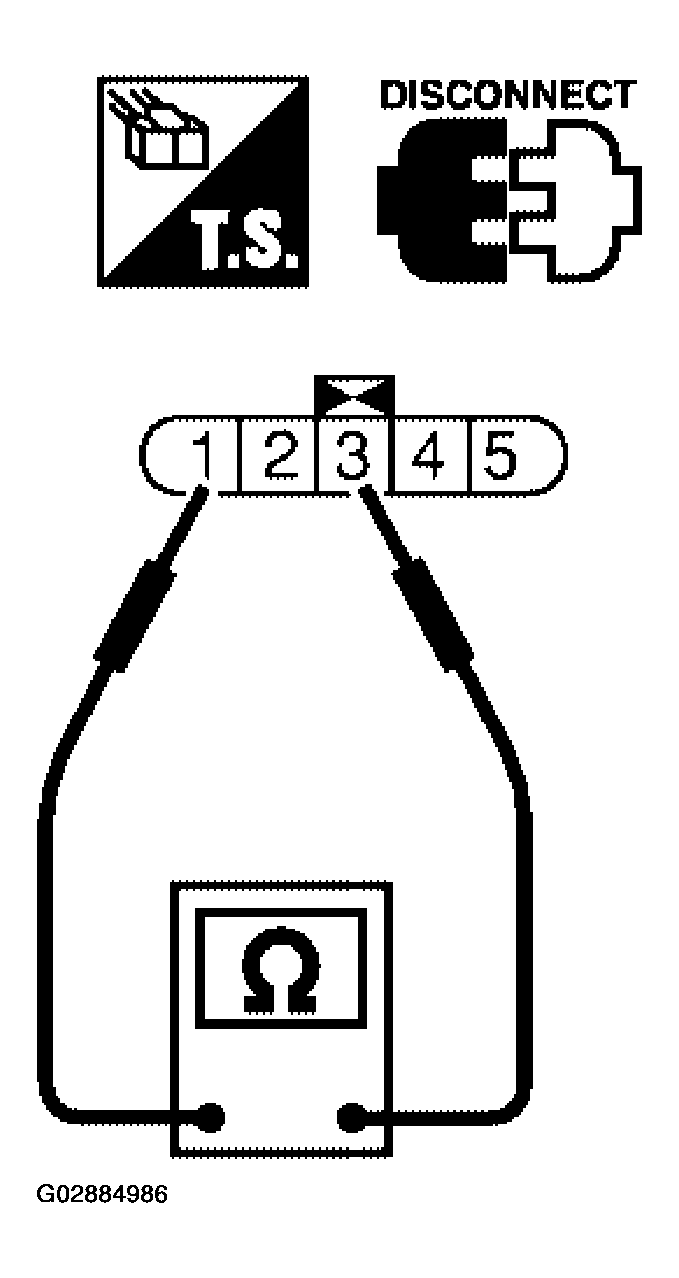

    Fig 2: Checking Resistance Between Fuel Level Sensor Unit & Fuel Pump Terminals 1 & 3
    G02884986Courtesy of NISSAN MOTOR CO., U.S.A.
