Alphabetical Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. refer to "DTC U1000, U1001: CAN COMMUNICATION LINE DTC U1000, U1001 CAN COMMUNICATION LINE".

x: Applicable -: Not applicable

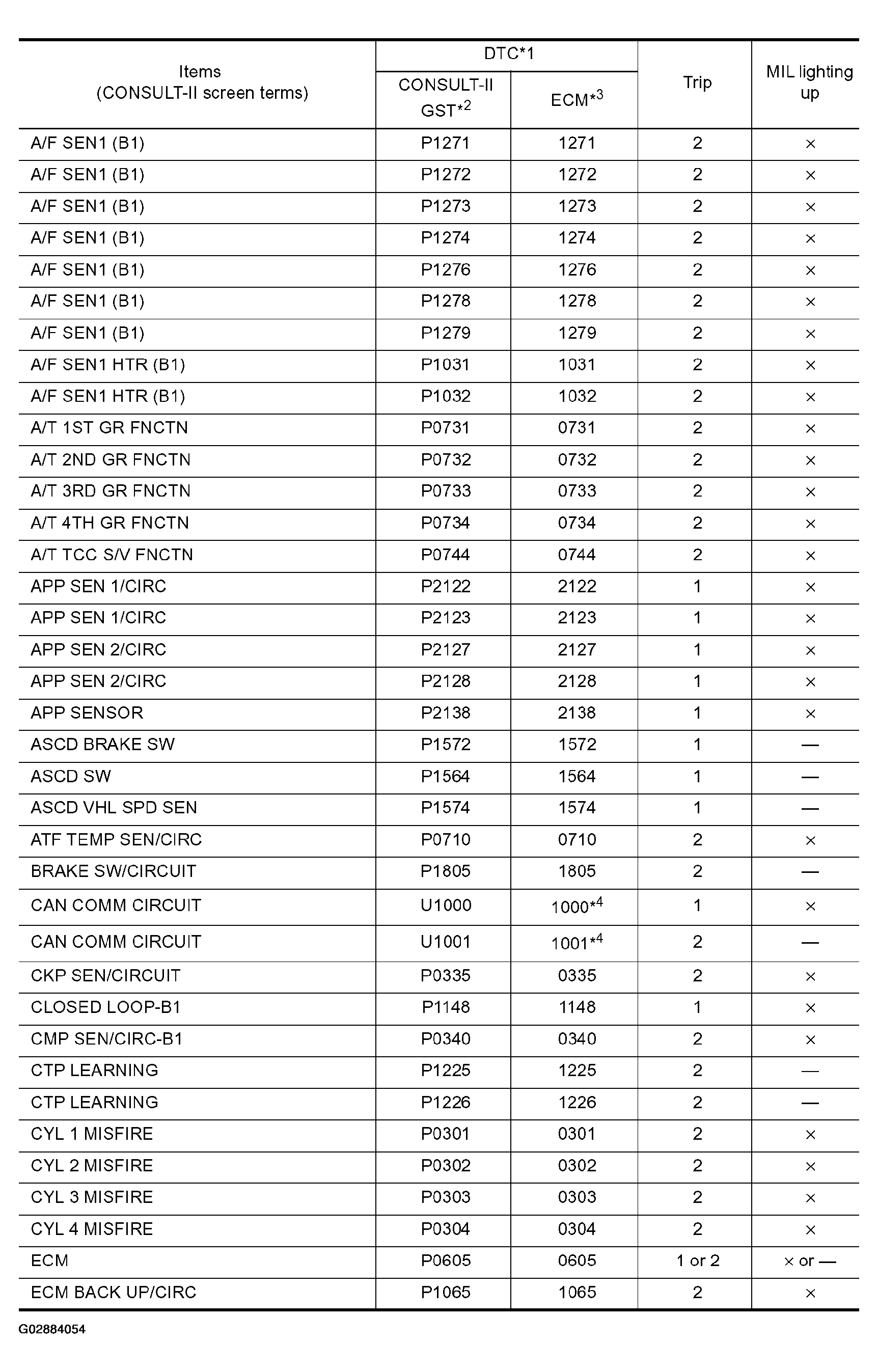

Fig 1: DTC Alphabetical Index (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "DTC Alphabetical Index (3 Of 3)" for footnote references.

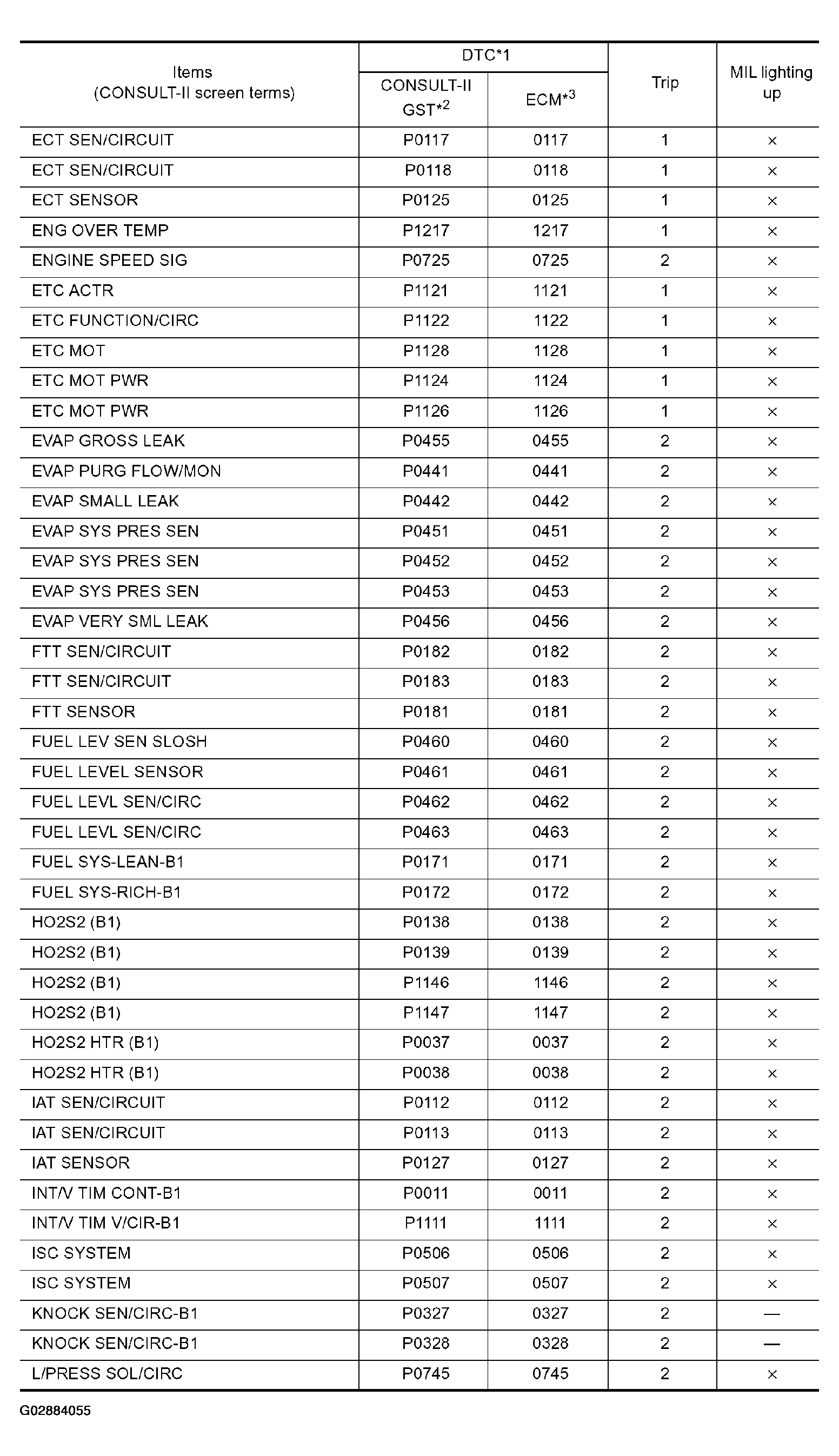

Fig 2: DTC Alphabetical Index (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "DTC Alphabetical Index (3 Of 3)" for footnote references.

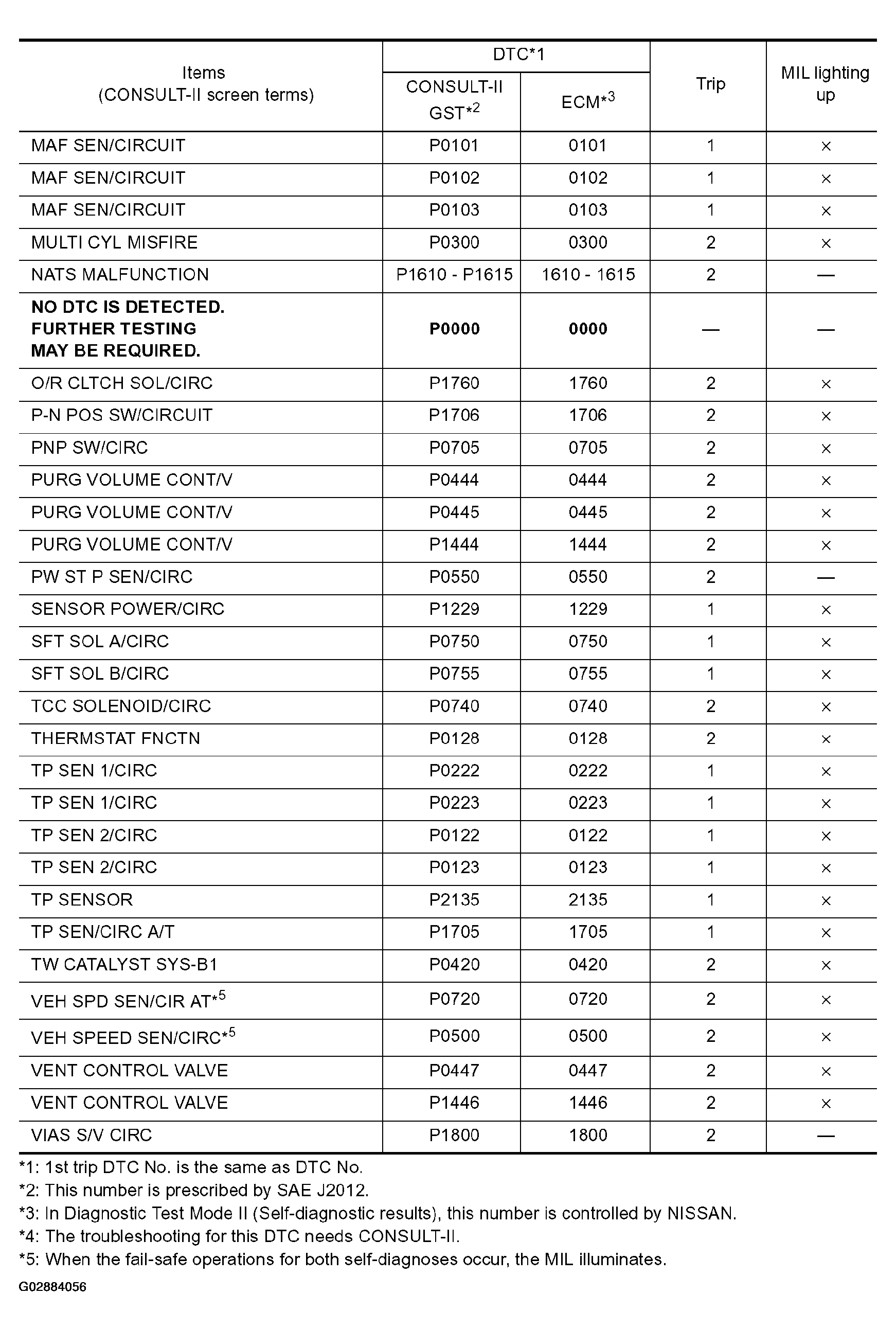

Fig 3: DTC Alphabetical Index (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
