Engine Control Component Parts/Control Systems Application

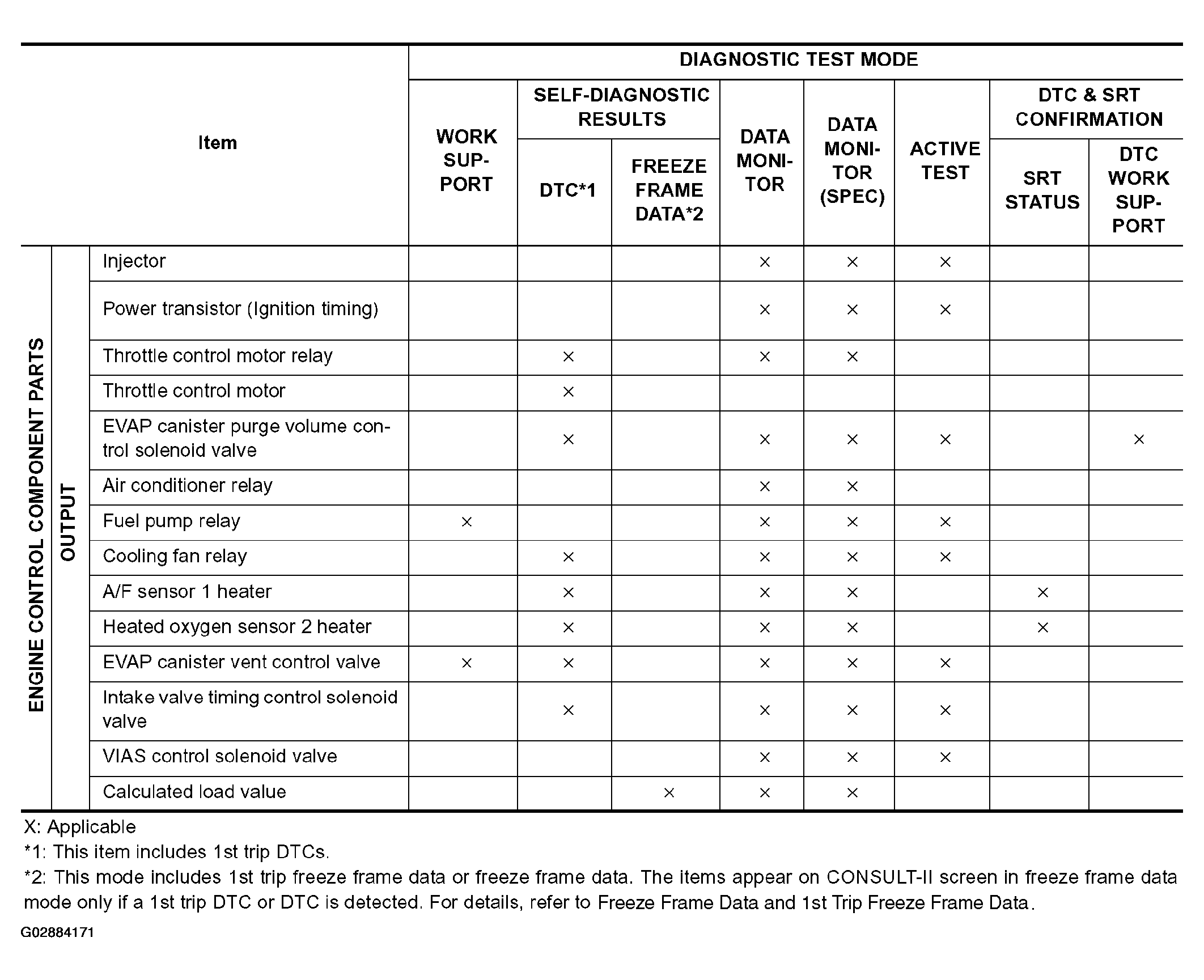

Fig 1: Engine Control Component Parts/Control Systems Application (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "Component Parts/Application Table (2 Of 2)" for footnote references.

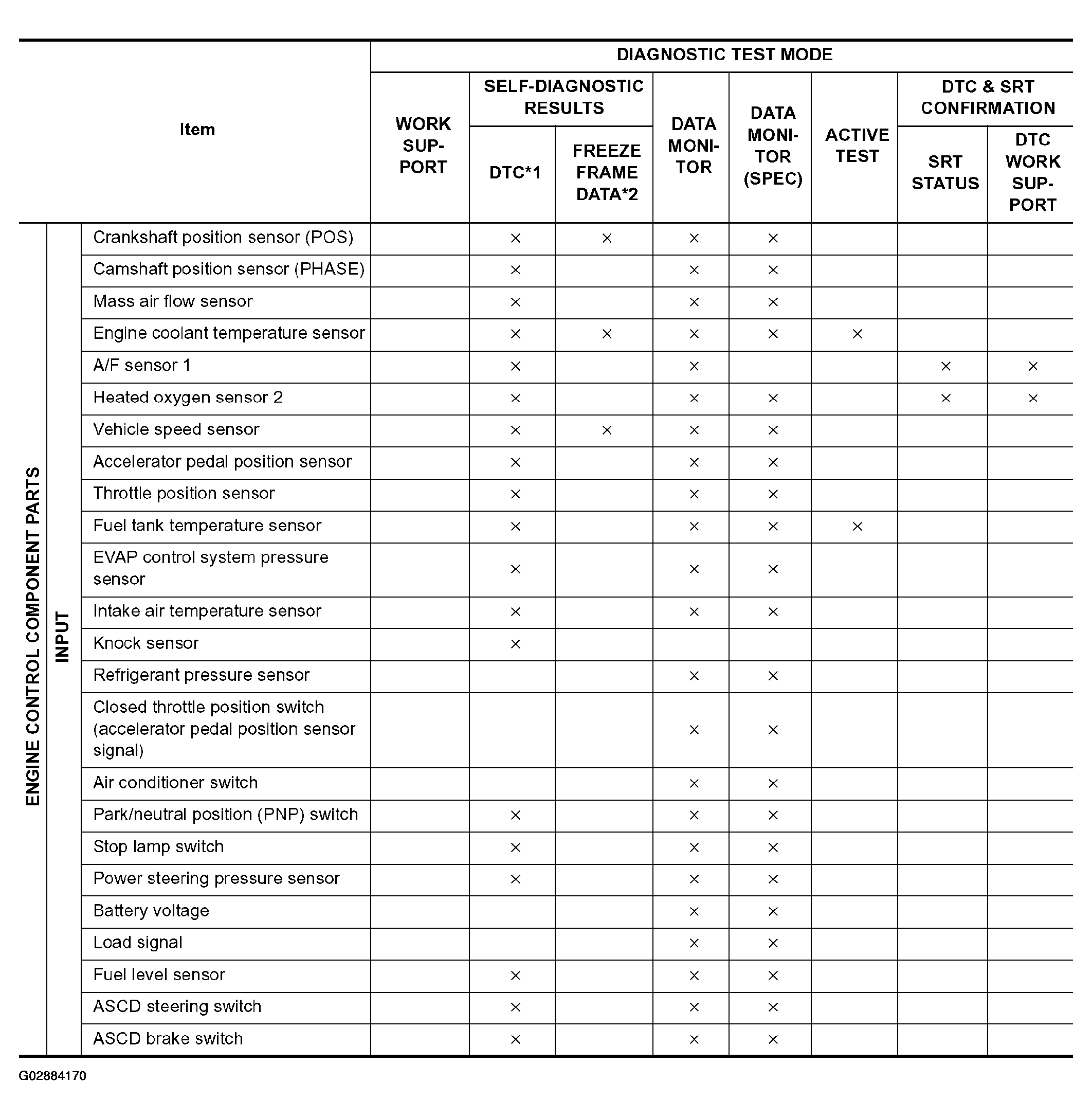

Fig 2: Engine Control Component Parts/Control Systems Application (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: 1st trip freeze frame data or freeze frame data. or details, refer to HOW TO READ DTC AND 1ST TRIP DTC .
