Generic Scan Tool (GST) Function: Function

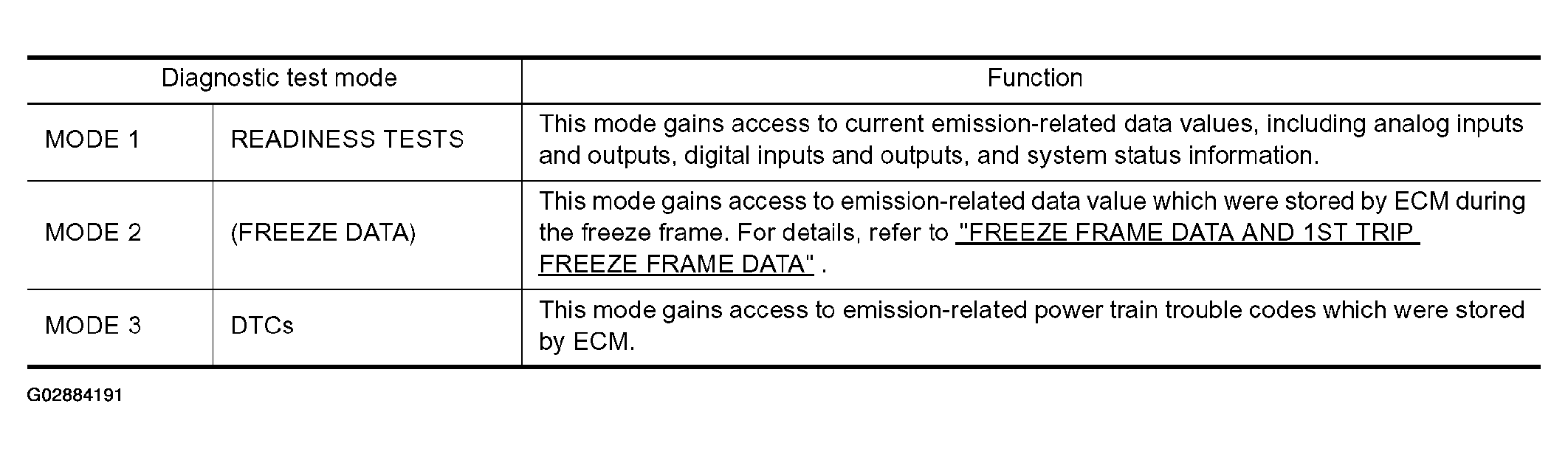

Fig 1: Diagnostic Test Mode Function Chart (1 Of 2)
G02884191Courtesy of NISSAN MOTOR CO., U.S.A.

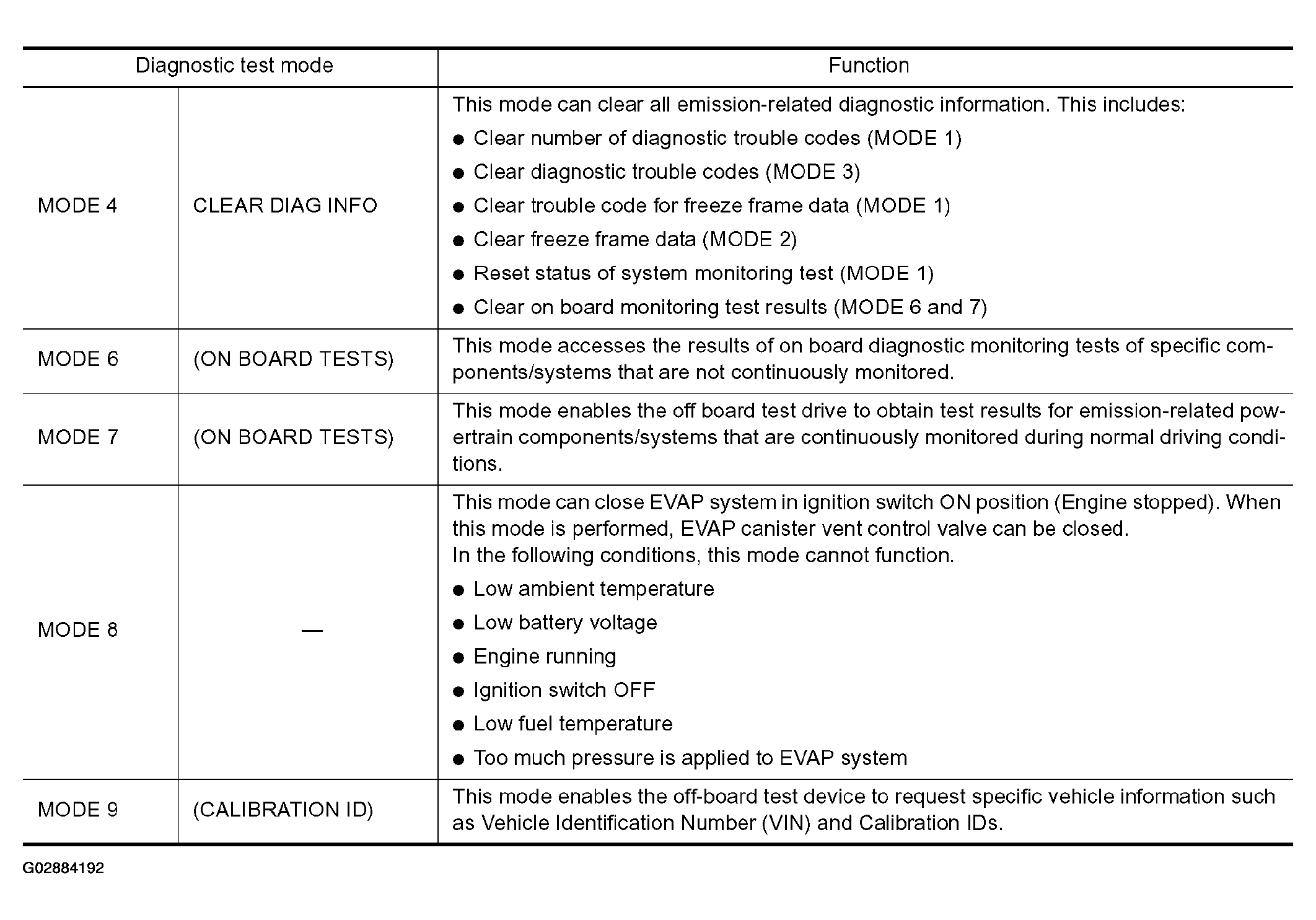

Fig 2: Diagnostic Test Mode Function Chart (2 Of 2)
G02884192Courtesy of NISSAN MOTOR CO., U.S.A.
