System - Basic Engine Control System

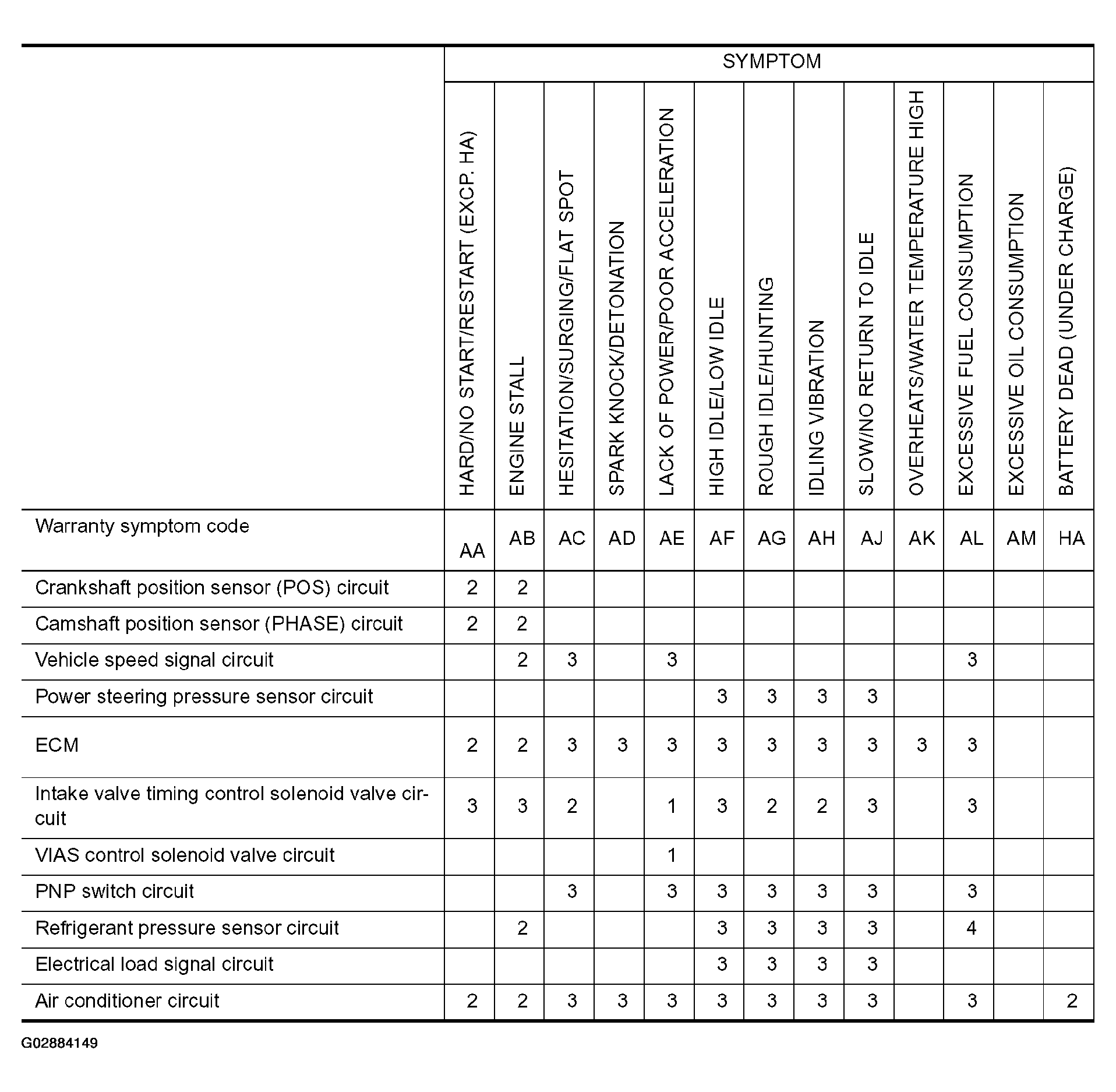

Fig 1: Symptom Matrix Chart - System - Basic Engine Control System (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: 1 - 6: The numbers refer to the order of inspection.

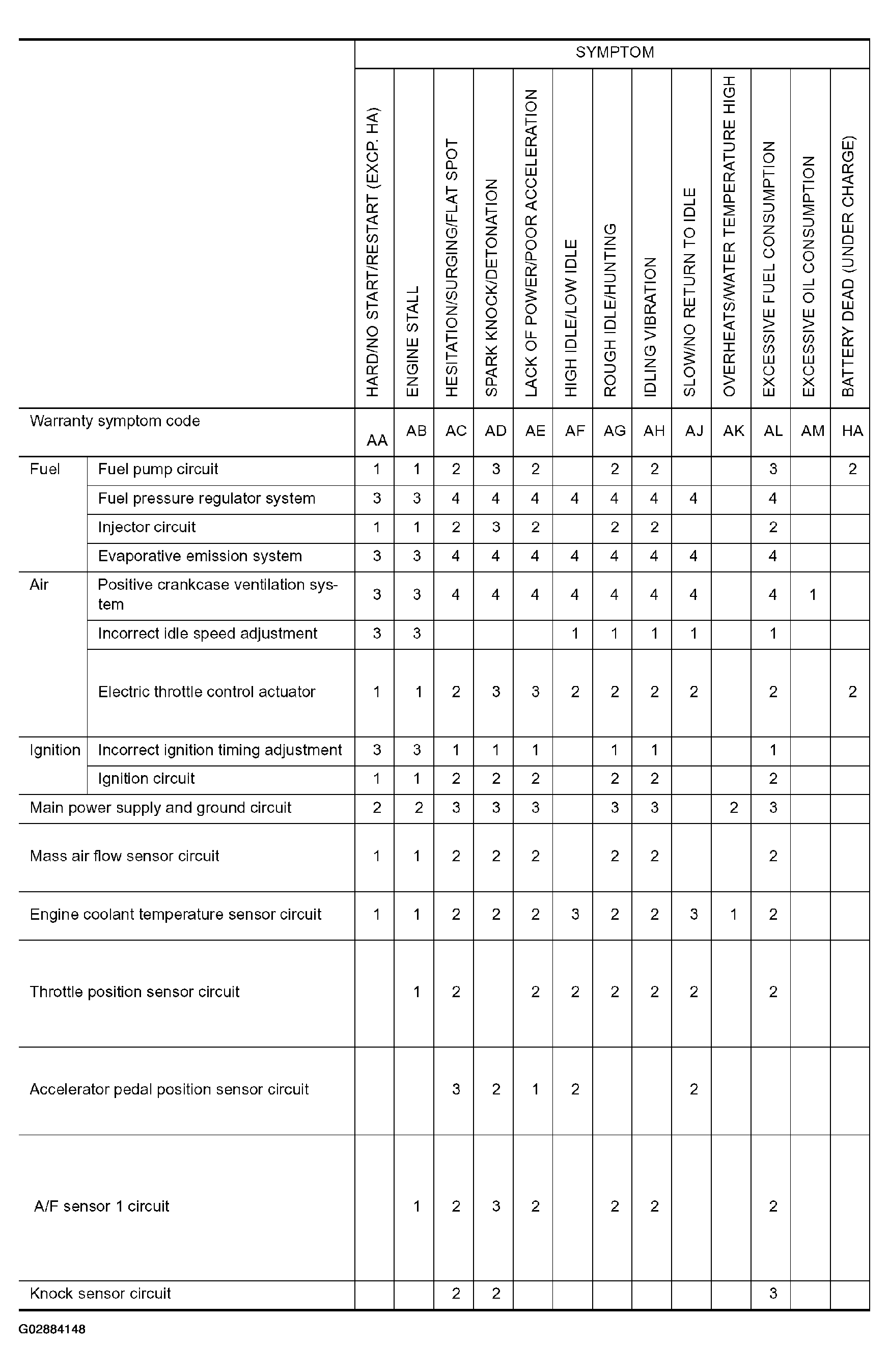

Fig 2: Symptom Matrix Chart - System - Basic Engine Control System (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: 1 - 6: The numbers refer to the order of inspection.
