Flow Chart

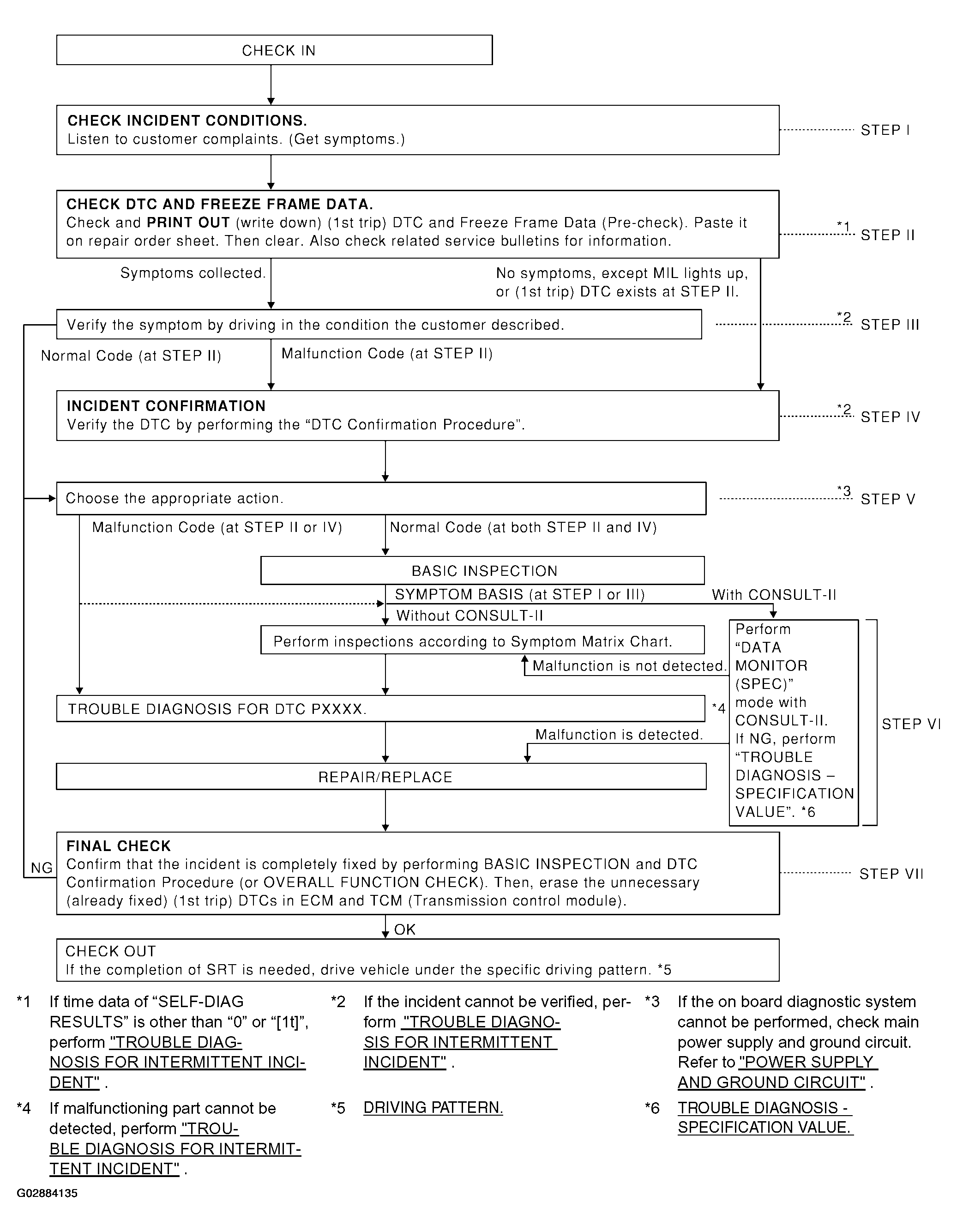

Fig 1: Work Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Work Flow Chart footnotes:

*1: If time data of "SELF-DIAG RESULTS" is other than "0" or "[1t]", perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
*2: If the incident cannot be verified, perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
*3: If the on board diagnostic system cannot be performed, check main power supply and ground circuit. Refer to "POWER SUPPLY AND GROUND CIRCUIT ".
*4: If malfunctioning part cannot be detected, perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
*5: DRIVING PATTERN .
*6: TROUBLE DIAGNOSIS - SPECIFICATION VALUE .
