Operation Procedure

CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect the CONSULT-II connector to the data link connector and start the engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START" on the display.
  3. Touch "ABS" and "ACTIVE TEST".

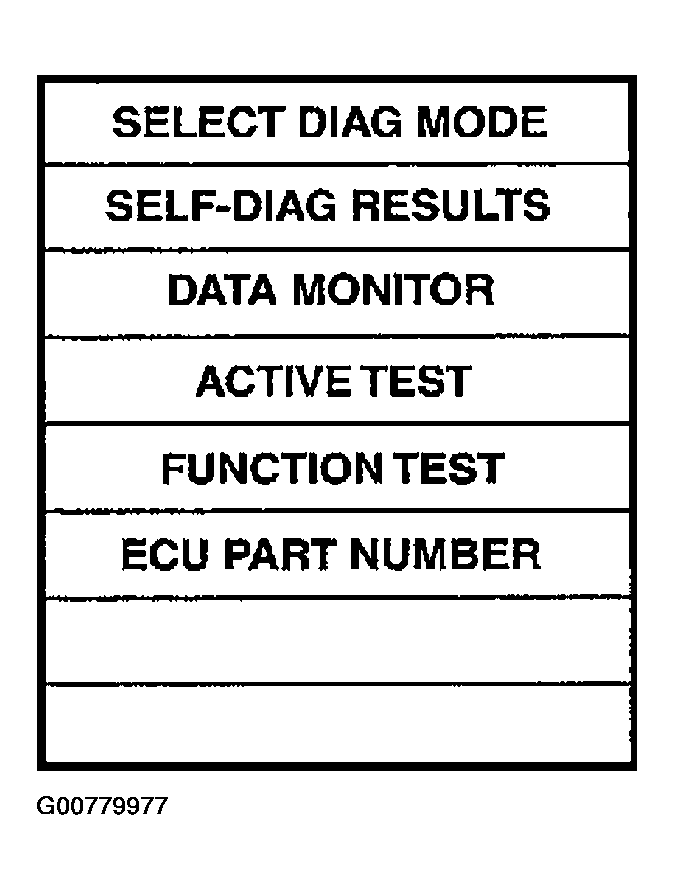

    Fig 1: Display CONSULT-II SELECT DIAGNOSIS MODE Screen
    G00779977Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.
  5. Touch necessary test item.
  6. Touch "START".
  7. Carry out the active test by touching screen key.

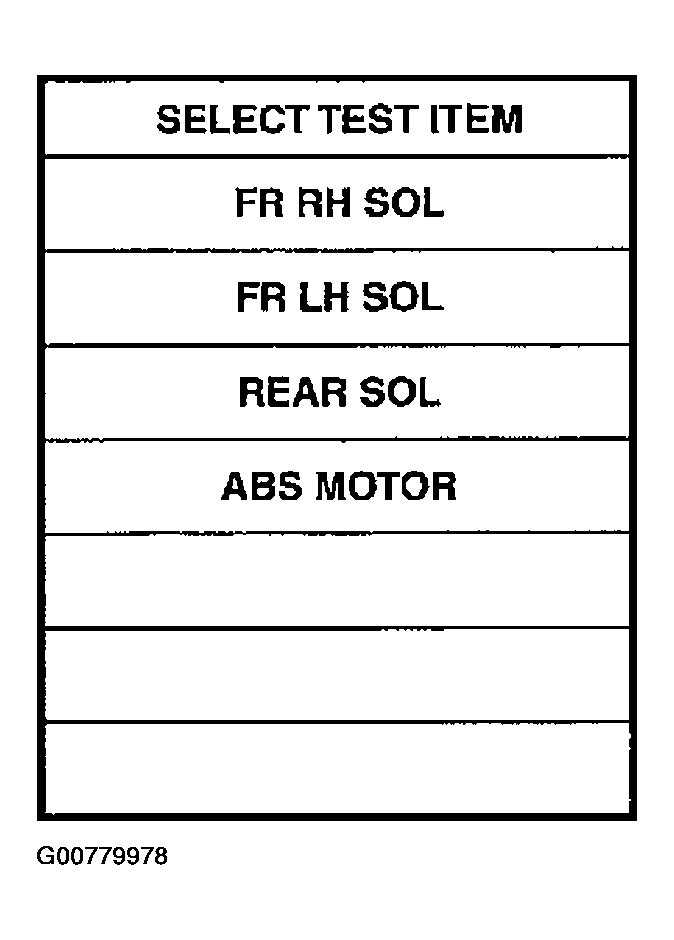

Fig 2: Display CONSULT-II SELECT TEST ITEM Screen
G00779978Courtesy of NISSAN MOTOR CO., U.S.A.
