Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  3. Turn ignition switch ON.
  4. Touch "START" on display.

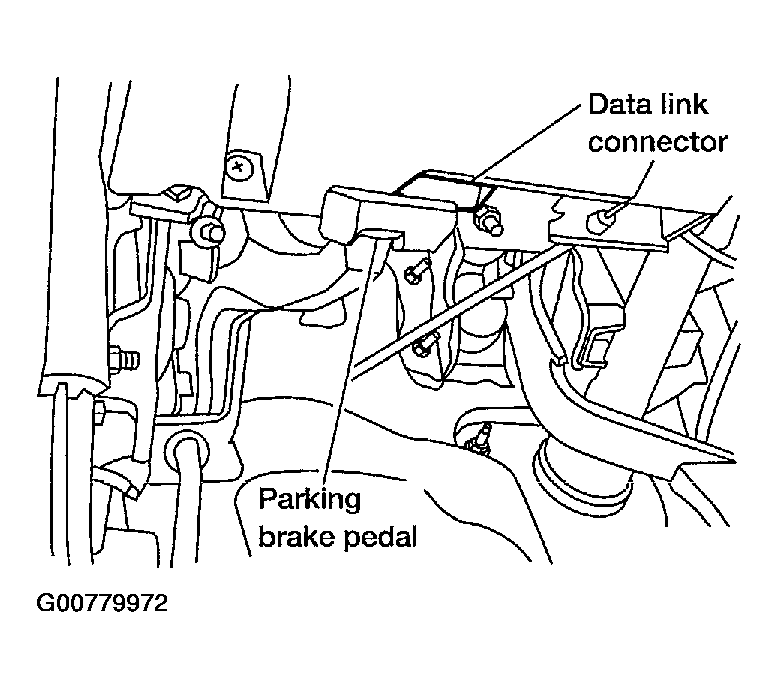

    Fig 1: Identifying Data Link Connector And Parking Brake Pedal
    G00779972Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS" on display.

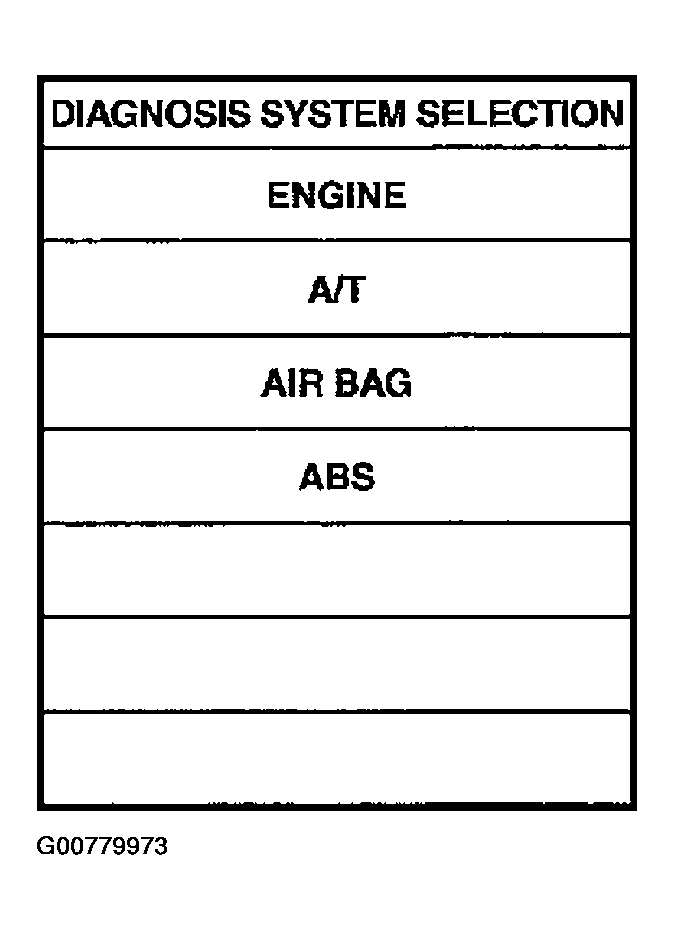

    Fig 2: Display CONSULT-II DIAGNOSIS SYSTEM SELECTION Screen
    G00779973Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

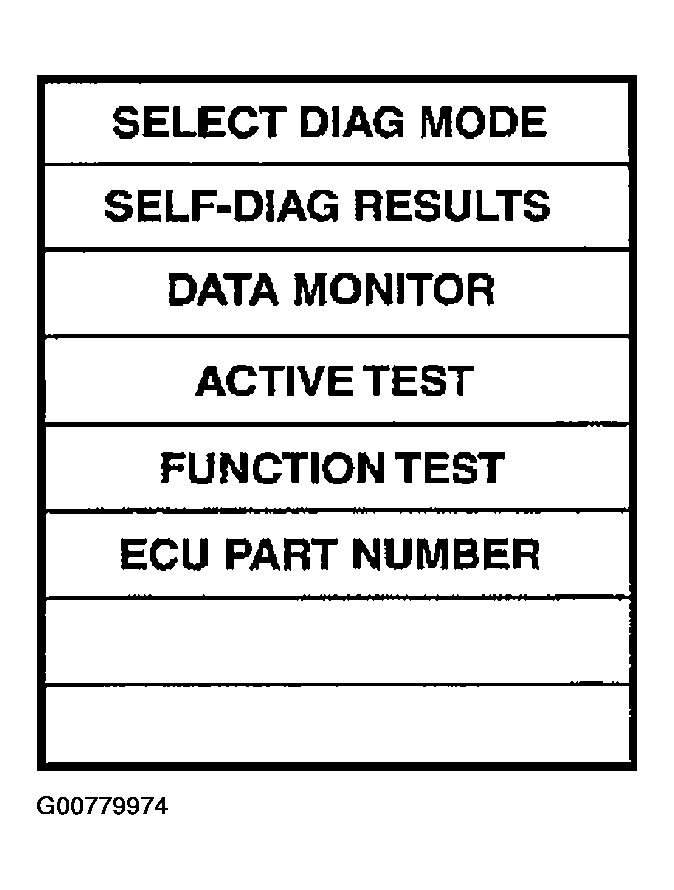

    Fig 3: Display CONSULT-II SELECT DIAGNOSIS MODE Screen
    G00779974Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Return to monitor item selection screen and touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU". Refer to DISPLAY ITEM LIST .
  8. Touch "START".
  9. Screen of data monitor is displayed.

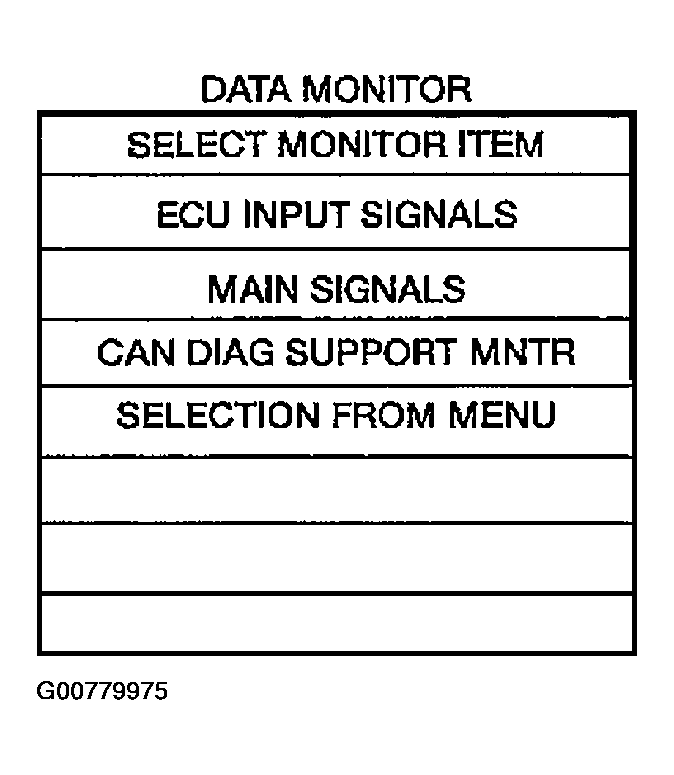

Fig 4: Display CONSULT-II DATA MONITOR Screen
G00779975Courtesy of NISSAN MOTOR CO., U.S.A.
