Mass Air Flow Sensor
- Turn ignition switch ON.
- Start engine and warm it up to normal operating temperature.

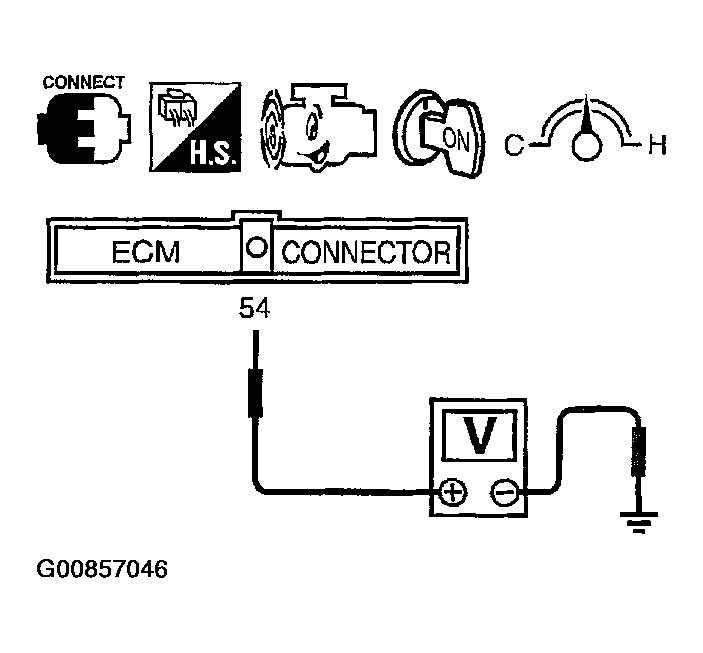

- Check voltage between ECM terminal 54 (mass air flow sensor signal) and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.

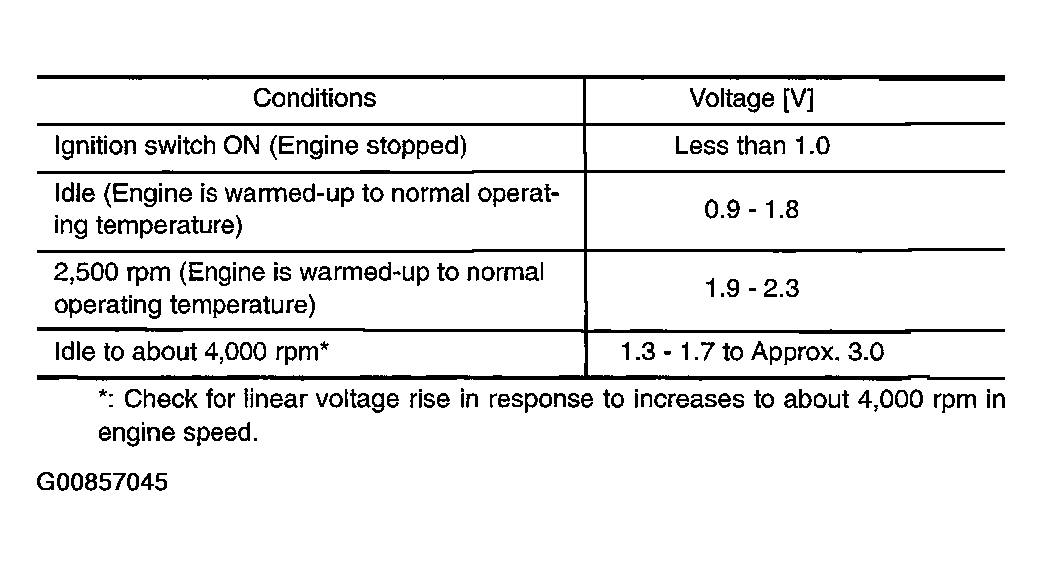

- If the voltage is out of specification, disconnect mass air flow sensor harness connector and connect it again. Repeat above check.
- If NG, remove mass air flow sensor from air duct. Check hot wire for damage or dust.
Courtesy of NISSAN MOTOR CO., U.S.A.
