With CONSULT-II

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 5 seconds.
Turn ignition switch ON.
Select "MANU TRIG" in "DATA MONITOR" mode with CONSULT-II.

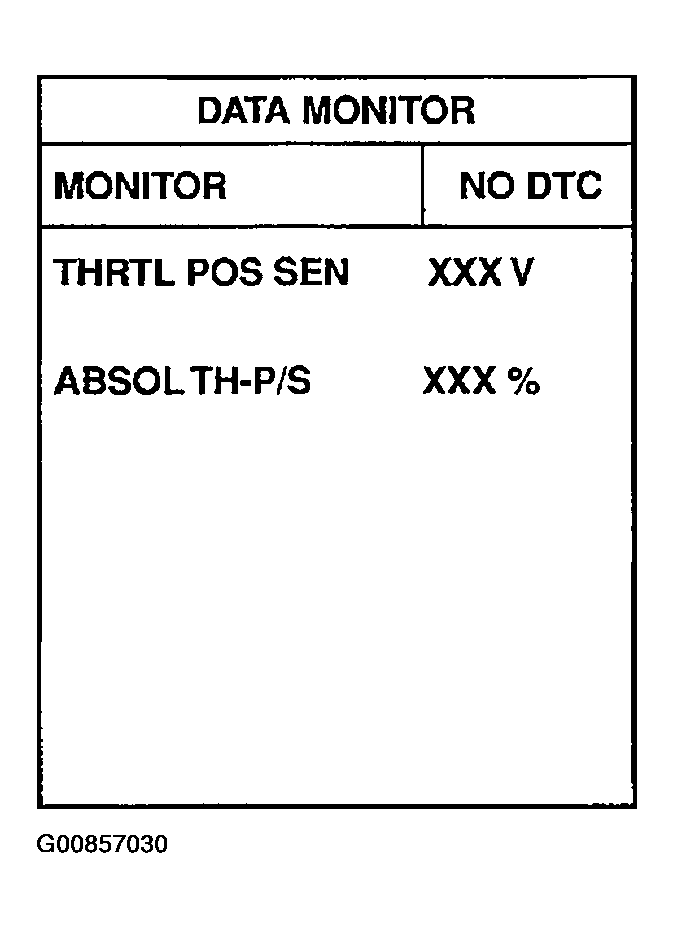

Select "THRTL POS SEN" and "ABSOL TH.P/S" in "DATA MONITOR" mode with CONSULT-II.

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Press RECORD on CONSULT-II screen at the same time accelerator pedal is depressed.

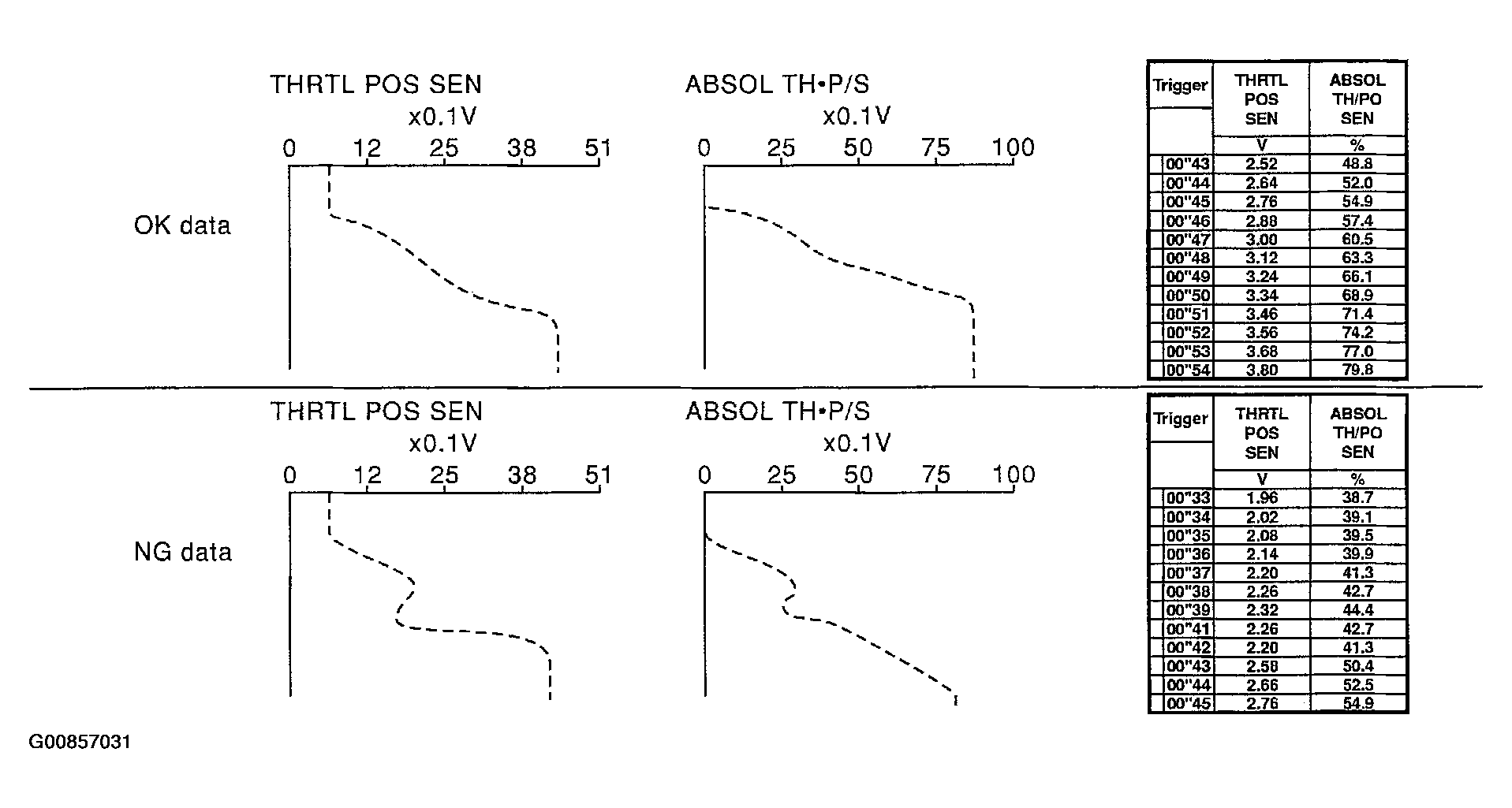

Print out the recorded graph and check the following:
- The voltage rise is linear in response to accelerator pedal depression.
- The voltage when accelerator pedal is fully depressed is approximately 4V.
  If NG, go to DIAGNOSTIC PROCEDURE .

  If OK, go to following step.
Fig 2: Voltage Graph
Courtesy of NISSAN MOTOR CO., U.S.A.

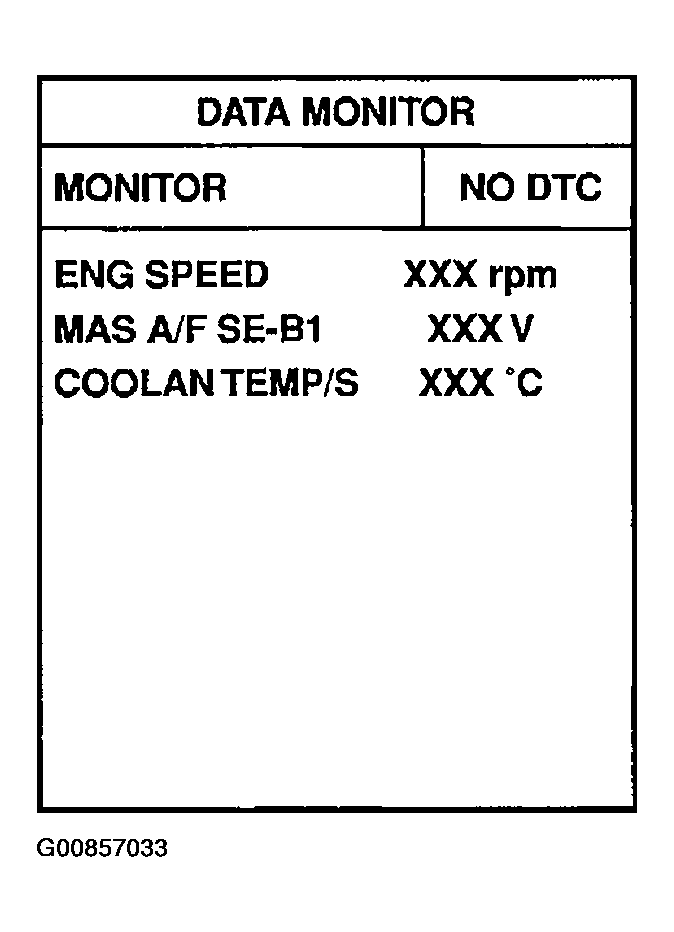

Select "AUTO TRIG" in "DATA MONITOR" mode with CONSULT-II.

Fig 3: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

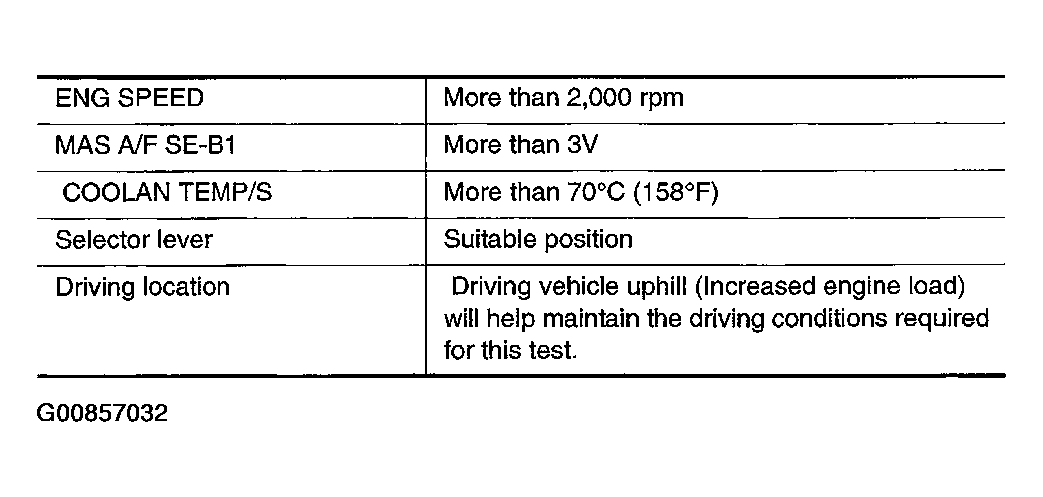

Maintain the following conditions for at least 10 consecutive seconds.

Fig 4: ENG Speed Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
