Engine Coolant Temperature Sensor

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

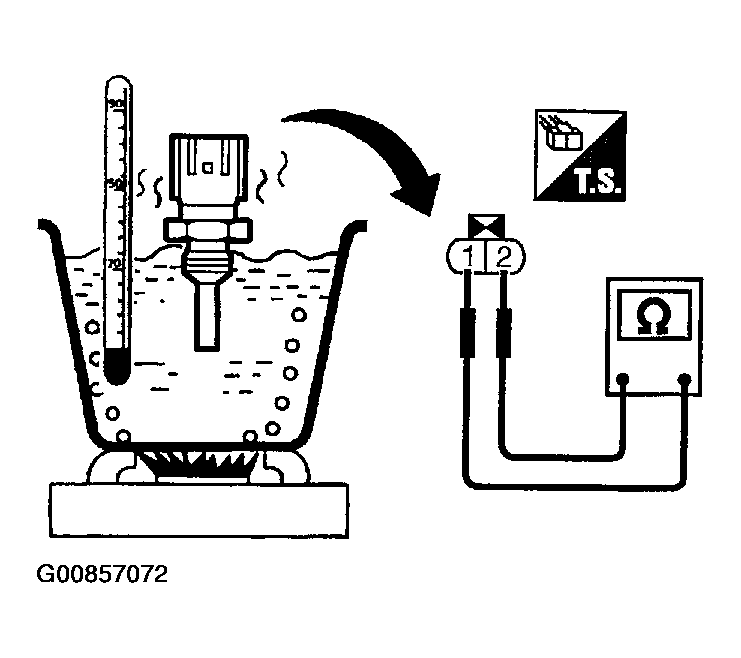

Fig 1: Checking Resistance Between Engine Coolant Temperature Sensor Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

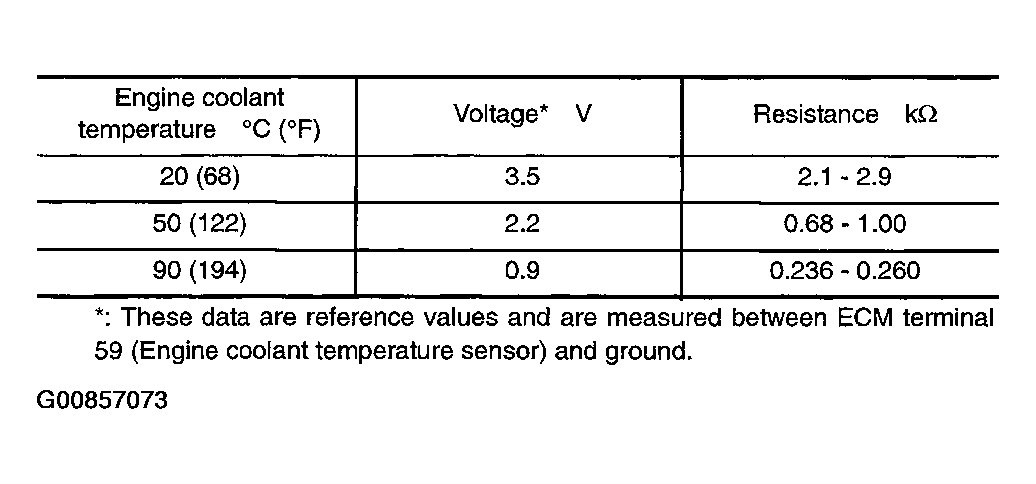

Fig 2: Voltage Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace engine coolant temperature sensor.

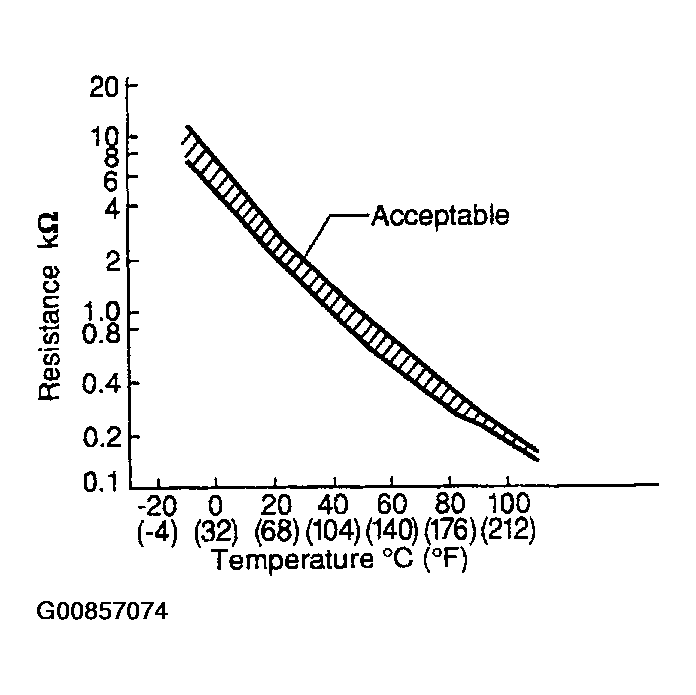

Fig 3: Resistance Vs Temperature Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
