With Consult-II

Start engine and warm it up to normal operating temperature.
Stop engine and wait at least 5 seconds.
Turn ignition switch ON and select "HO2S1 (B1) P0133" of "HO2S1" IN "DTC WORK SUPPORT" mode with CONSULT-II.
Touch "START".
Start engine and let it idle for at least 3 minutes.
NOTE: Never raise engine speed above 3,600 RPM after this step. If the engine speed limit is exceeded, return to step 5.

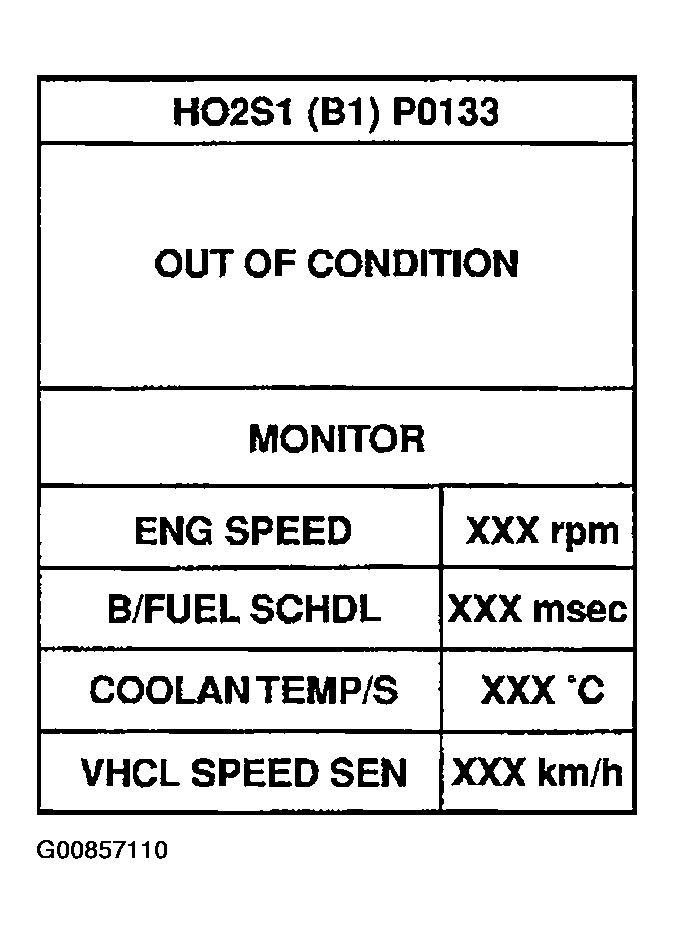

Fig 1: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.

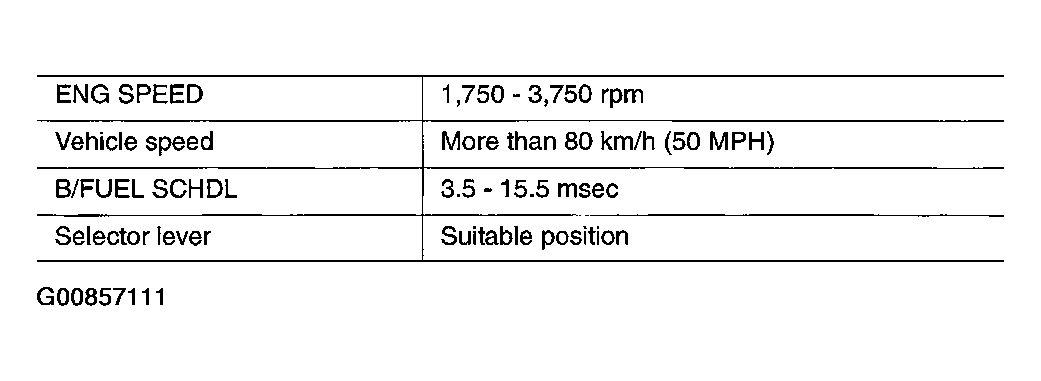

Fig 2: ENG Speed Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 40 to 50 seconds.)

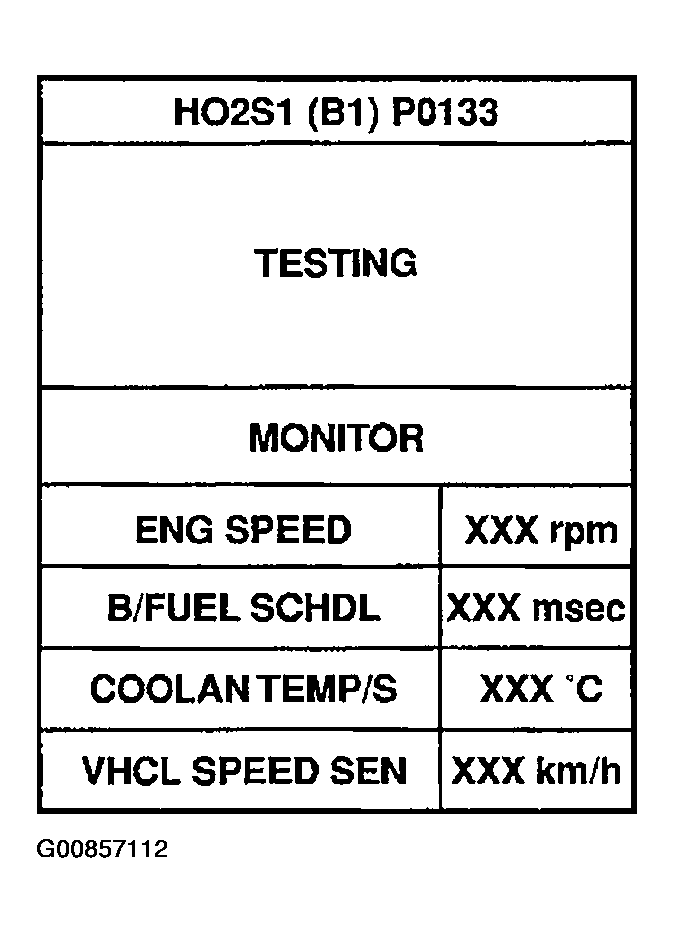

Fig 3: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.

If "TESTING" is not displayed after 5 minutes, retry from step 2 .
Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .

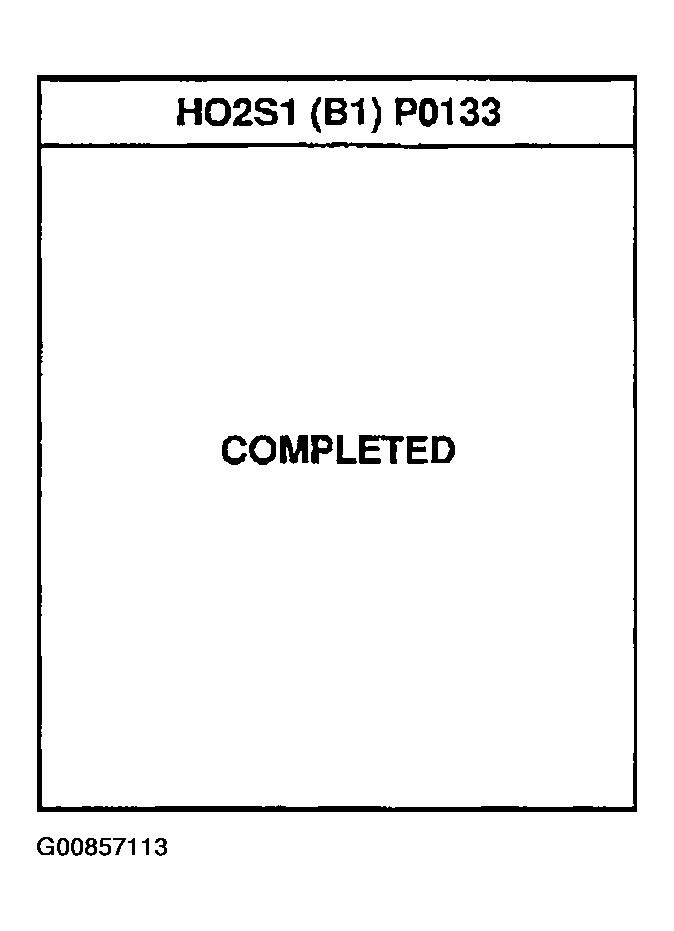

Fig 4: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
