With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

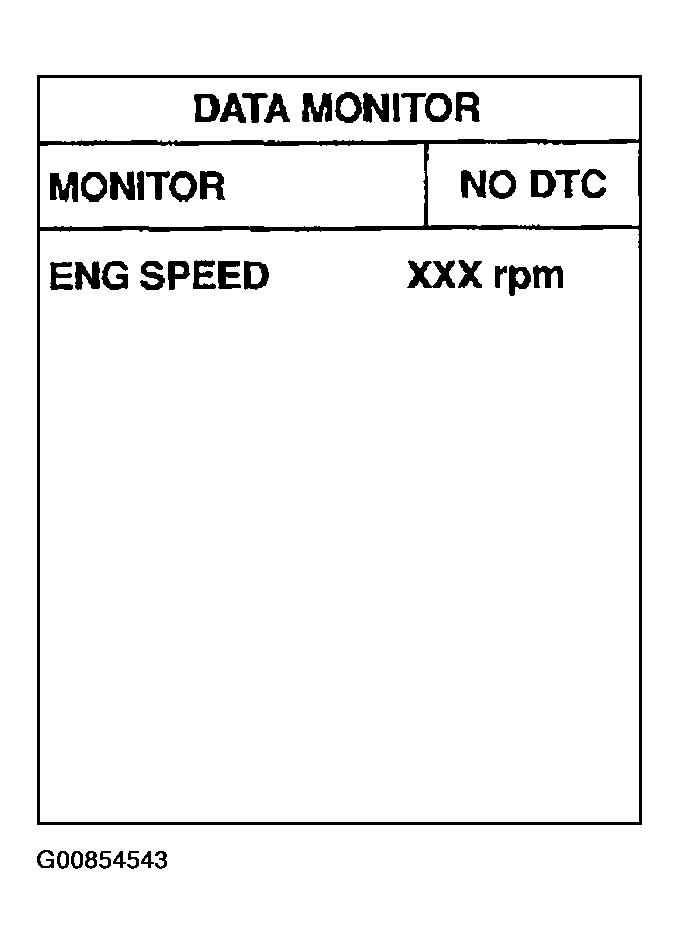

    Fig 1: Scan Tool Display - Data Monitor
    G00854543Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Crank engine for at least 2 seconds.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
