With Consult-II

Turn ignition switch ON.
Check "COOLAN TEMP/S" in "DATA MONITOR" mode with CONSULT-II and confirm it is within the range listed below.
COOLAN TEMP/S : Less than 40°C (104°F)

If the value is out of range, park the vehicle in a cool place and allow the engine temperature to stabilize. Do not attempt to lower the coolant temperature with a fan or means other than ambient air. Doing so may produce an inaccurate diagnostic result.
Start engine and let it idle monitoring "COOLAN TEMP/S" value.
When the "COOLAN TEMP/S" value reaches 70°C (158°F), immediately go to the next step.

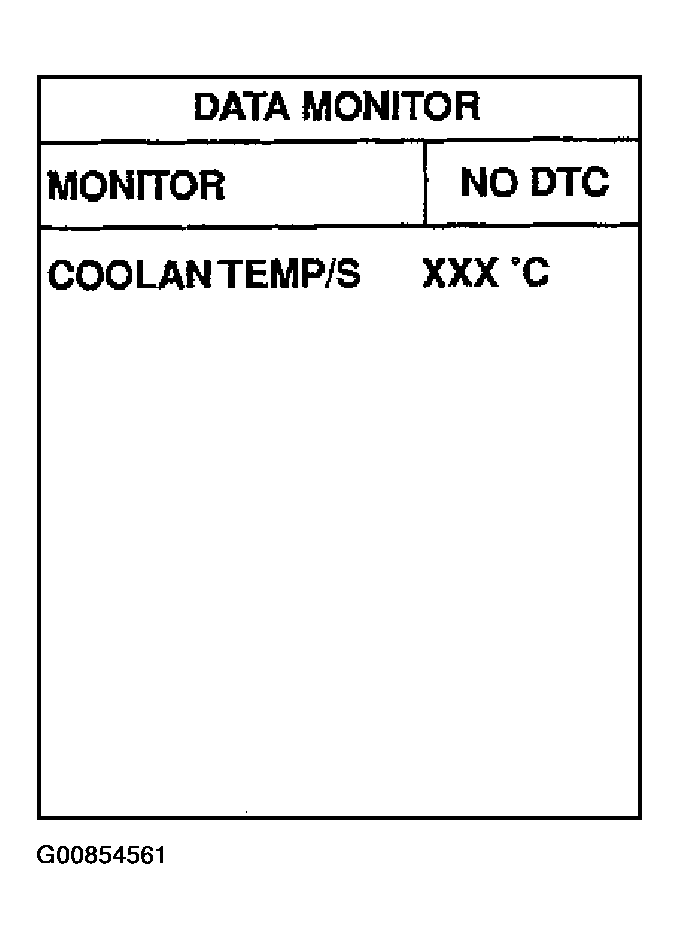

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "EGR SYSTEM P0400" of "EGR SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.
Touch "START".

Fig 2: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Accelerate vehicle to a speed of 40 km/h (25 MPH) once and then stop vehicle with engine running.
If "COMPLETED" appears on CONSULT-II screen, go to step 9.

If "COMPLETED" does not appear on CONSULT-II screen, go to the following step.
Check the output voltage of "THRTL POS SEN" (at closed throttle position) and note it.

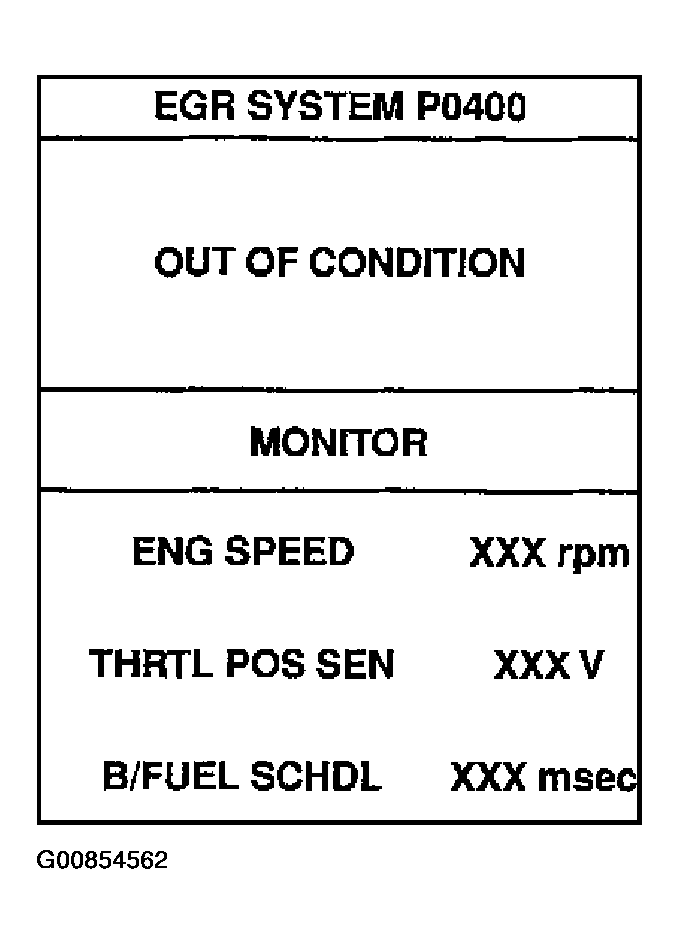

Fig 3: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions until "TESTING" changes to "COMPLETED". (It will take approximately 30 seconds or more.)

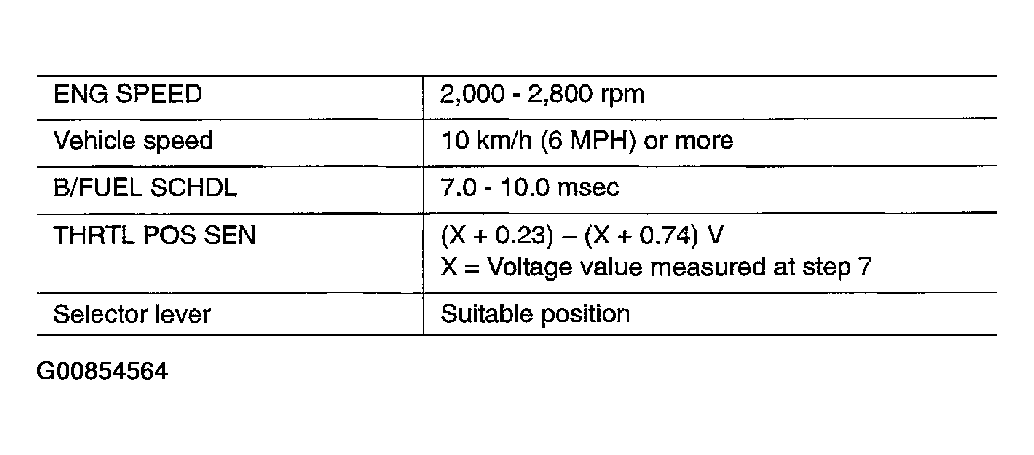

Fig 4: ENG Speed Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

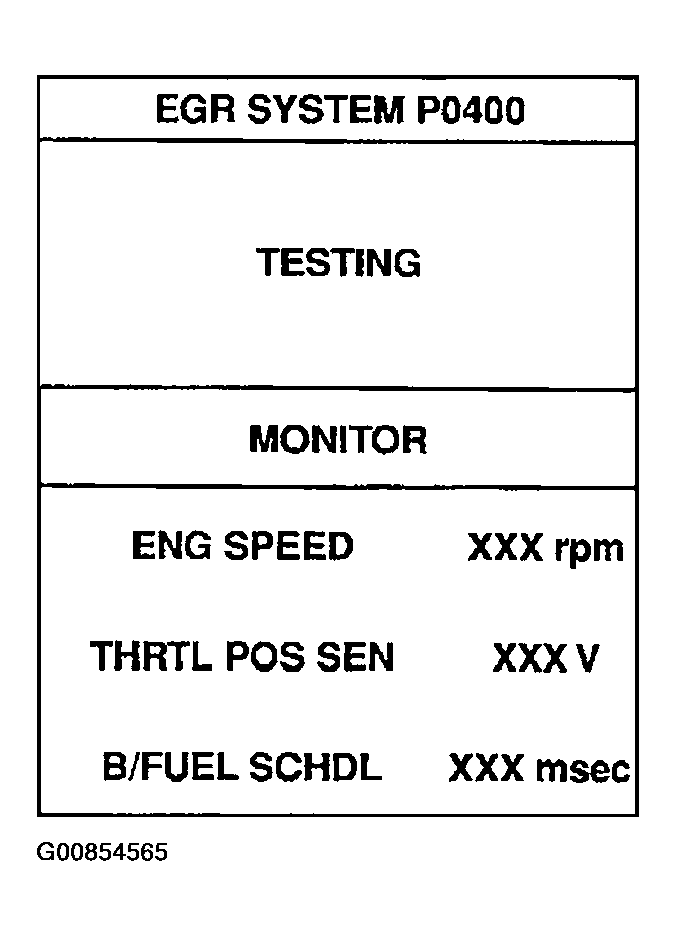

Fig 5: Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.

If "TESTING" is not displayed after 5 minutes, retry from step 1 .
Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS".
If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .
