EGR temperature sensor

The EGR temperature sensor detects temperature changes in the EGR passageway. When the EGR valve opens, hot exhaust gases flow, and the temperature in the passageway changes. The EGR temperature sensor is a thermistor that modifies a voltage signal sent from the ECM. This modified signal then returns to the ECM as an input signal. As the temperature increases, EGR temperature sensor resistance decreases. This sensor is not used to control the engine system.

It is used only for the on board diagnosis.

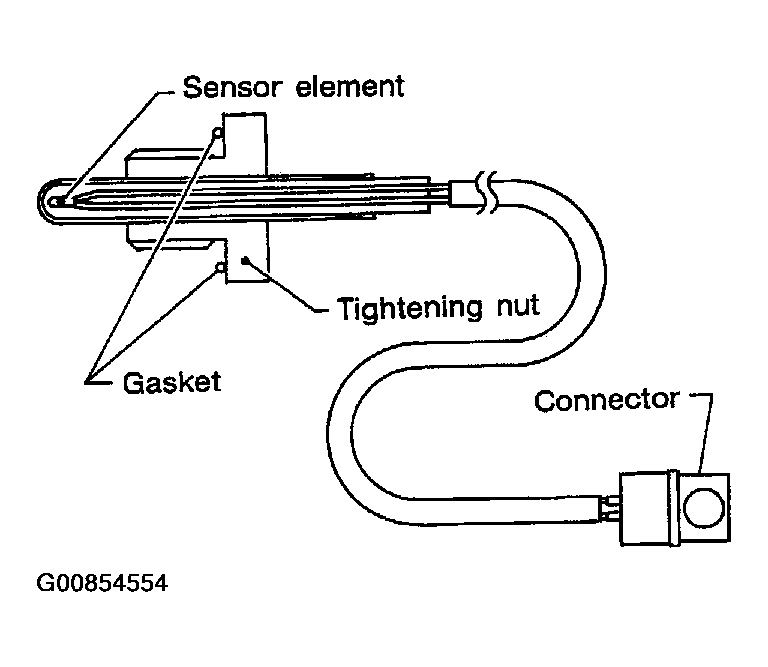

Fig 1: Identifying EGR Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

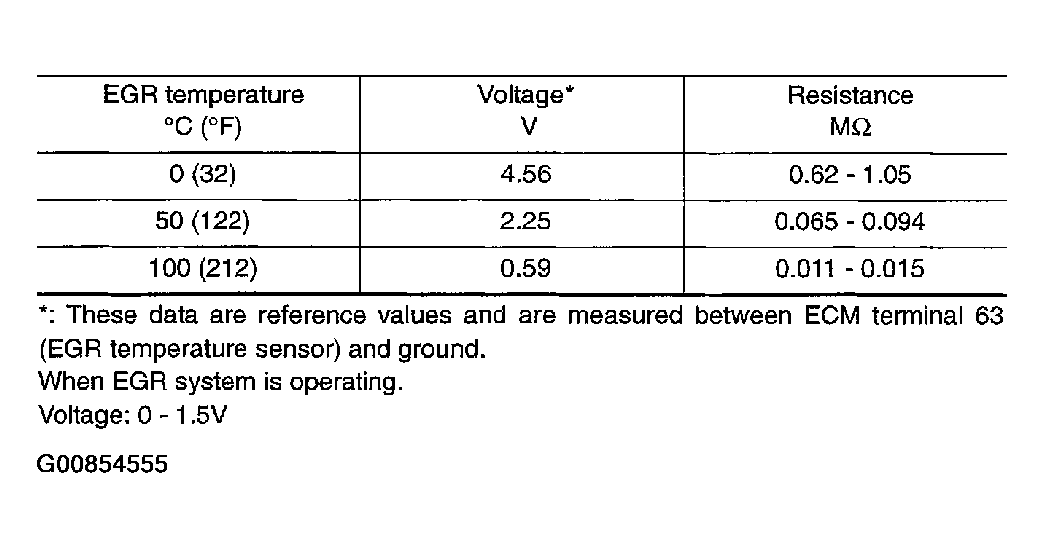

Fig 2: Voltage Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

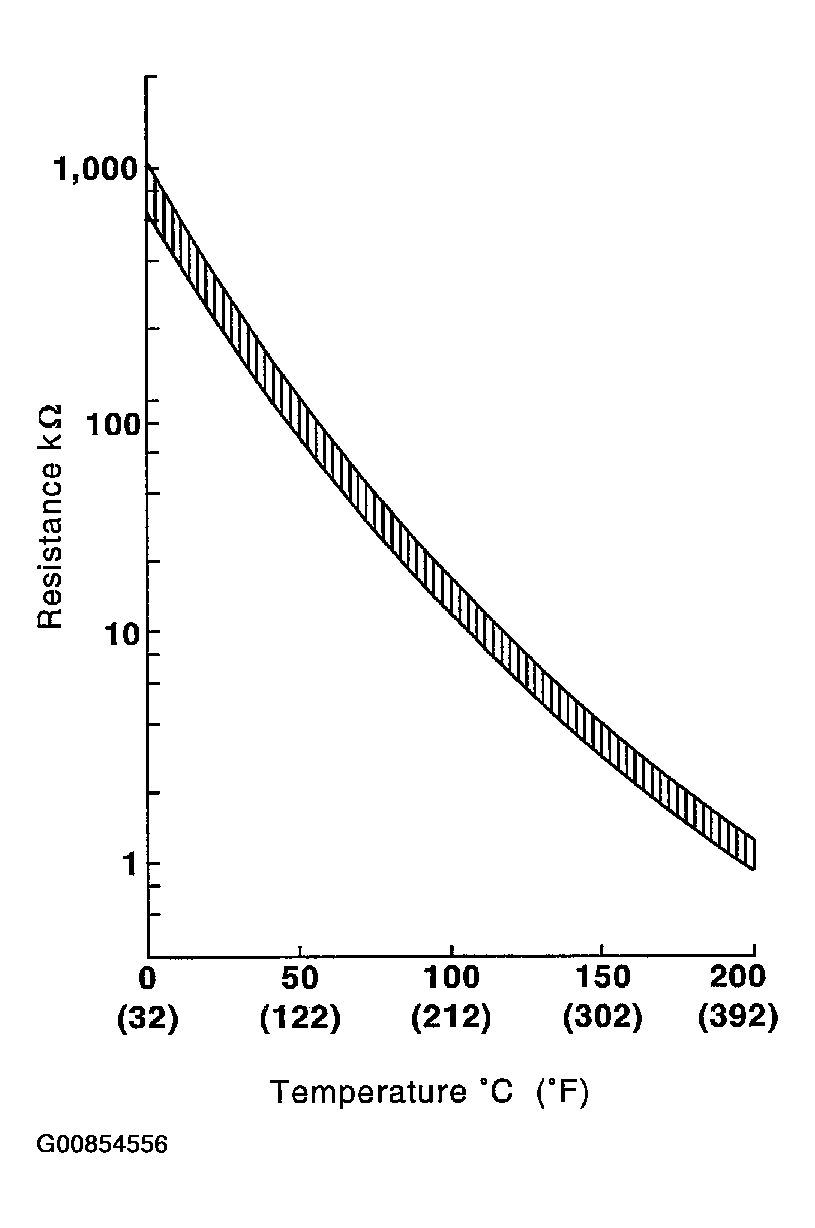

Fig 3: Resistance Vs Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
