With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Check that voltage between ECM terminal 60 (Fuel tank temperature sensor signal) and ground is less than 4.2V.
  3. Turn ignition switch OFF and wait at least 5 seconds.
  4. Start engine and wait at least 20 seconds.
  5. Select "MODE 7" with GST.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

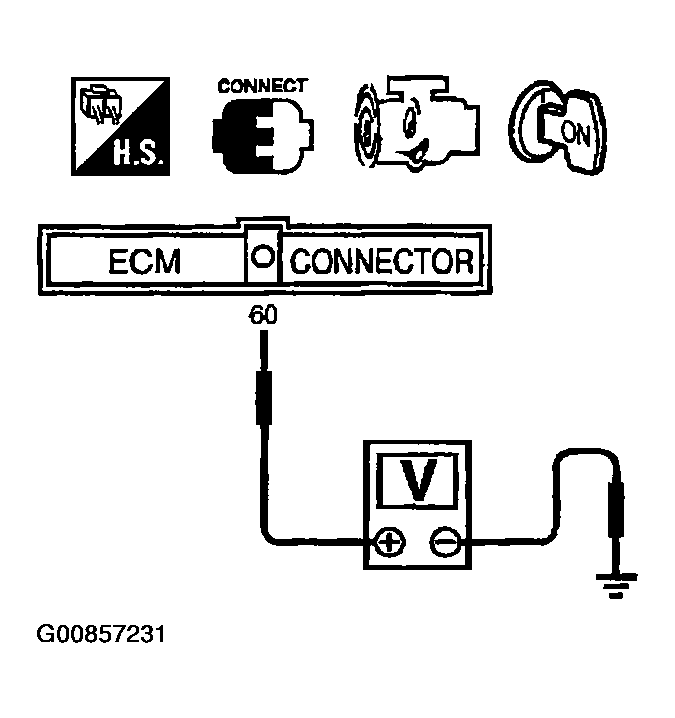

Fig 1: Checking Voltage Between ECM Terminal
G00857231Courtesy of NISSAN MOTOR CO., U.S.A.
