Diagnostic Procedure

  1. CHECK FUEL LEVEL SENSOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect fuel level sensor unit and fuel pump harness connector.
    3. Turn ignition switch ON.
    4. Check voltage between fuel level sensor unit and fuel pump terminal 1 and ground with CONSULT-II or a tester.

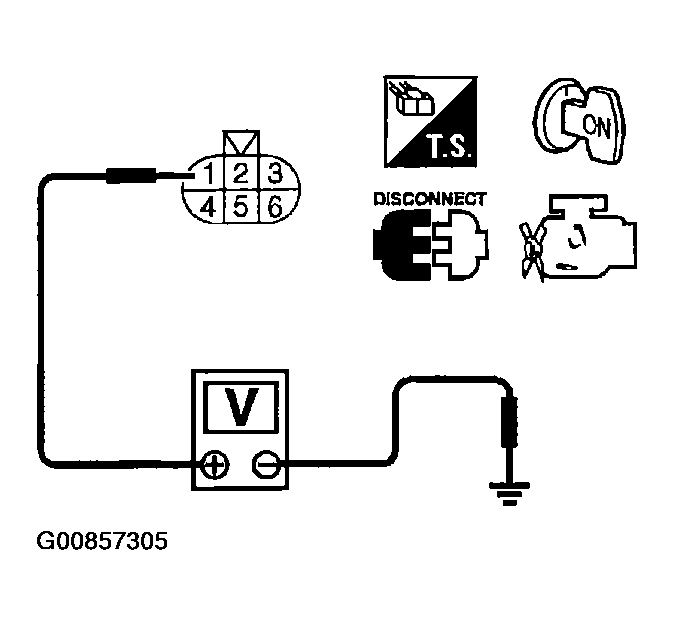

      Fig 1: Checking Voltage Between Fuel Level Sensor Unit
      G00857305Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage : Battery voltage

    OK or NG

    1. OK : GO TO  3.
    2. NG : GO TO 2.
  2. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M67, C1
    • Harness for open or short between combination meter and fuel level sensor until and fuel pump
      1. : Repair or replace harness or connectors.
  3. CHECK FUEL LEVEL SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between fuel level sensor unit terminal 4 and body ground.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    1. OK : GO TO  5.
    2. NG : GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M67, C1
    • Harness for open or short between fuel level sensor and body ground
      1. : Repair open circuit or short to power in harness or connectors.
  5. CHECK FUEL LEVEL SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 46 and fuel level sensor unit terminal 1, ECM terminal 66 and fuel level sensor unit terminal 4.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    1. OK : GO TO  7.
    2. NG : GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M81, F36
    • Harness connectors M67, C1
    • Harness for open or short between ECM and fuel level sensor
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK FUEL LEVEL SENSOR

    Refer to "VEHICLE SPEED SENSOR SIGNAL CHECK ".

    OK or NG

    1. OK : GO TO 8.
    2. NG : Replace fuel level sensor unit.
  8. CHECK INTERMITTENT INCIDENT

    Refer to , "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    : INSPECTION END.
