With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

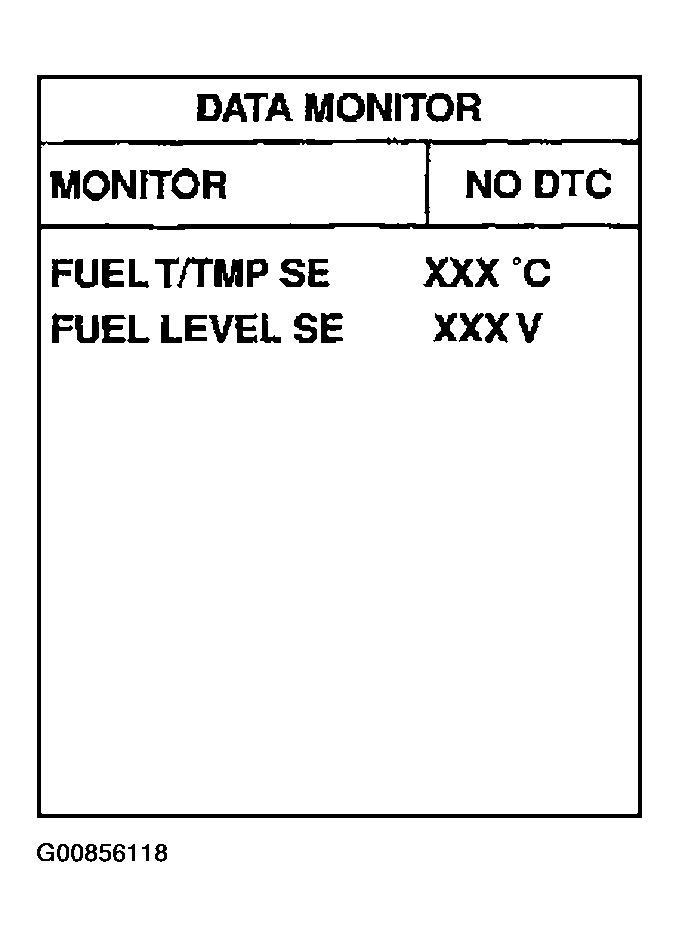

    Fig 1: Scan Tool Display - Data Monitor
    G00856118Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Wait at least 5 seconds.
  4. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
