THRTL Pos Sen, ABSOL Th.P/S, CLSD THL Pos

Below is the data for "THRTL POS SEN", "ABSOL TH.P/S" and "CLSD THL POS" when depressing the accelerator pedal with the ignition switch ON.

The signal of "THRTL POS SEN" and "ABSOL TH.P/S" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from "ON" to "OFF".

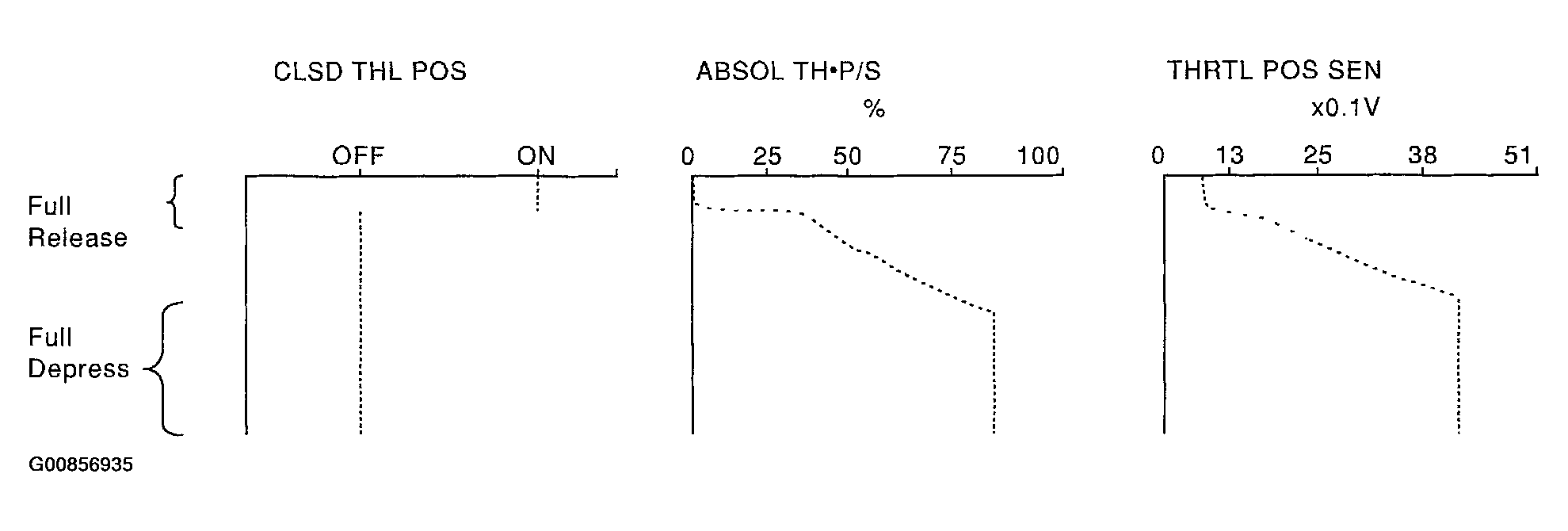

Fig 1: Major Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
