Removal and Installation: Installation
Installation procedure is the reverse order of removal.
- Install the retainer, and the fuel pump and fuel level sensor assembly.CAUTION: Tighten the retainer bolts to specified torque.
- Retainer bolts: 2.0 - 2.5 N.m (0.20 - 0.26 kg-m, 17.4 - 22.6 in-lb)
- Always replace the O-ring with a new one.

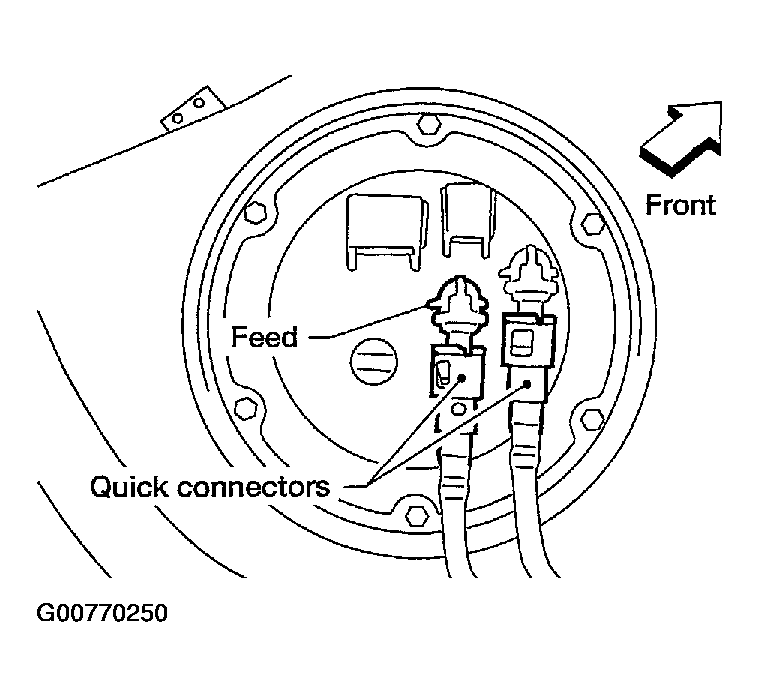

- Make sure the quick connectors are clean and undamaged.
- Use the following procedure to check for leaks.
- Turn ignition switch ON (do not start engine). Then check connections for leaks by applying fuel pressure to fuel piping.
- Start the engine and let it idle, then check that there are no fuel leaks at the fuel piping connections.
