Removal and Installation: Notes

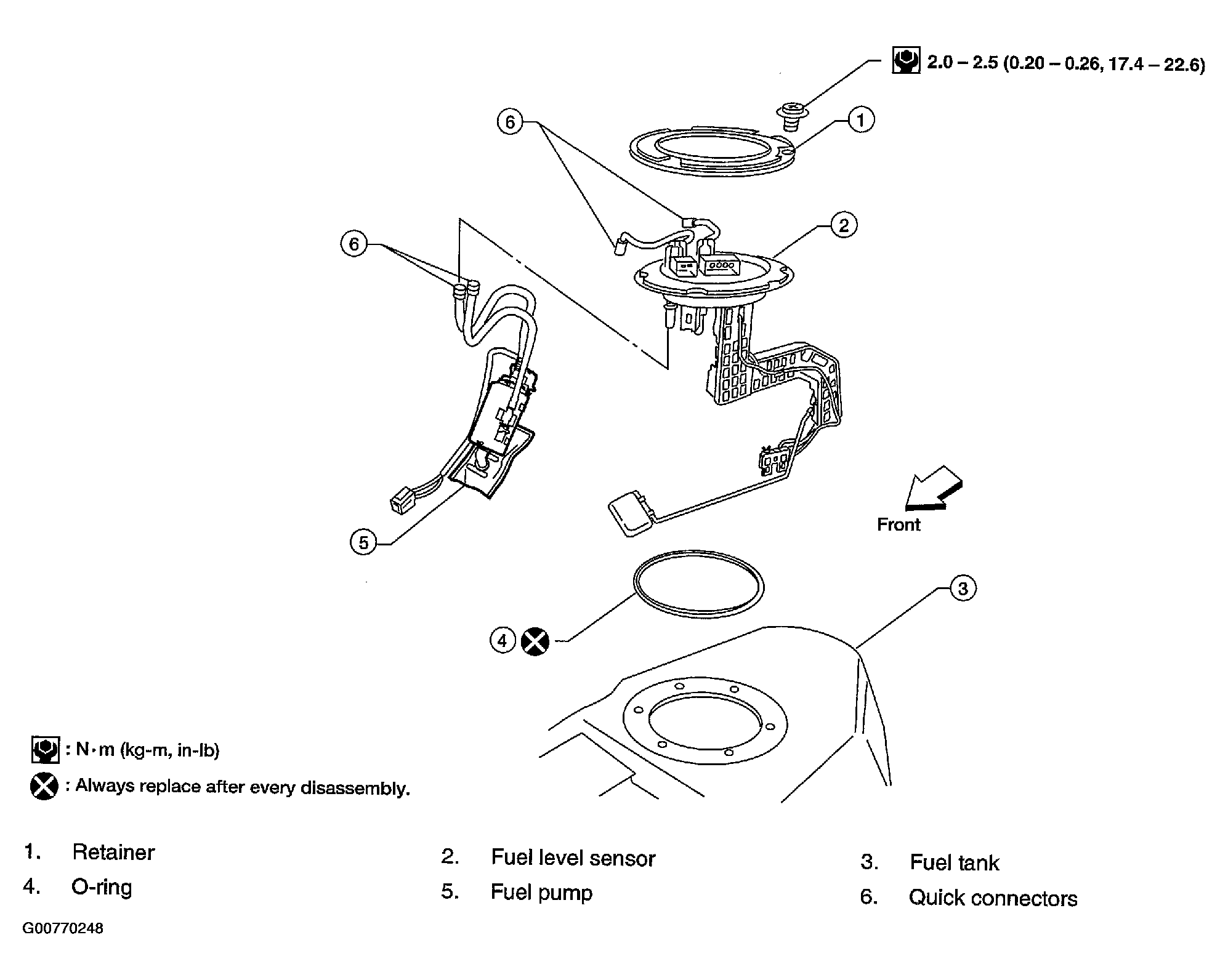

Fig 1: Exploded View Of Fuel Level Sensor Unit And Fuel Pump Assembly Including Torque Specs
G00770248Courtesy of NISSAN MOTOR CO., U.S.A.
