Removal and Installation: Installation
Installation is in the reverse order of the removal.

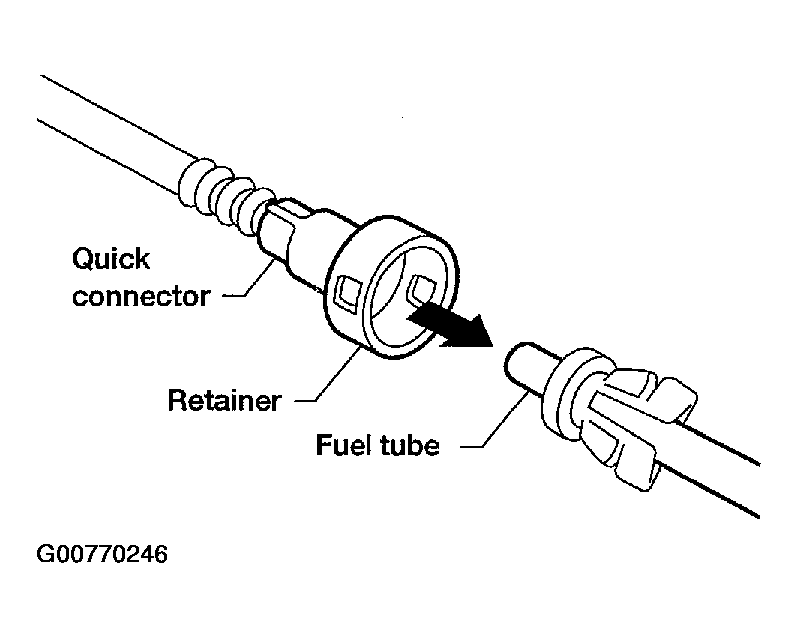

Connect the quick connectors as follows:
- Make sure the connectors are clean and undamaged.
- Align push in tabs with retainer openings.
- Insert tube into the center of the connector until you hear a click.

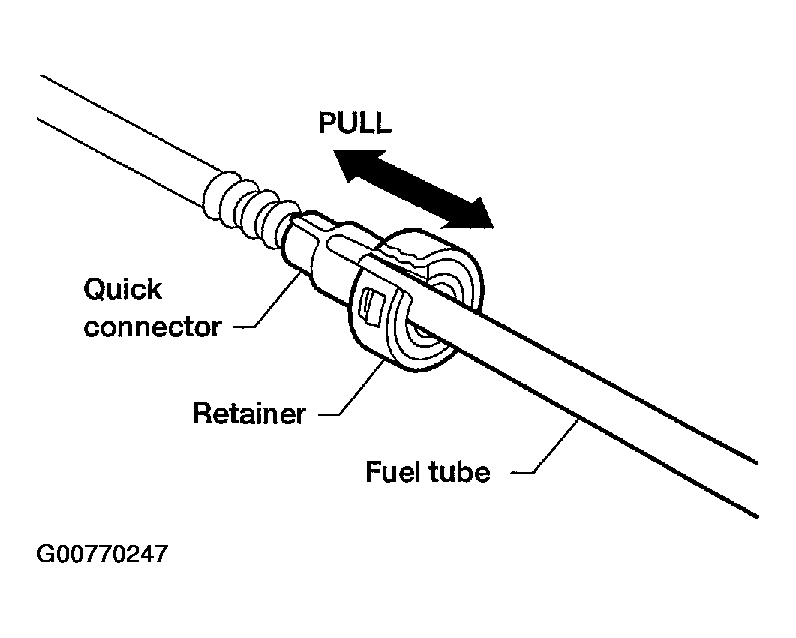

After connecting quick connectors, make sure the connection is fully seated and locked in place as follows:
- Pull on the fuel tube and connector to make sure they are properly connected.
- Start the engine, increase engine speed and verify that there are no leaks.
