Removal & Installation: Removal

NOTE: After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.

WARNING: When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

Be careful not to scratch the glass when removing.
Do not set or stand the glass on its edge. Small chips may develop into cracks.

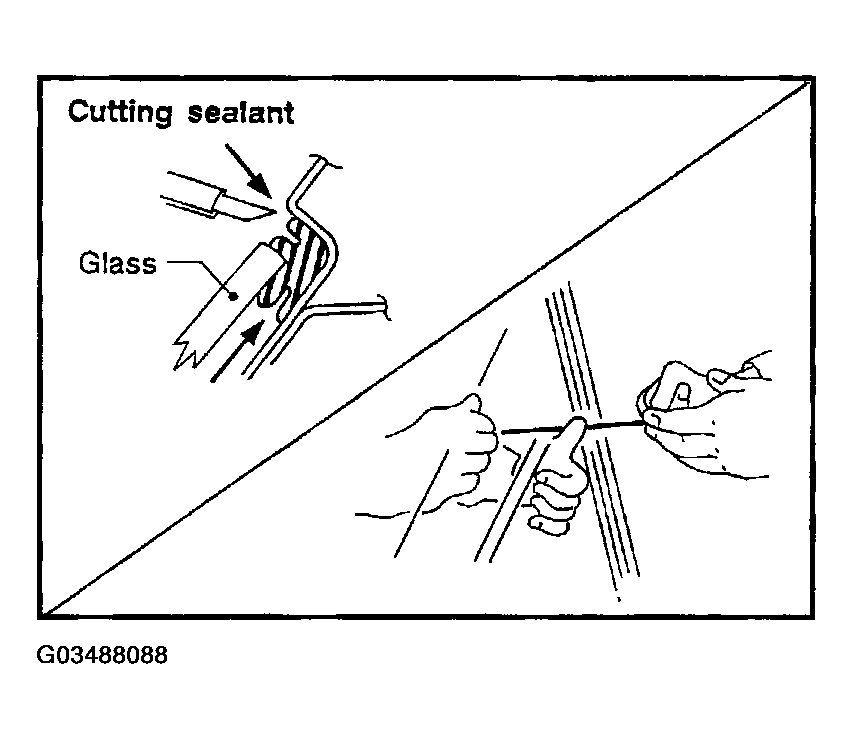

Fig 1: Removing Windshield Glass Using Piano Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

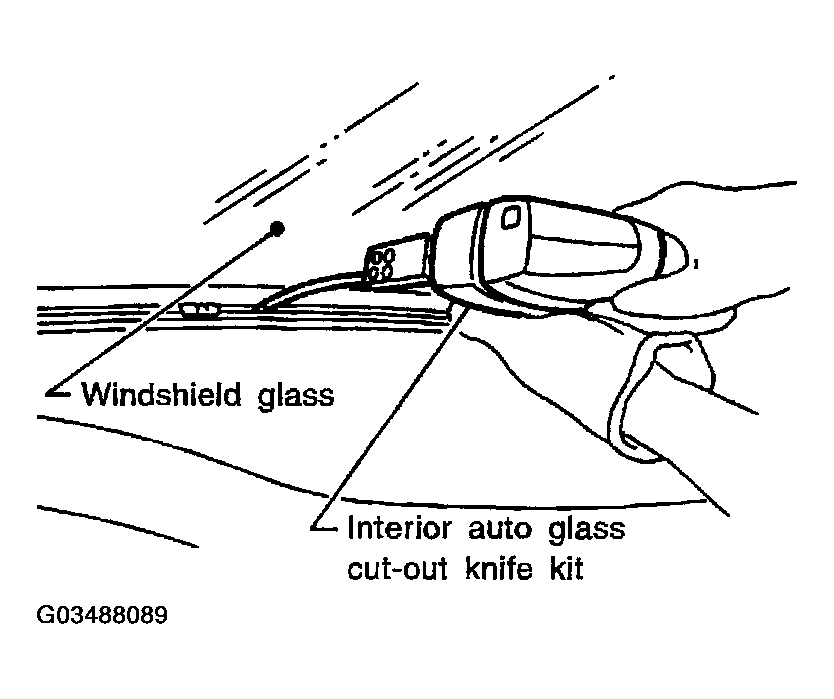

Fig 2: Removing Windshield Glass Using Power Cutting Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

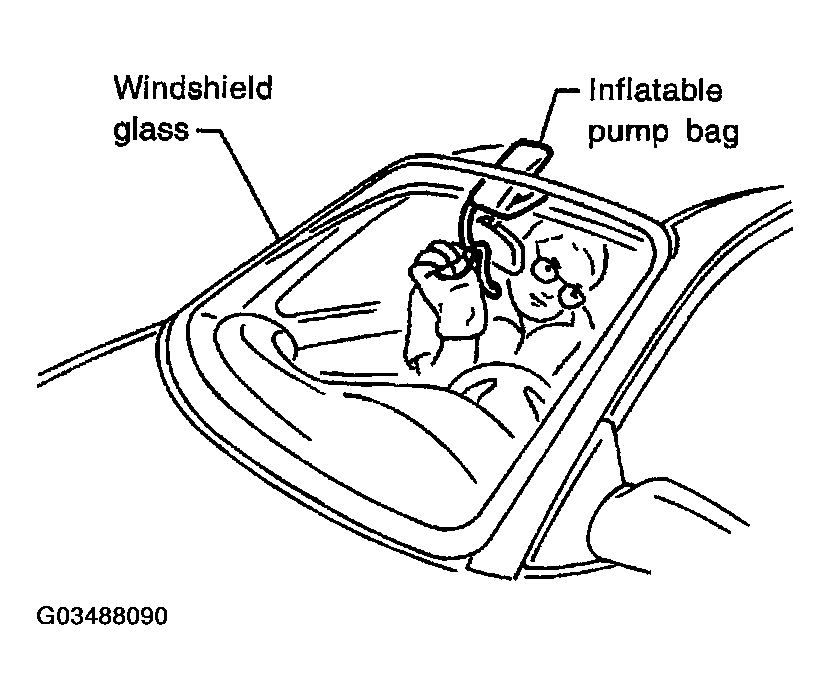

Fig 3: Removing Windshield Glass Using Inflatable Pump Bag
Courtesy of NISSAN MOTOR CO., U.S.A.
