Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  3. Turn ignition switch ON.
  4. Touch "START" on display.

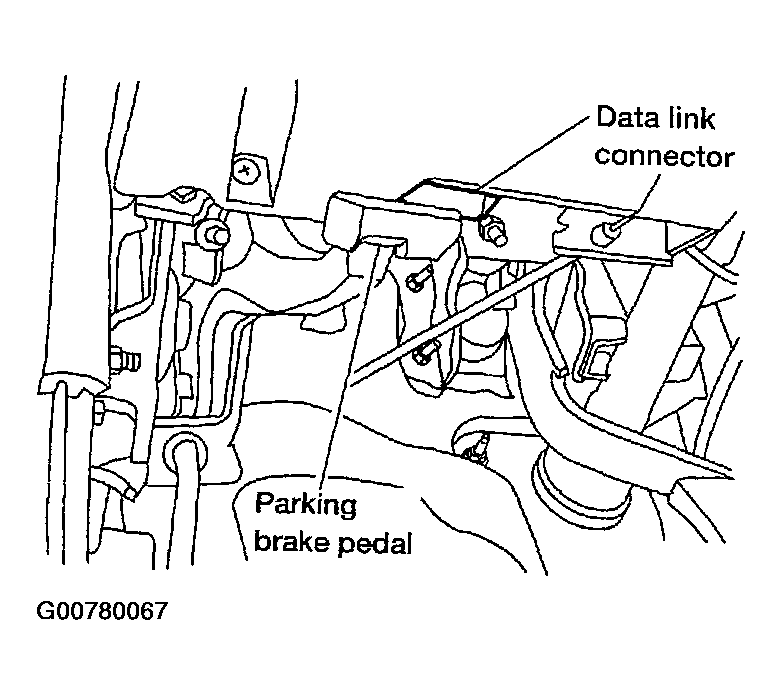

    Fig 1: Identifying Brake Pedal And Data Link Connector
    G00780067Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS" on display.

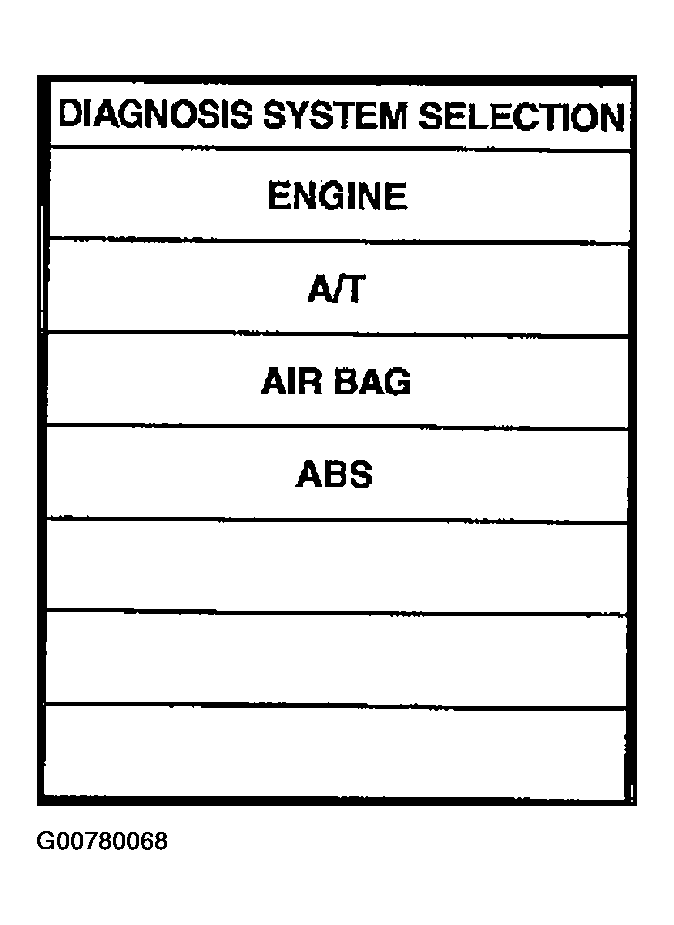

    Fig 2: Display CONSULT-II DIAGNOSIS SYSTEM SELECTION Screen
    G00780068Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

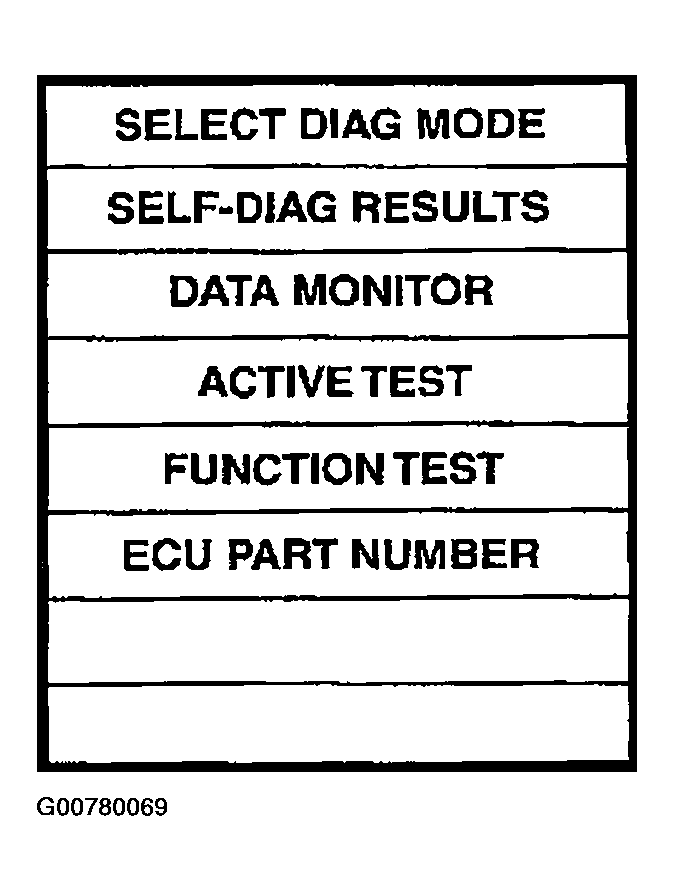

    Fig 3: Display CONSULT-II SELECT DIAG MODE Screen
    G00780069Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Return to monitor item selection screen and touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU". Refer to DISPLAY ITEM LIST .
  8. Touch "START".
  9. Screen of data monitor is displayed.

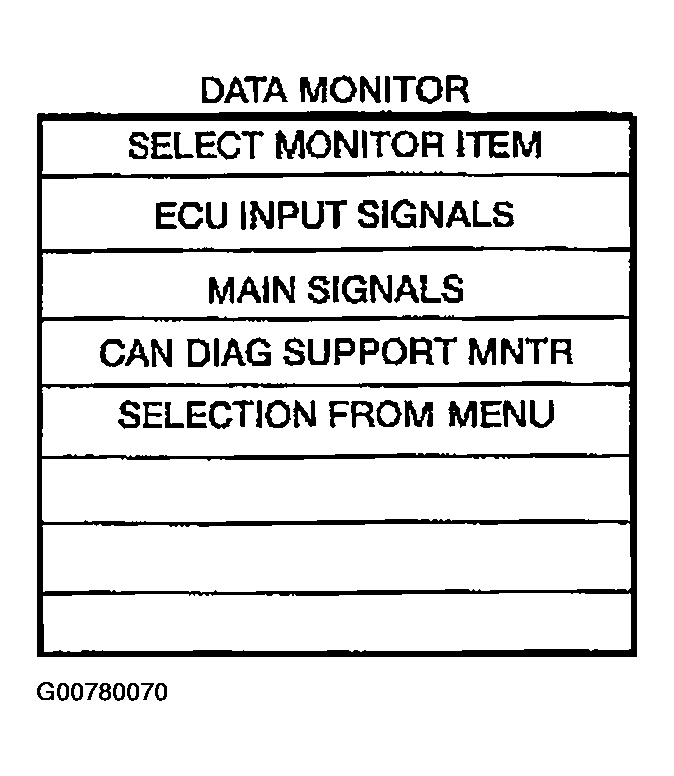

Fig 4: Display CONSULT-II DATA MONITOR Screen
G00780070Courtesy of NISSAN MOTOR CO., U.S.A.


CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect the CONSULT-II connector to the data link connector and start the engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START" on the display.
  3. Touch "ABS" and "ACTIVE TEST".

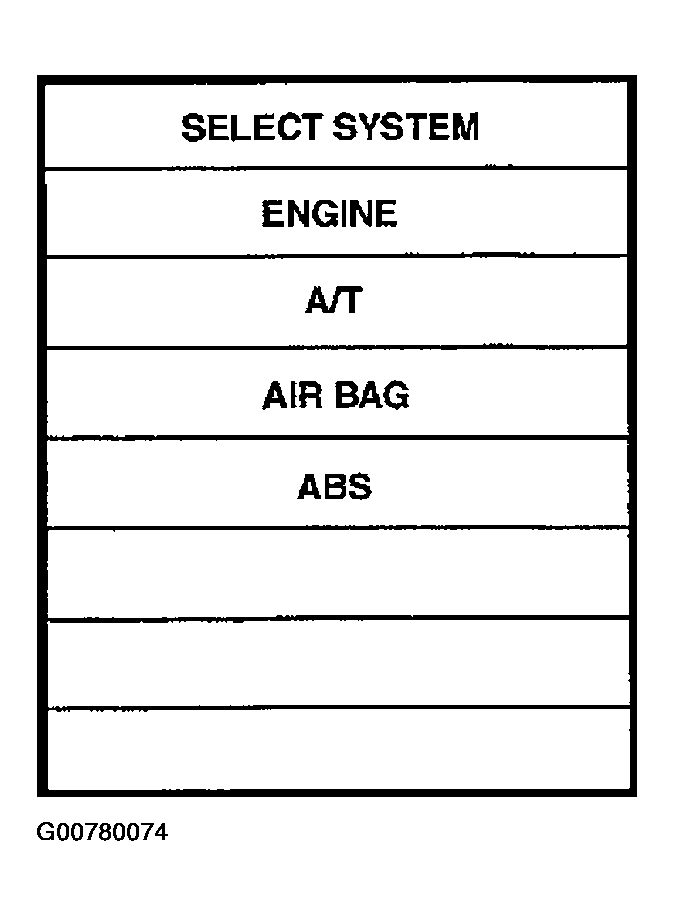

    Fig 1: Display CONSULT-II SELECT SYSTEM Screen
    G00780074Courtesy of NISSAN MOTOR CO., U.S.A.

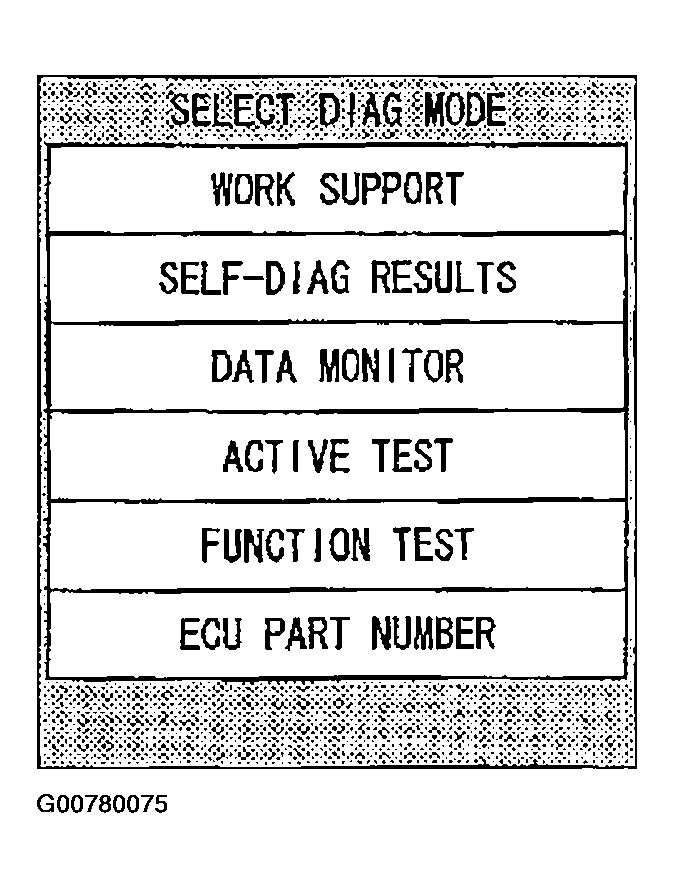

    Fig 2: Display CONSULT-II SELECT DIAG MODE Screen
    G00780075Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.
  5. Touch necessary test item.

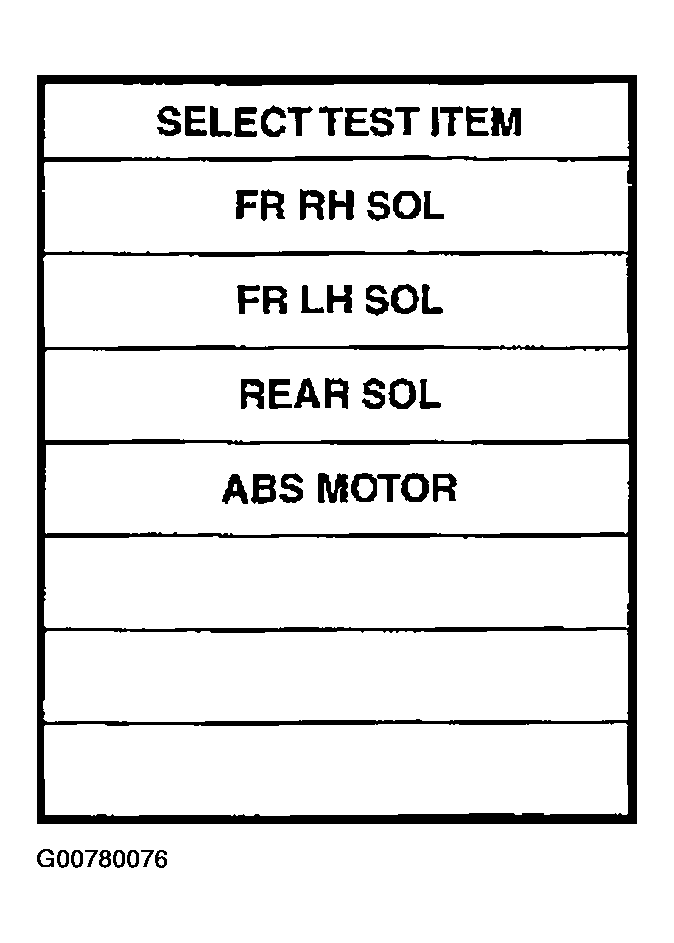

    Fig 3: Display CONSULT-II SELECT TEST ITEM Screen
    G00780076Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" with "MAIN SIGNALS" line inverted.
  7. Carry out active test by touching screen key.

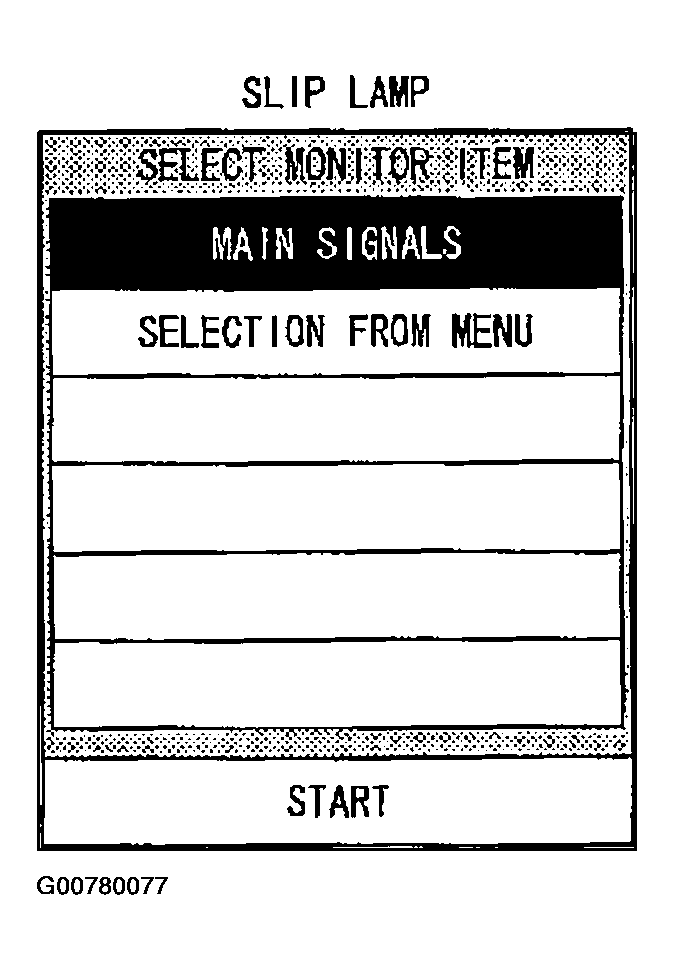

Fig 4: Display Identifying SLIP LAMP Screen
G00780077Courtesy of NISSAN MOTOR CO., U.S.A.
