Test Item

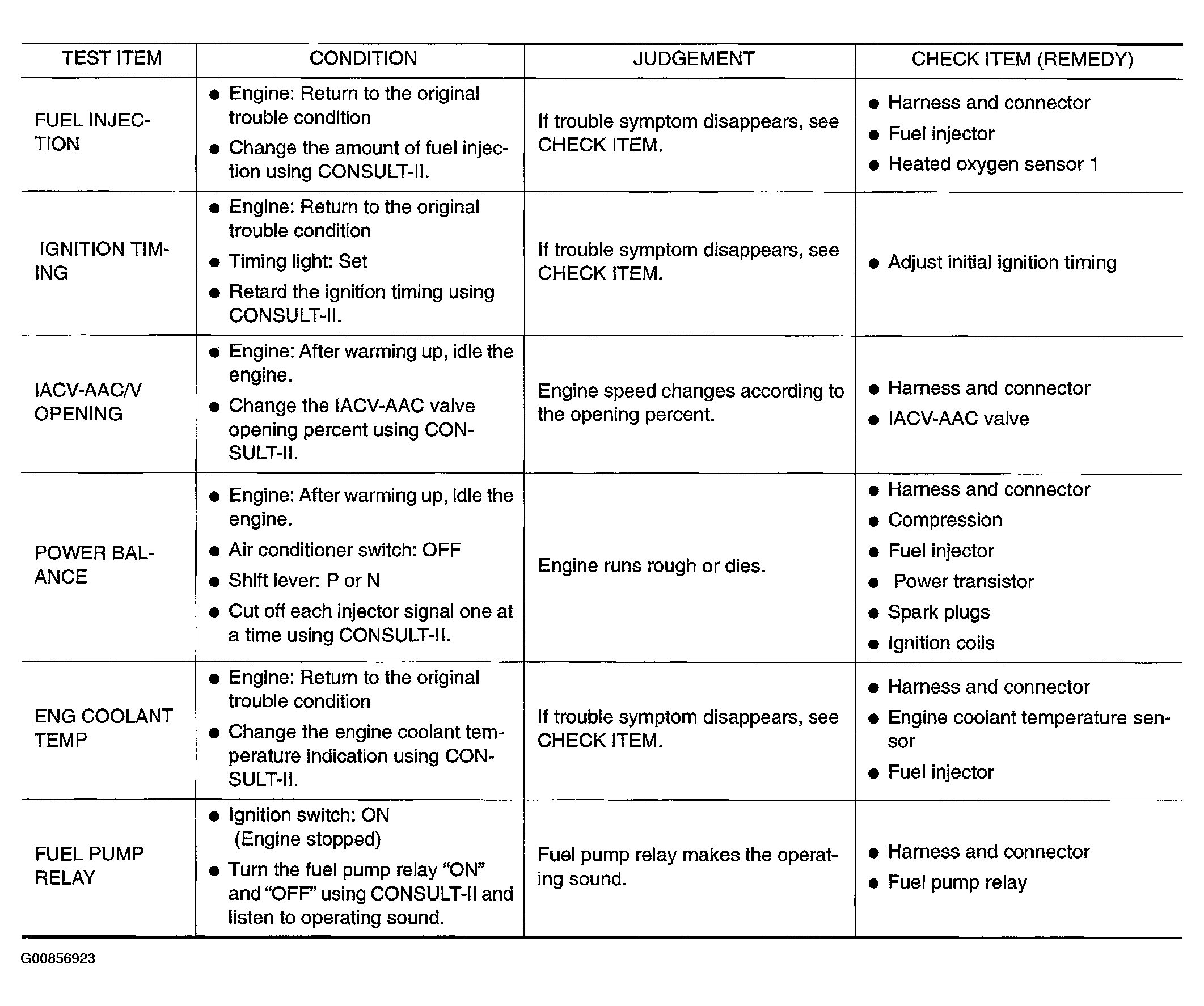

Fig 1: Active Test Mode Chart (1 Of 2)
G00856923Courtesy of NISSAN MOTOR CO., U.S.A.

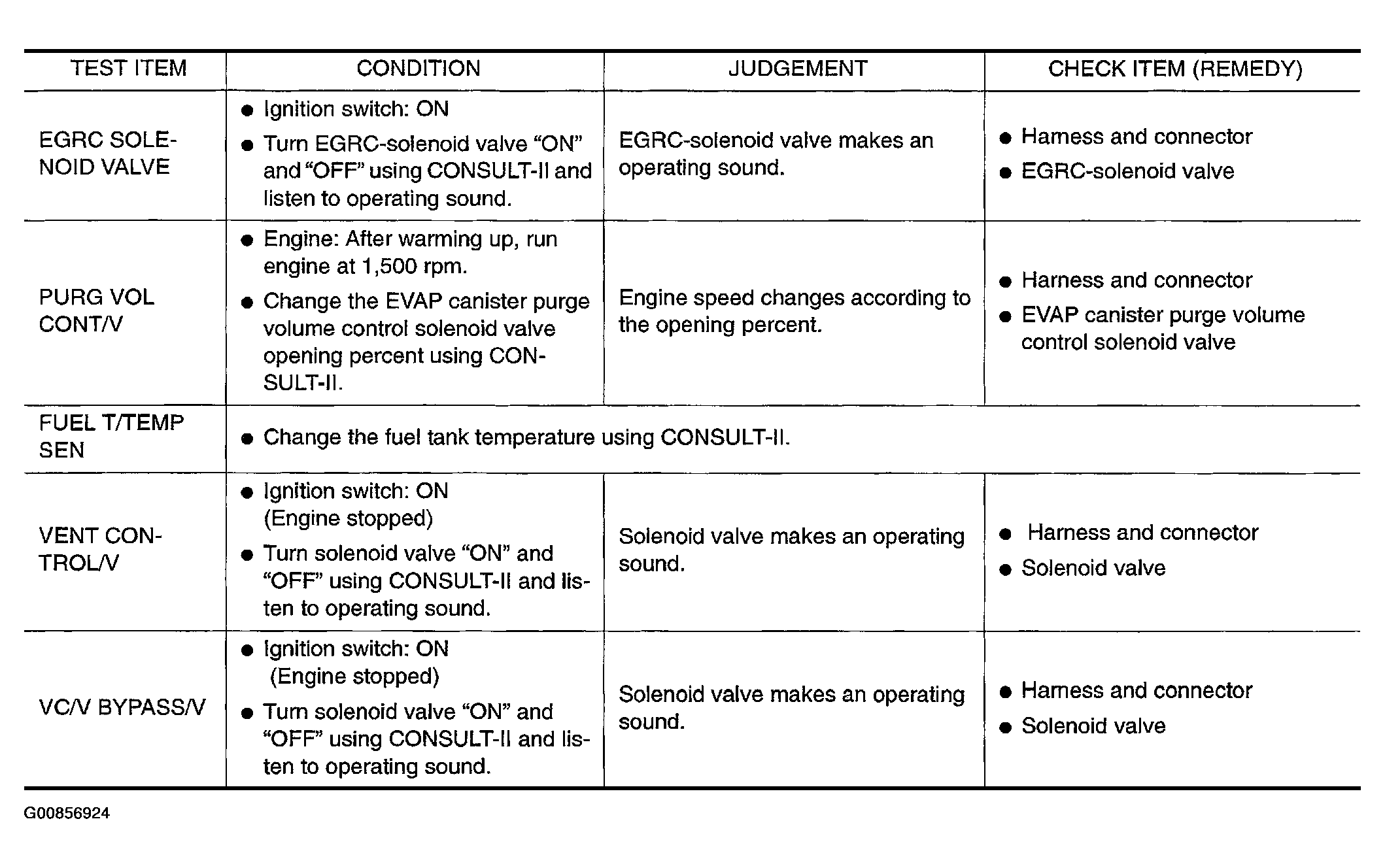

Fig 2: Active Test Mode Chart (2 Of 2)
G00856924Courtesy of NISSAN MOTOR CO., U.S.A.
