Fuel Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance : 7.3 - 9.9Ω [at 25° C (77° F)]

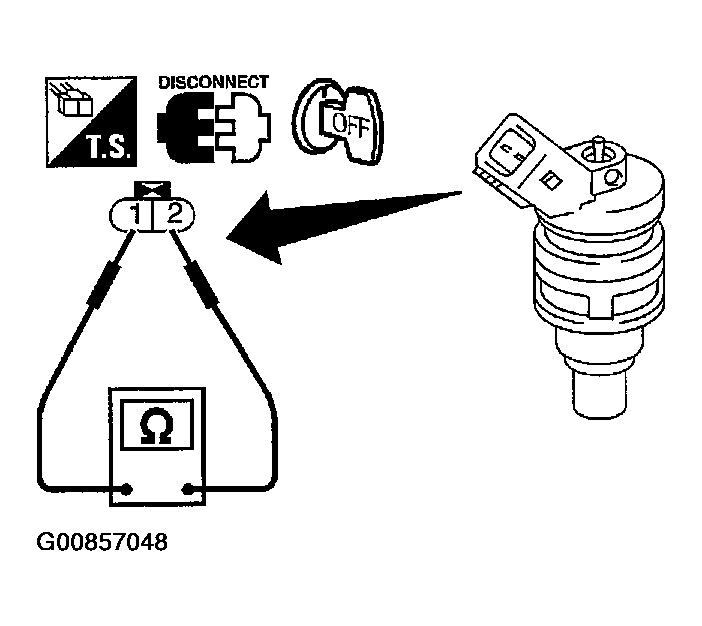

    Fig 1: Checking Resistance Between Terminals
    G00857048Courtesy of NISSAN MOTOR CO., U.S.A.
