On Board Diagnosis Logic: Notes

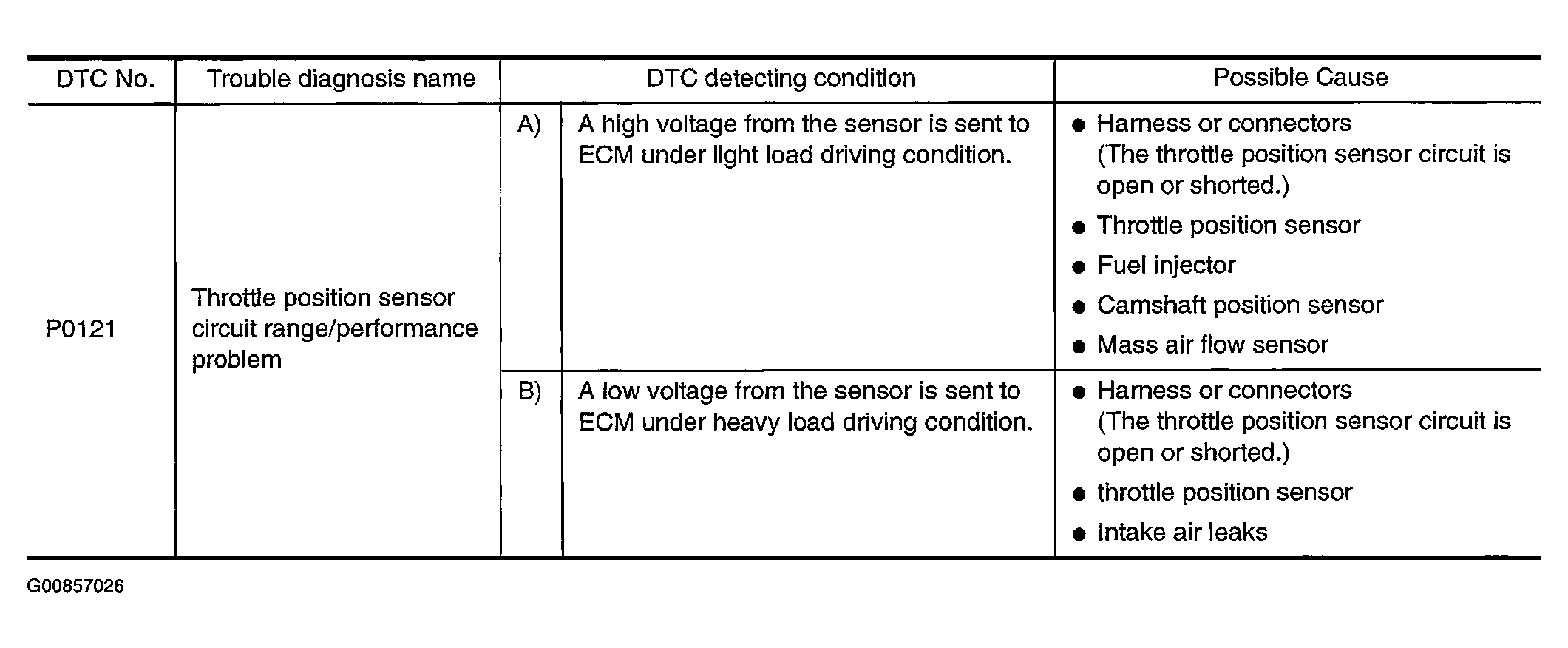

Fig 1: On Board Diagnosis Logic Chart

G00857026

Courtesy of NISSAN MOTOR CO., U.S.A.
