EGR Valve

Apply vacuum to EGR vacuum port with a hand vacuum pump.
EGR valve spring should lift.
Check for sticking.

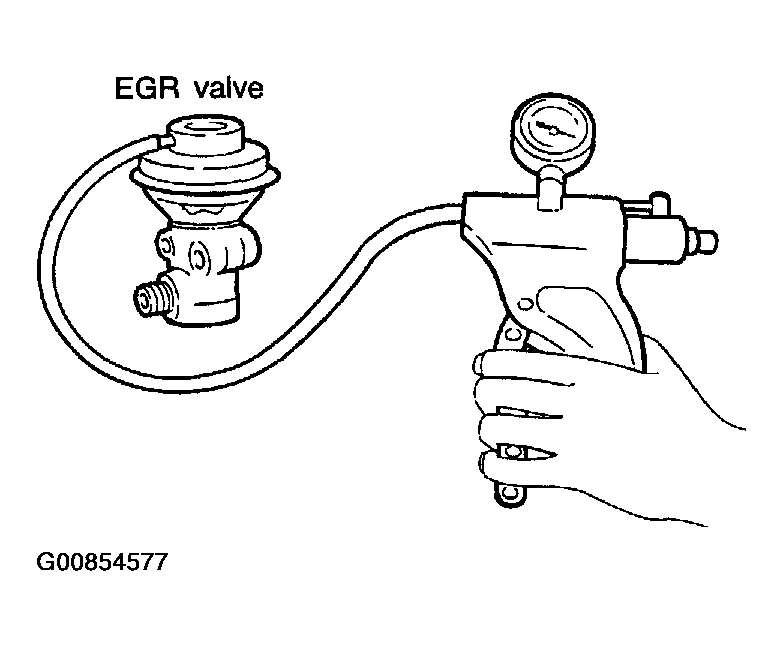

Fig 1: Applying Vacuum To EGR Vacuum Port With A Hand Vacuum Pump

Courtesy of NISSAN MOTOR CO., U.S.A.
