EGR Temperature Sensor

Check resistance change and resistance value.

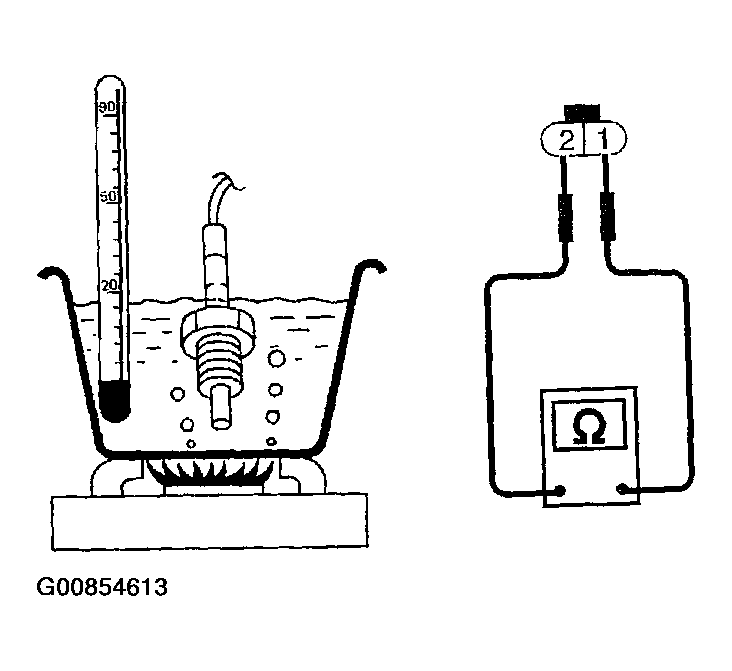

Fig 1: Checking Resistance Change And Resistance Value

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

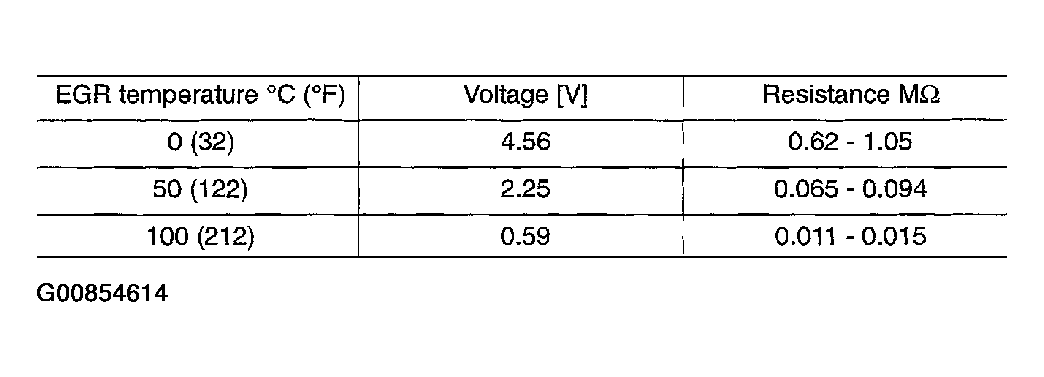

Fig 2: Voltage Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

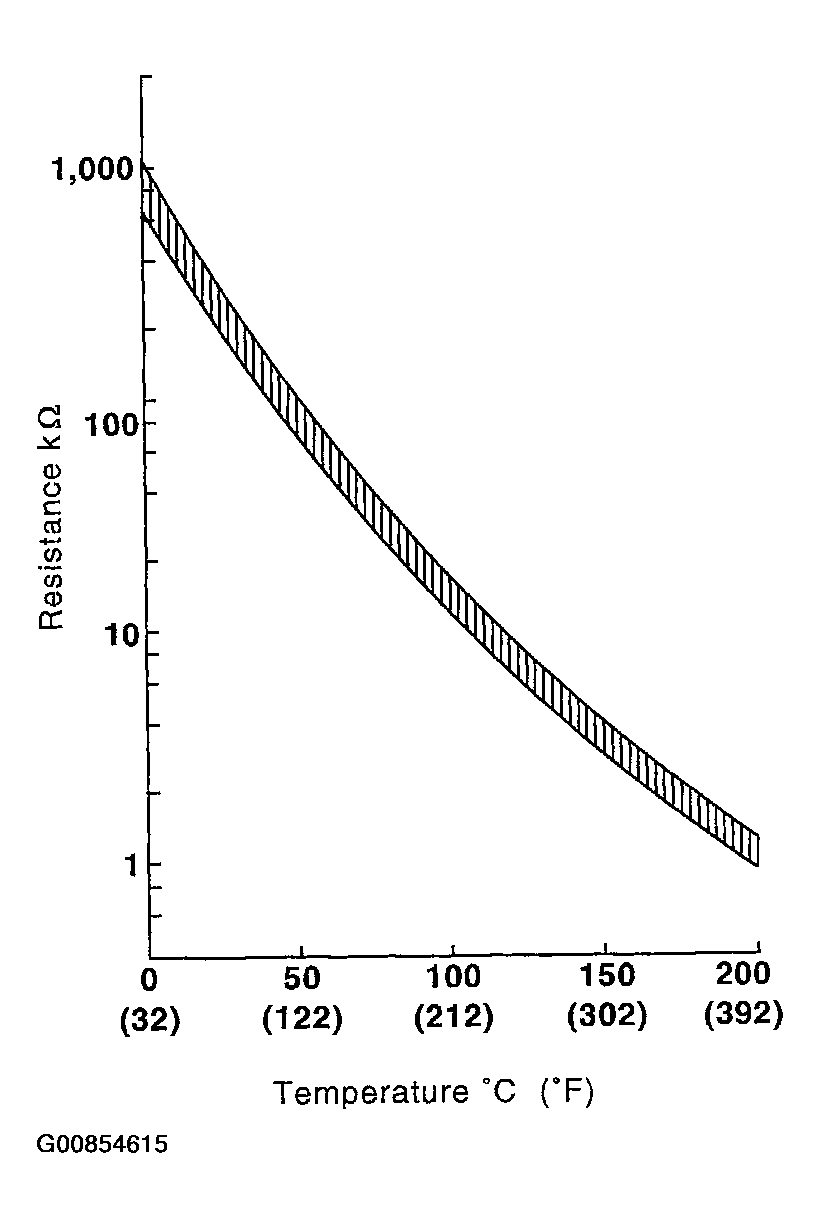

Fig 3: Resistance Vs Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
