With CONSULT-II

  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 5 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.

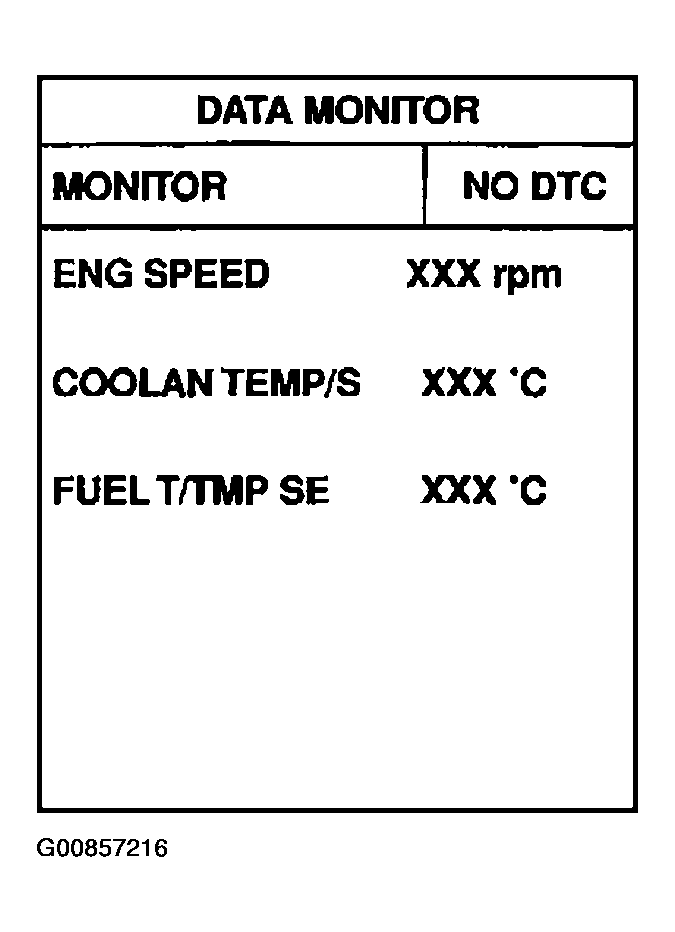

    Fig 1: Scan Tool Display - Data Monitor
    G00857216Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Make sure that "FUEL T/TMP SE" is more than 0°C (32°F).
  6. Start engine and wait at least 20 seconds.
  7. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
