Main 11 Causes of Overheating

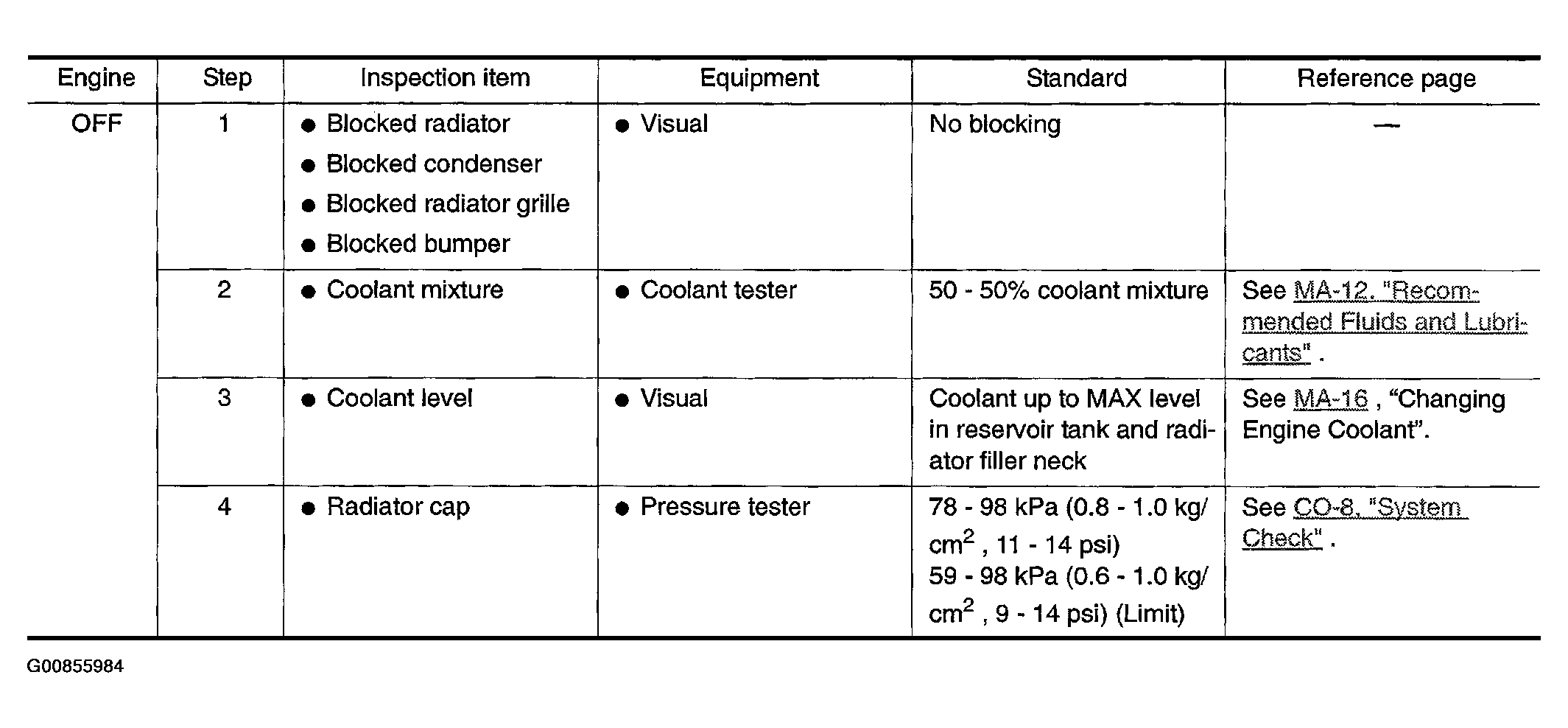

Fig 1: Causes Of Overheating Inspection Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "Causes Of Overheating Inspection Chart (2 Of 2)" for footnotes.

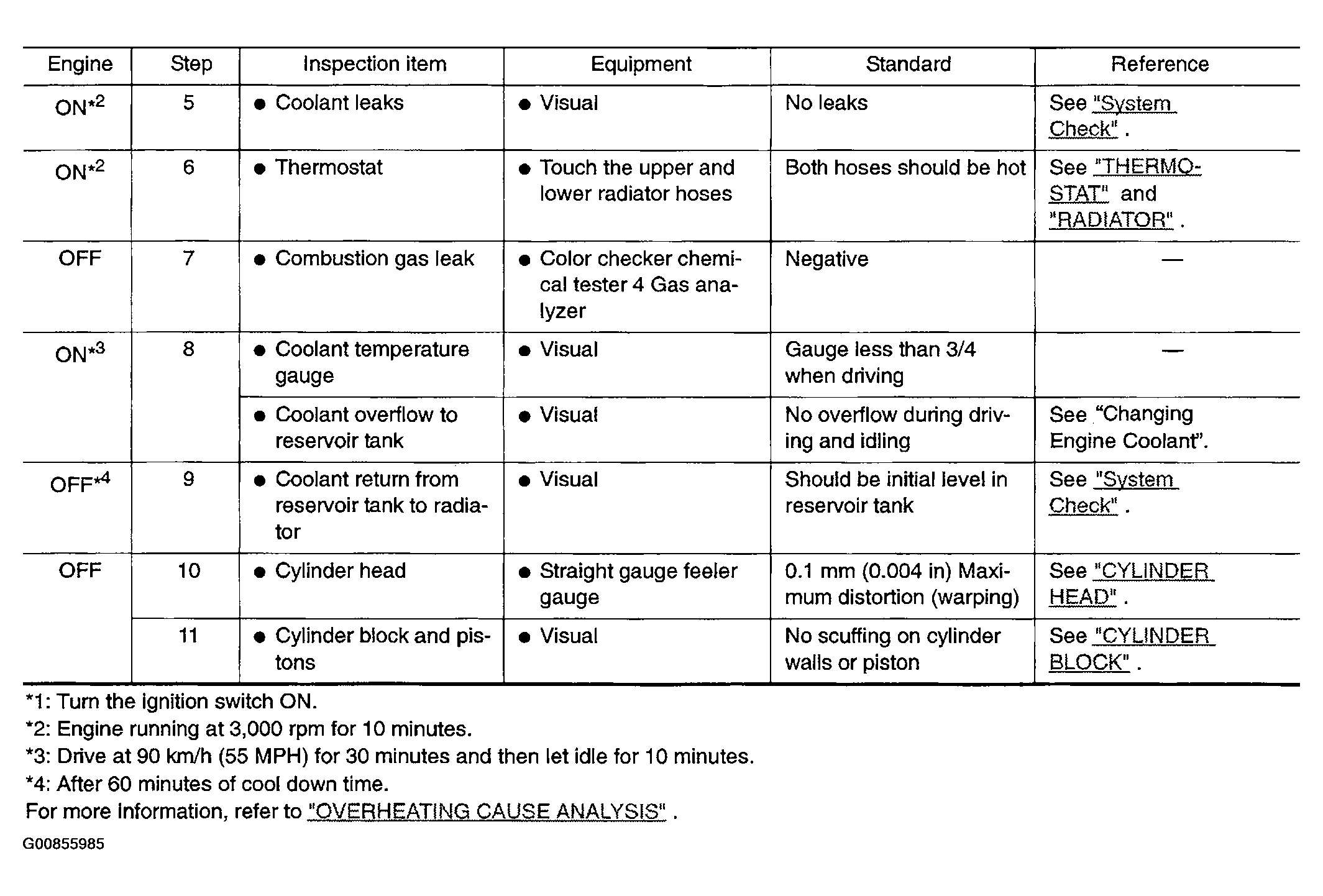

Fig 2: Causes Of Overheating Inspection Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
