With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Check the voltage between ECM terminal 103 and ground at idle.

    Voltage : 0 - 1V

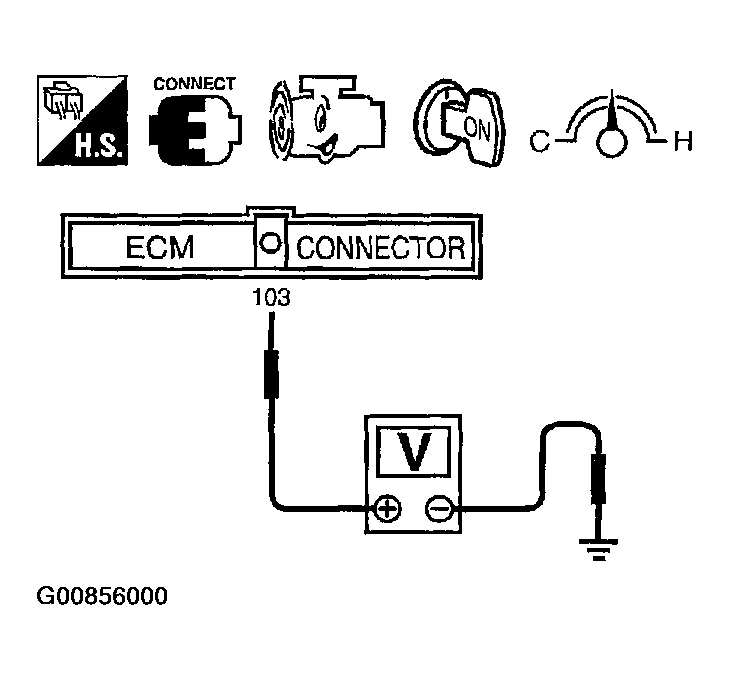

    3. Fig 1: Checking Voltage Between ECM Terminal And Ground
    G00856000Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check that the voltage changes to battery voltage and returns to 0 - 1V when revving the engine from idle to 3,000 RPM quickly.
  4. If NG, go to "DIAGNOSTIC PROCEDURE ".
