CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

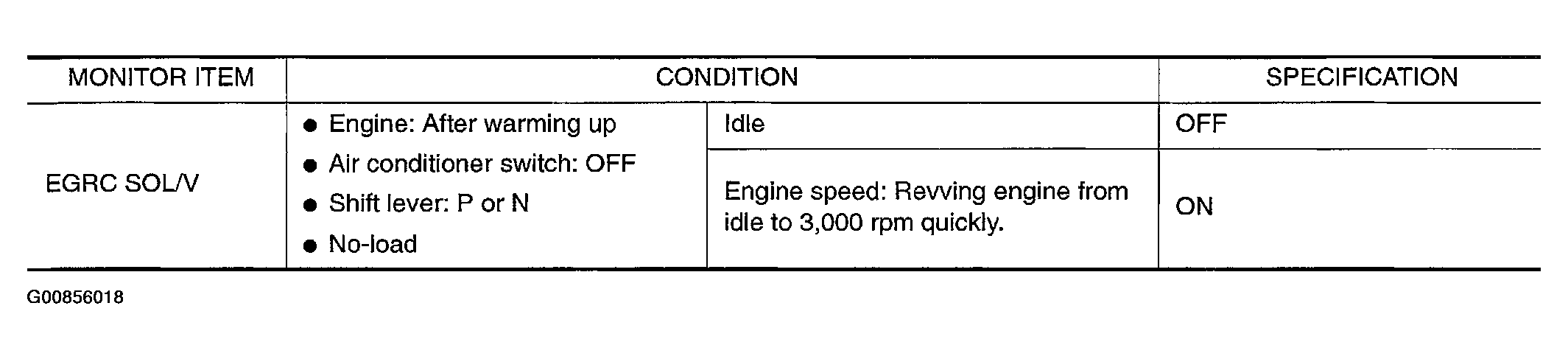

Fig 1: Consult-II Reference Value In Data Monitor Mode Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

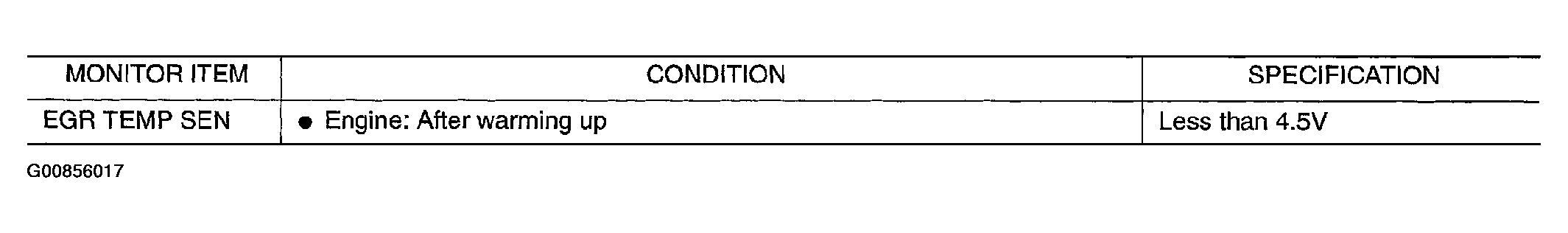

Fig 2: Consult-II Reference Value In Data Monitor Mode Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
