On Board Diagnosis Logic

If EGR temperature sensor detects EGR flow under the condition that does not call for EGR, a high-flow malfunction is diagnosed.

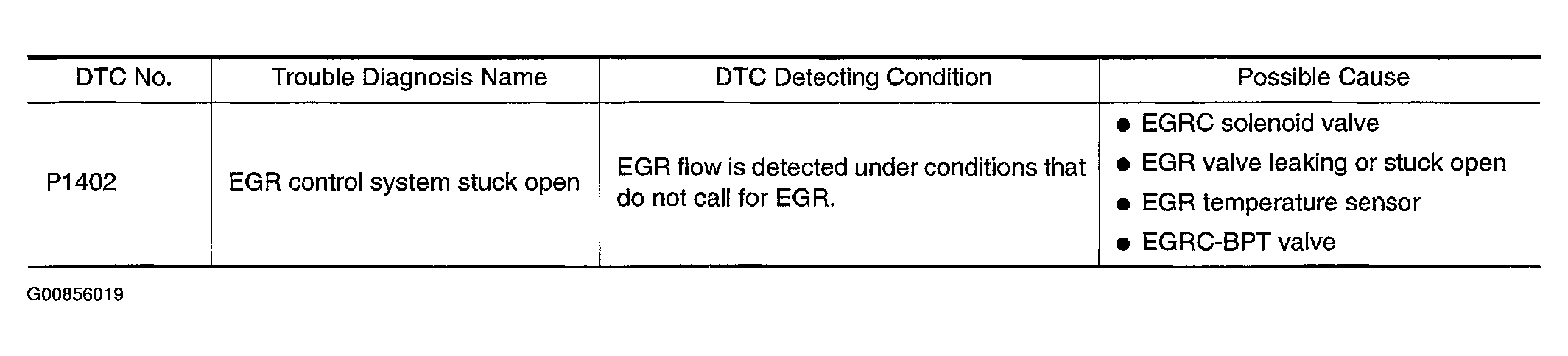

Fig 1: DTC Detecting Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
