On Board Diagnostic Logic

ECM receives two signals from the fuel level sensor.

One is fuel level sensor power supply circuit, and the other is fuel level sensor ground circuit.

This diagnosis indicates the latter to detect open circuit malfunction.

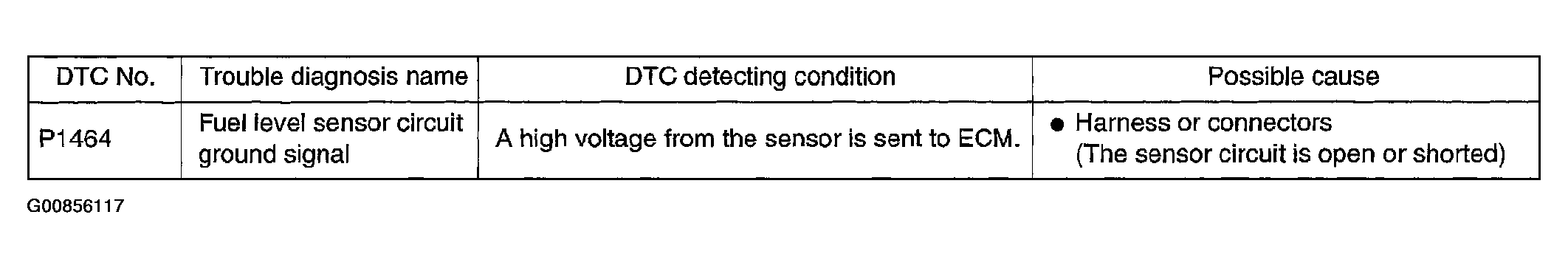

Fig 1: DTC Detecting Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
