Component Description

When the gear position is N or P, park/neutral position (PNP) switch is ON.

ECM detects the park/neutral position when continuity with ground exists.

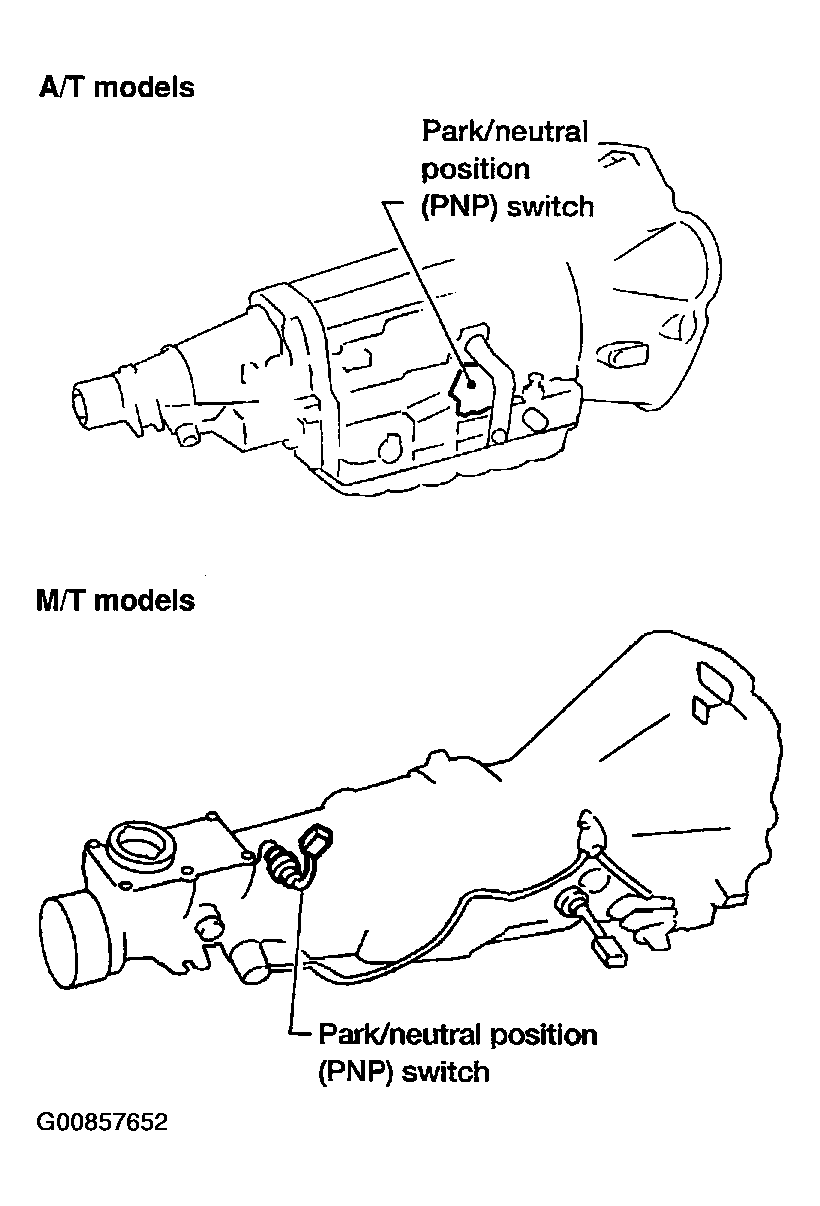

Fig 1: Identifying Park/Neutral Position Switch (A/T & M/T)

Courtesy of NISSAN MOTOR CO., U.S.A.
