Engine Control Component Parts Location

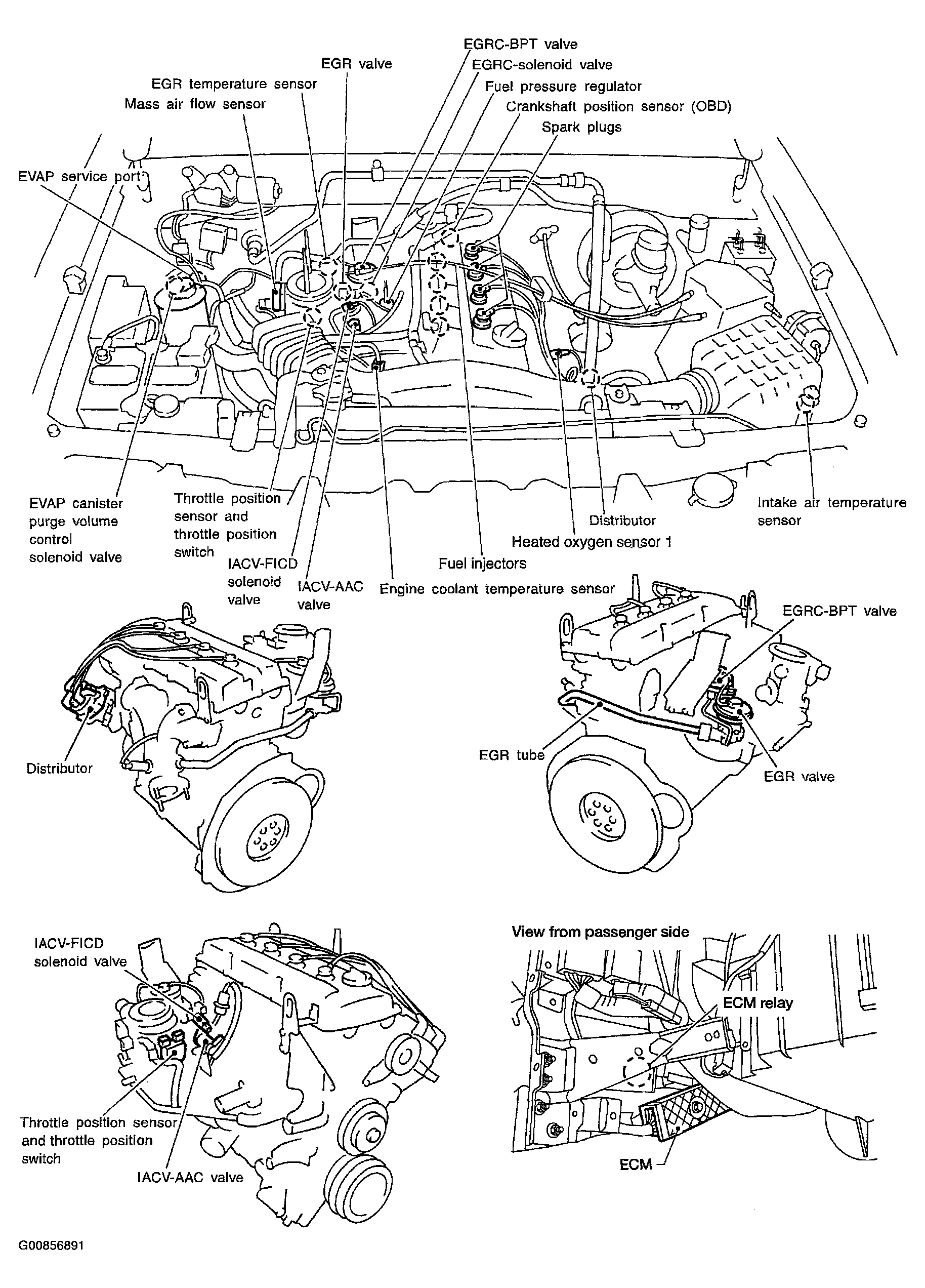

Fig 1: Locating Engine Control Component Parts (1 Of 3)
G00856891Courtesy of NISSAN MOTOR CO., U.S.A.

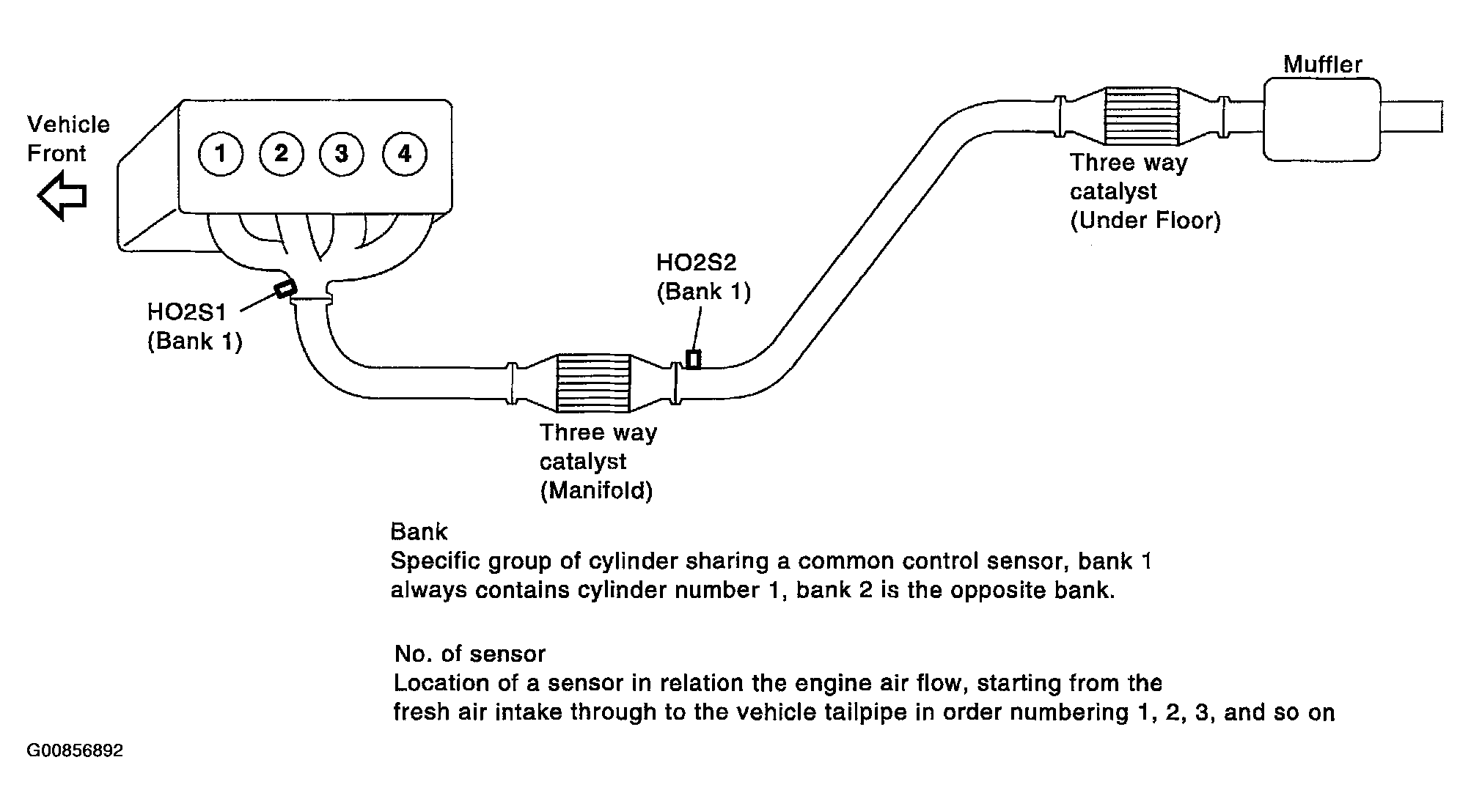

Fig 2: Locating Engine Control Component Parts (2 Of 3)
G00856892Courtesy of NISSAN MOTOR CO., U.S.A.

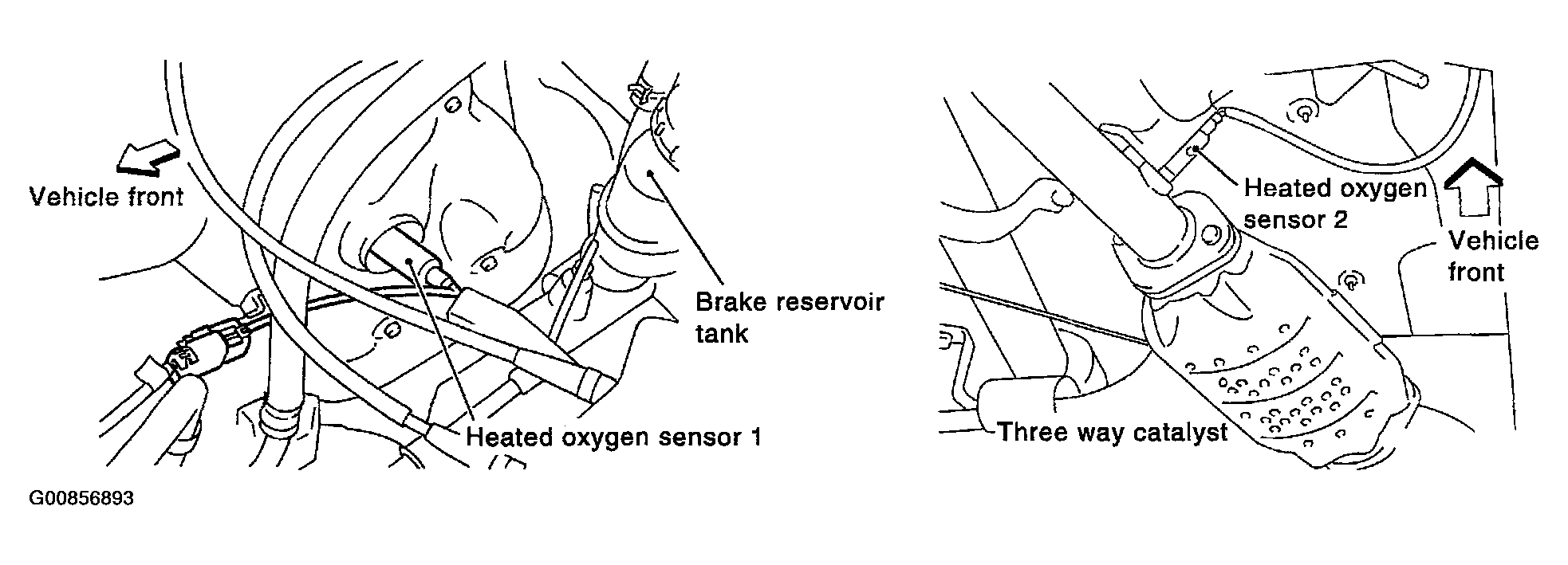

Fig 3: Locating Engine Control Component Parts (3 Of 3)
G00856893Courtesy of NISSAN MOTOR CO., U.S.A.
