Frontier Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - KA24DE
>>
Engine Control System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

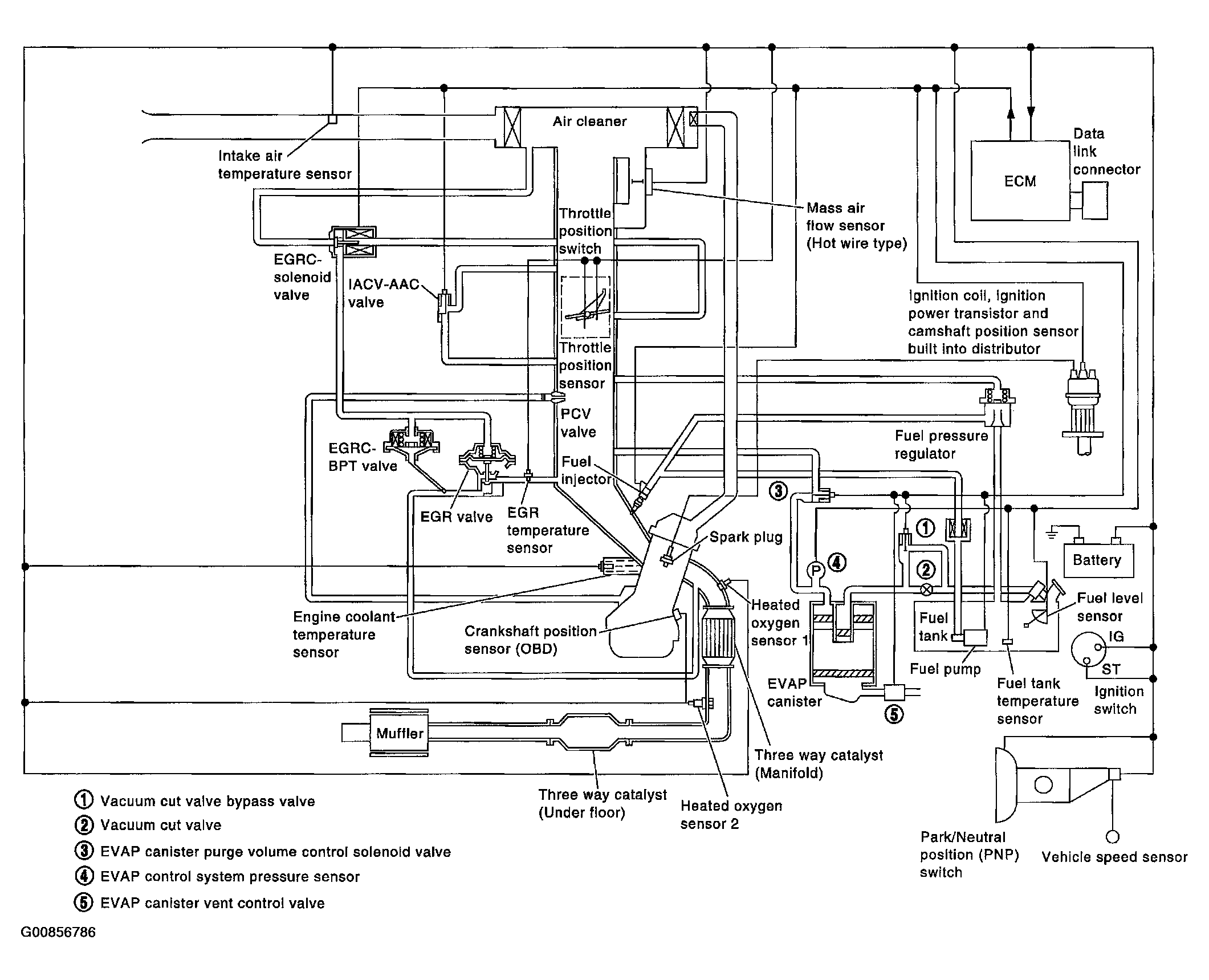

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
