Generic Scan Tool (GST): Function

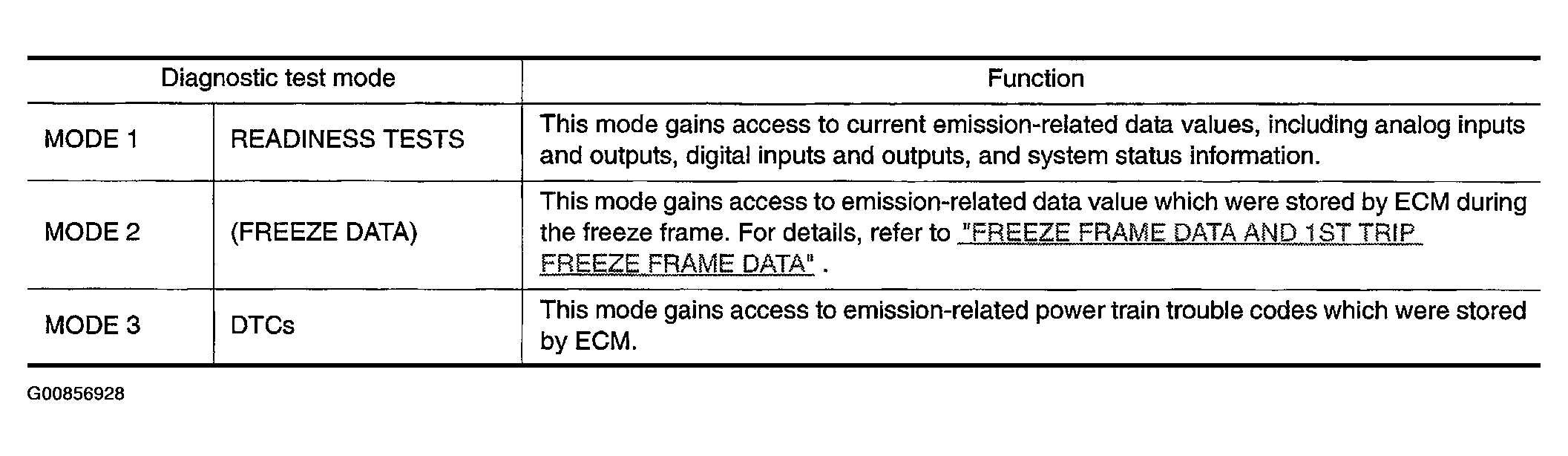

Fig 1: Function Chart (1 Of 2)
G00856928Courtesy of NISSAN MOTOR CO., U.S.A.

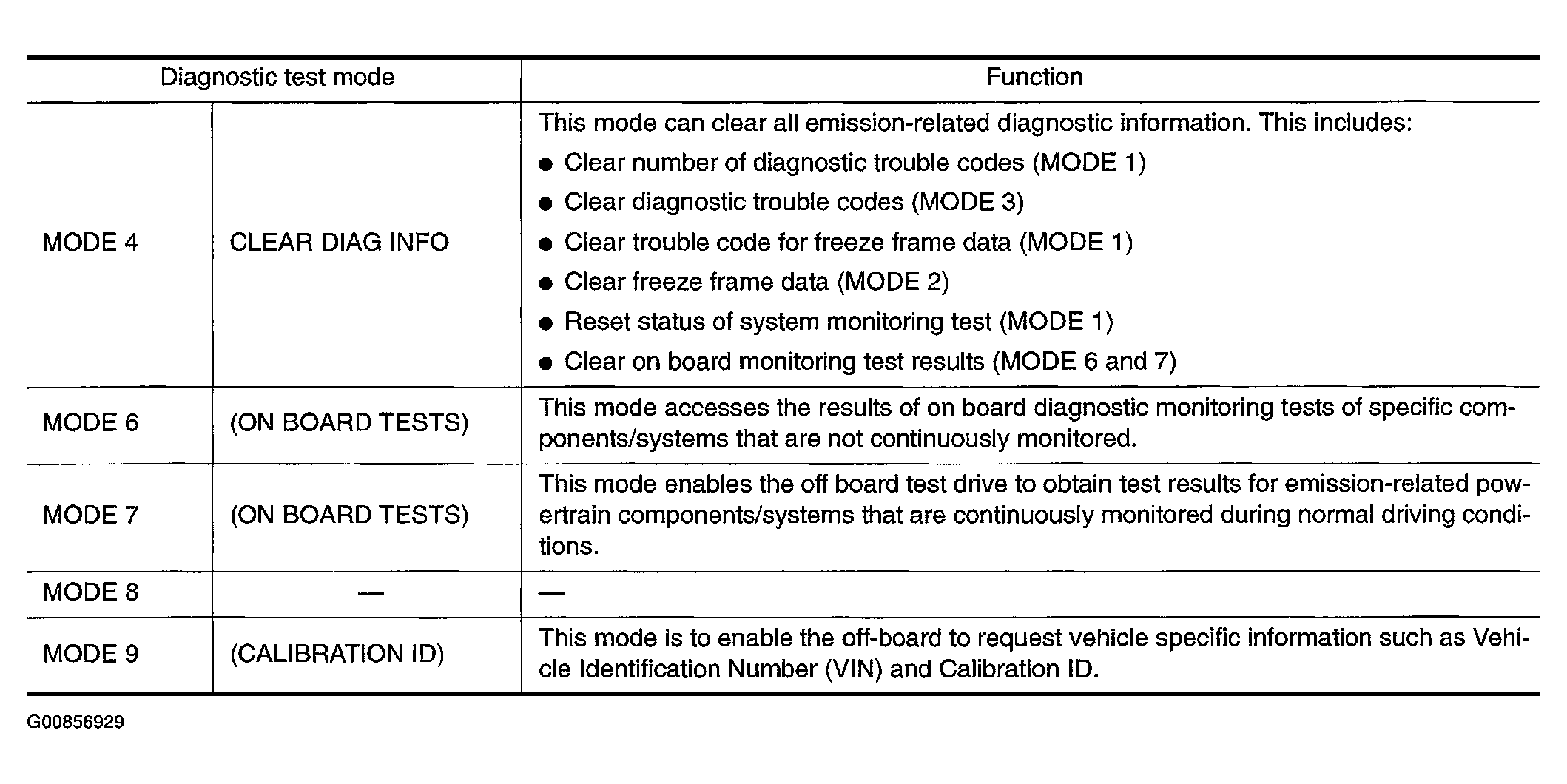

Fig 2: Function Chart (2 Of 2)
G00856929Courtesy of NISSAN MOTOR CO., U.S.A.
