Summary Chart

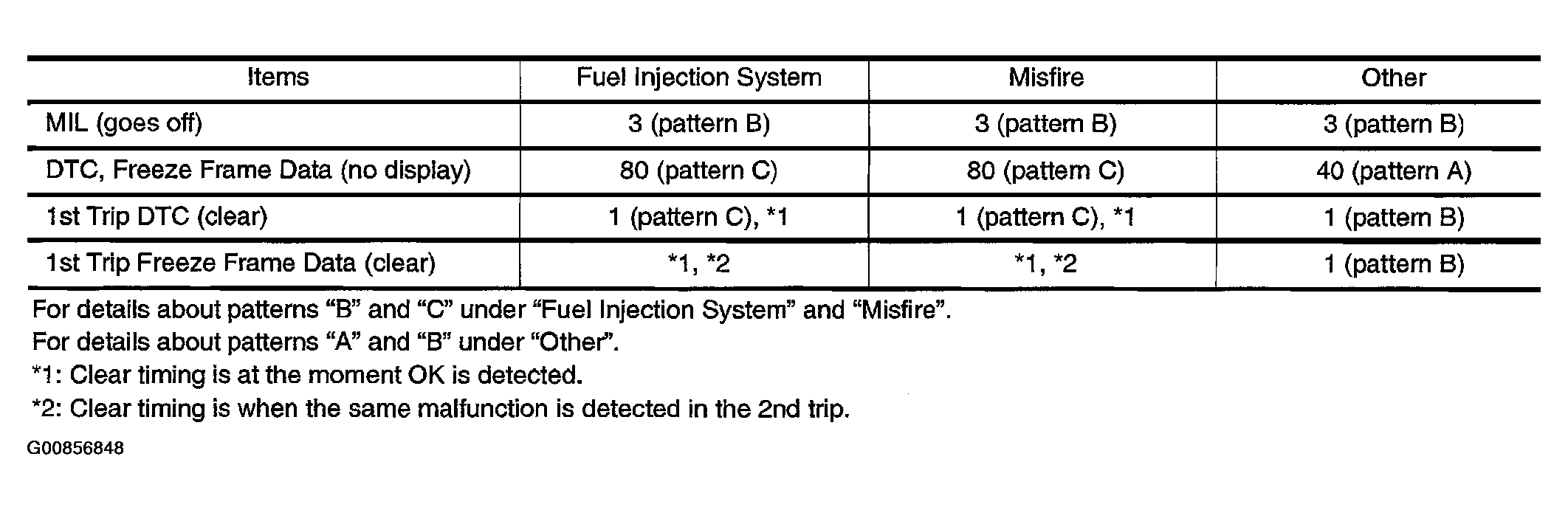

Fig 1: Summary Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

For details about patterns "B" and "C" under "Fuel Injection System" and "Misfire", see EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE L < EXHAUST QUALITY DETERIORATION > ", "FUEL INJECTION SYSTEM" .

For details about patterns "A" and "B" under "Other", see EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE < EXHAUST QUALITY DETERIORATION > ", "FUEL INJECTION SYSTEM" .

*1: Clear timing is at the moment OK is detected.

*2: Clear timing is when the same malfunction is detected in the 2nd trip.
