Engine Fuel & Emission Control System: Notes

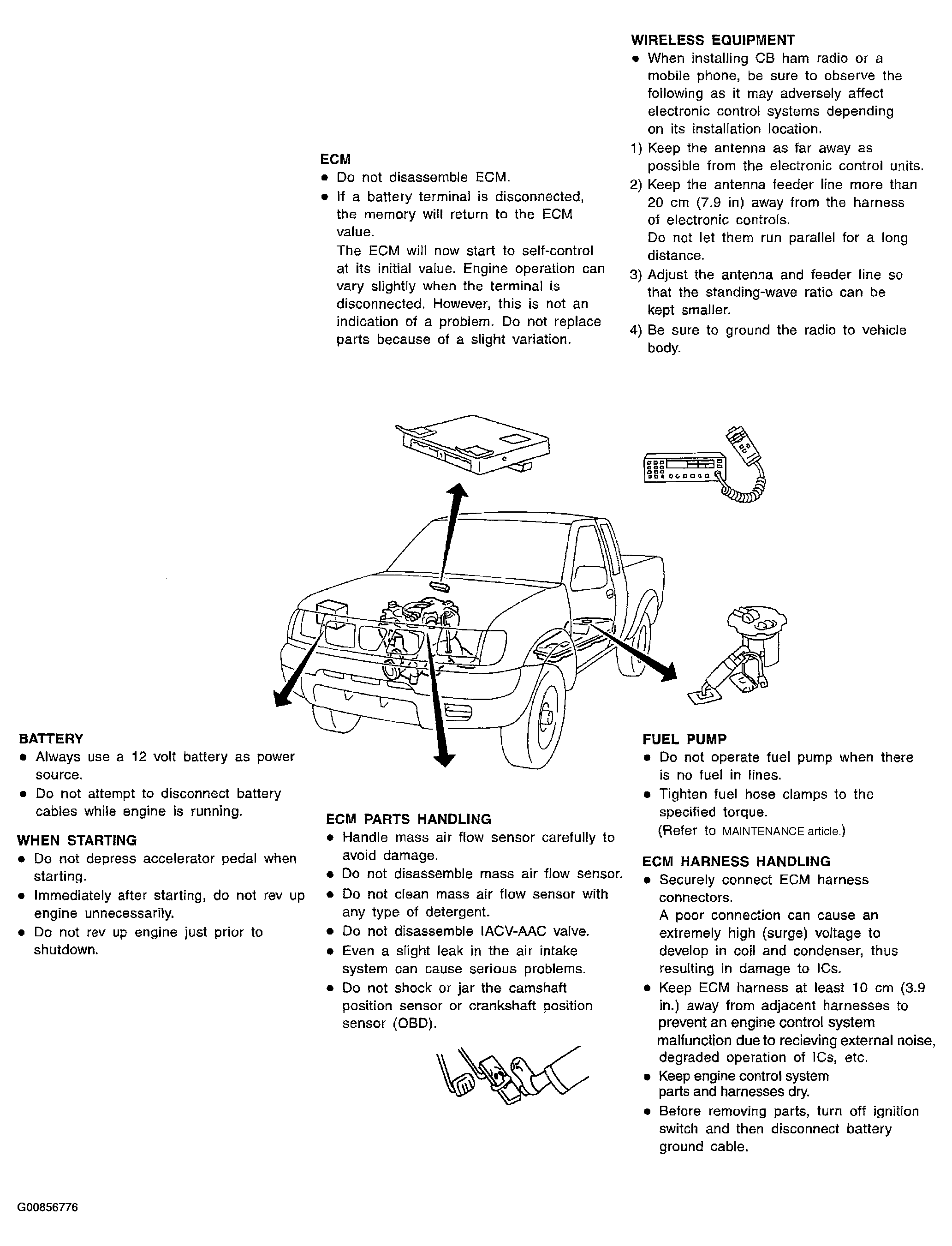

Fig 1: Identifying Engine Fuel & Emission Control System
G00856776Courtesy of NISSAN MOTOR CO., U.S.A.
