Fuel Tank Temperature Sensor

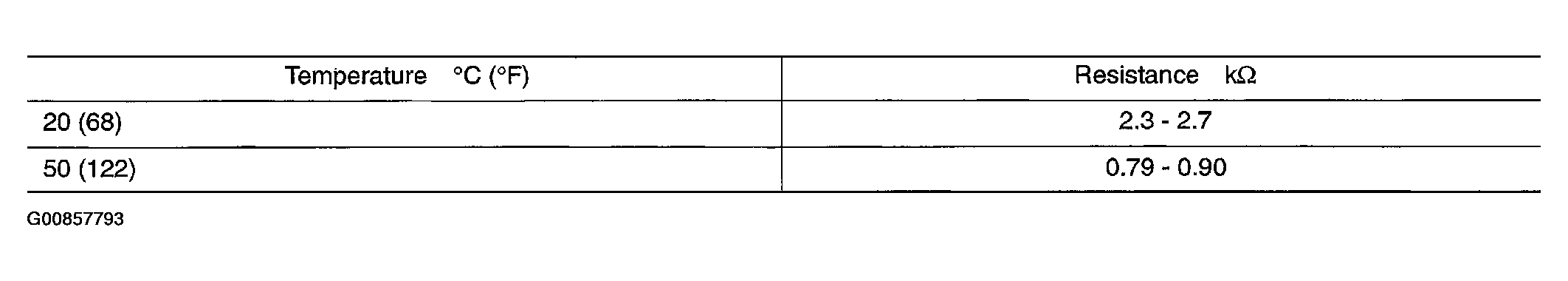

Fig 1: Fuel Tank Temperature Sensor Voltage Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
