ASCD Clutch Switch (For M/T Models)

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

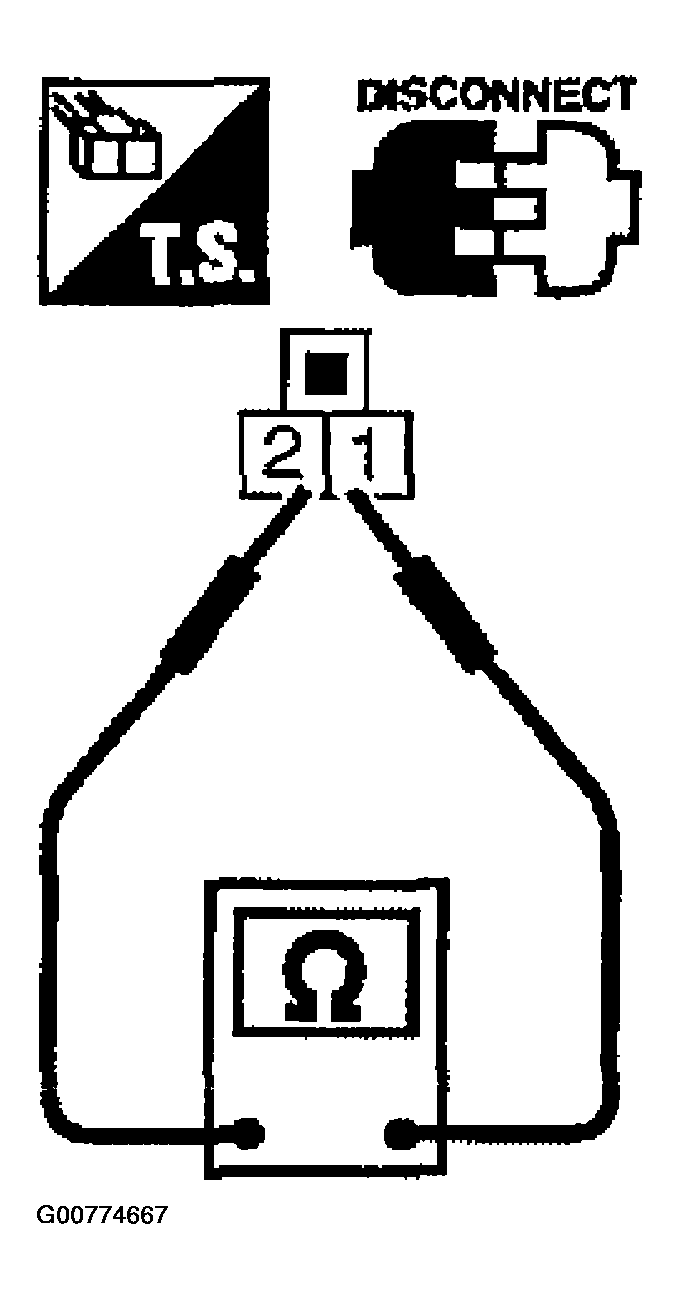

Fig 1: Checking Continuity Between ASCD Clutch Switch Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD clutch switch installation, refer to CLUTCH SYSTEM and perform step 3 again.

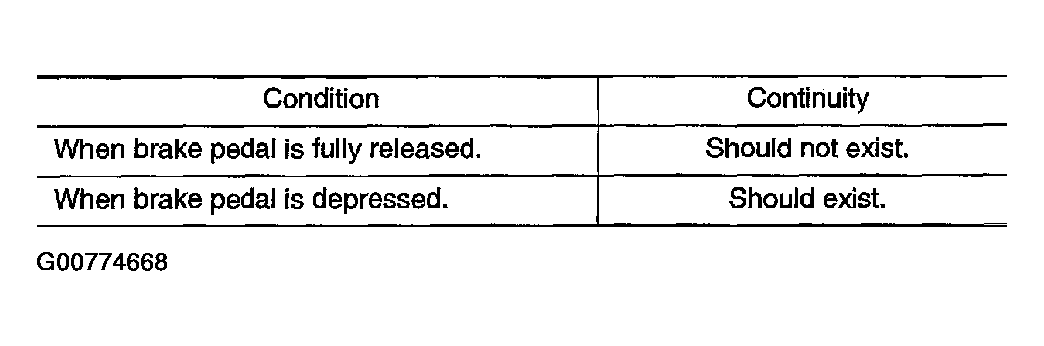

Fig 2: Stop Lamp Switch Terminals 1 And 2 Continuity Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
