ASCD Indicator: Wiring Diagram

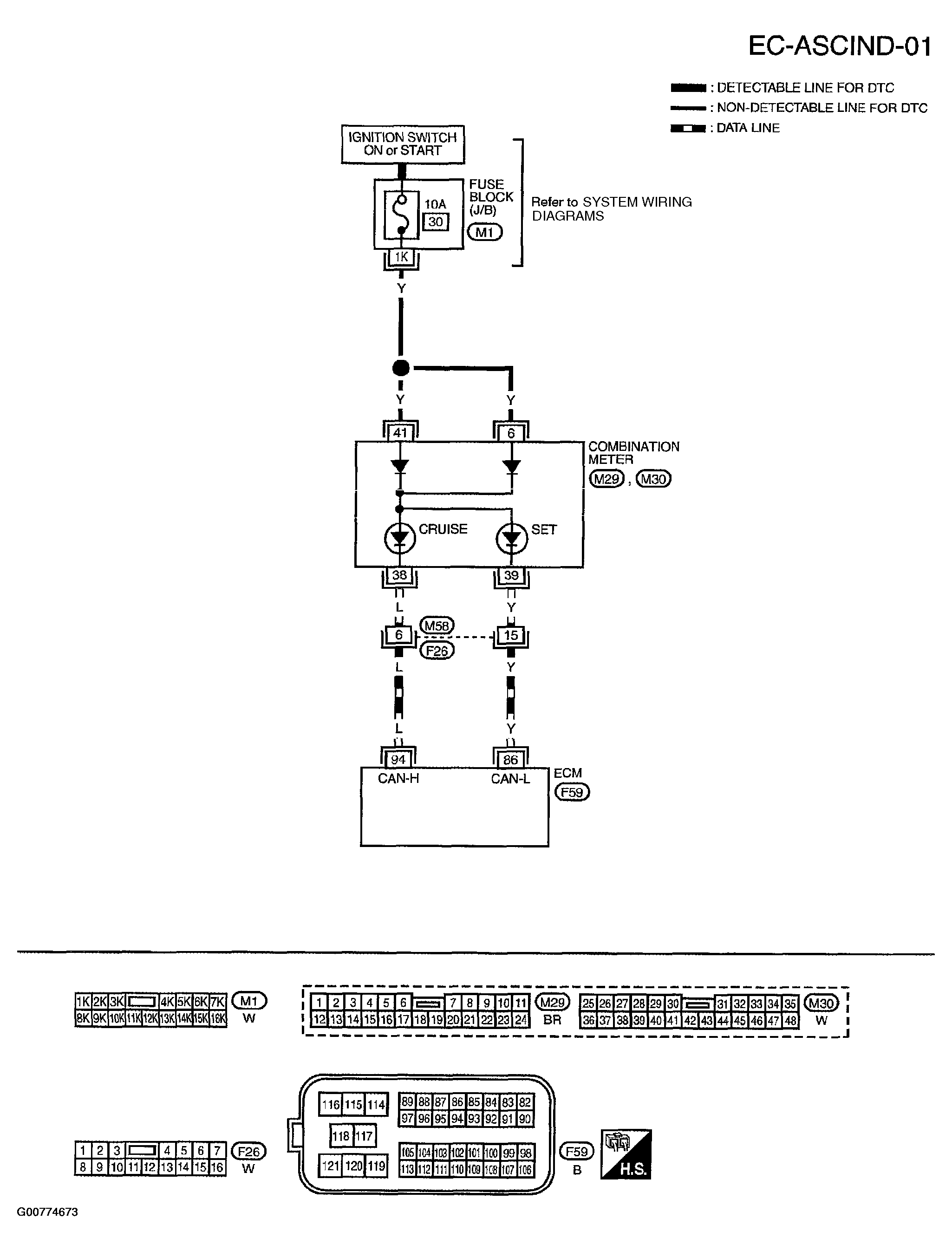

Fig 1: Wiring Diagram - Combination Meter

G00774673

Courtesy of NISSAN MOTOR CO., U.S.A.
